Home >> Pontiac >> 1986 >> Firebird L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> With Subwoofer Amplifier

With Subwoofer Amplifier

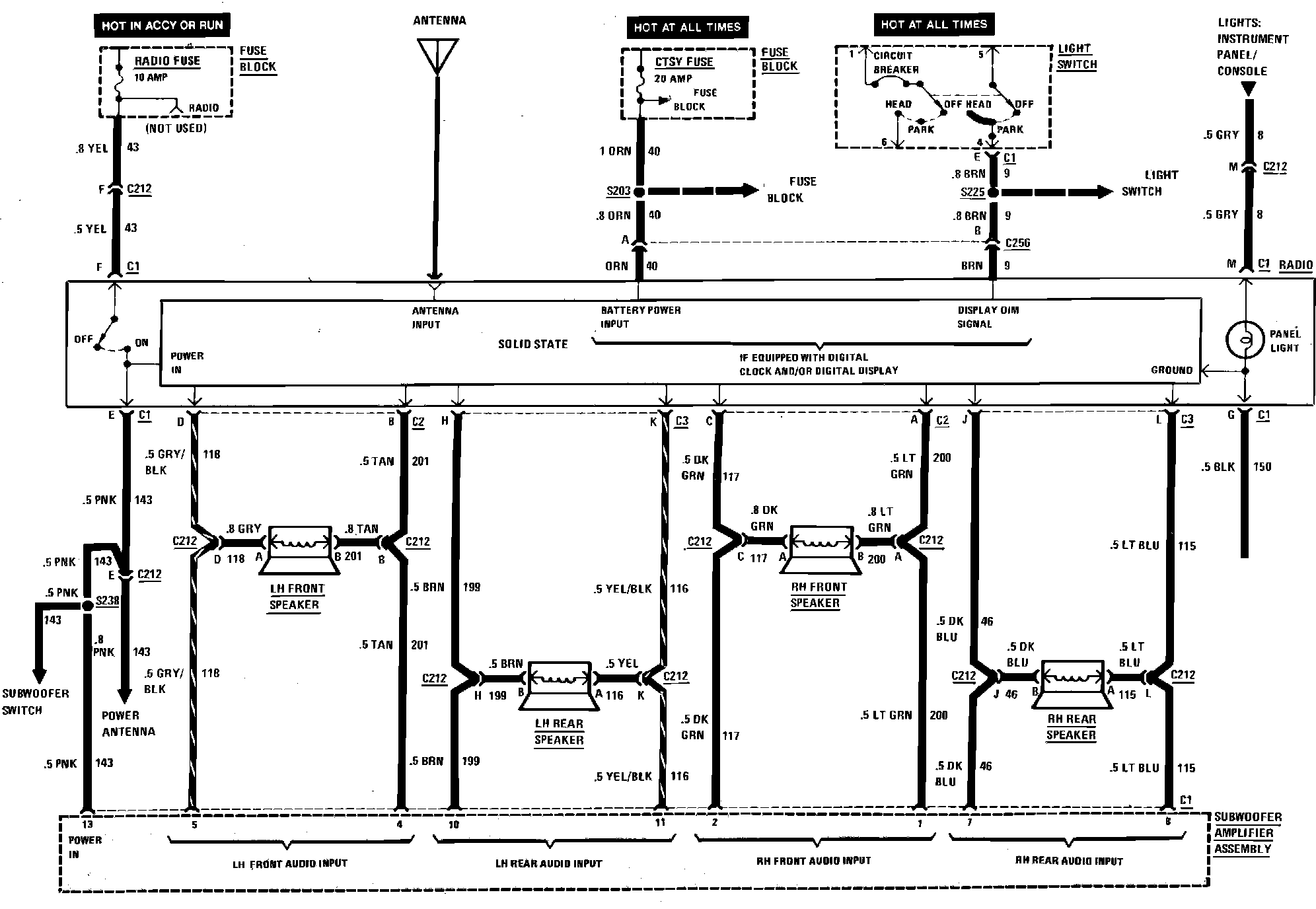

Radio Wiring Circuit (Part 1 of 2). W/Subwoofer Amplifier:



Radio Wiring Circuit With Sub-Woofer Amplifier:
