Fog Lamp Relay

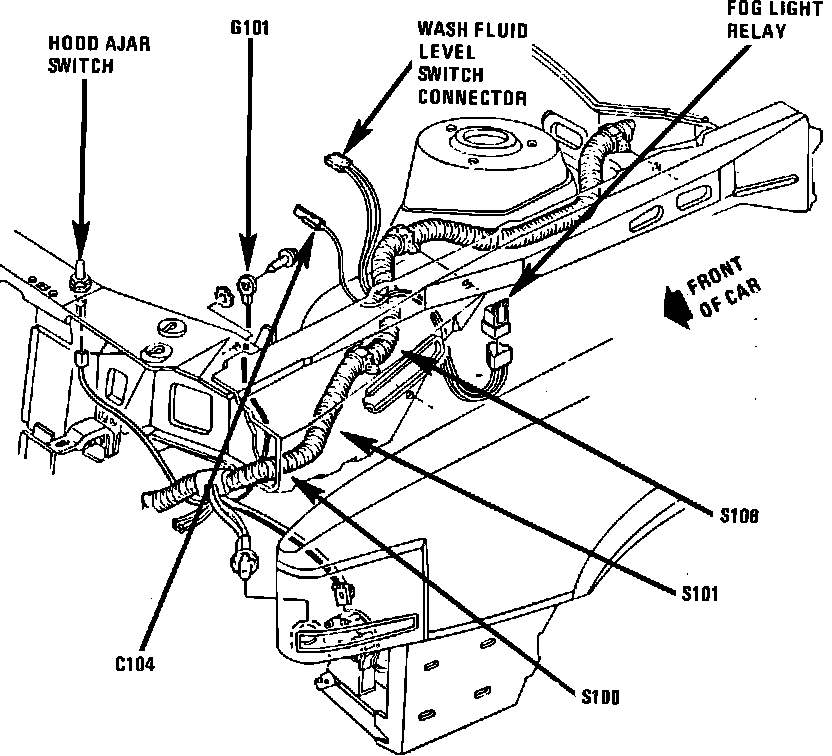

Fog Lamp Relay
LH Front Corner Of Engine Compartment.:
LH Inner Fender Panel On Front Of Shock Tower
Applicable to: 1986 Grand Am
