Grounds, Injector, Power, Service Engine Soon Light
Grounds, Injector, Power, Service Engine Soon Light

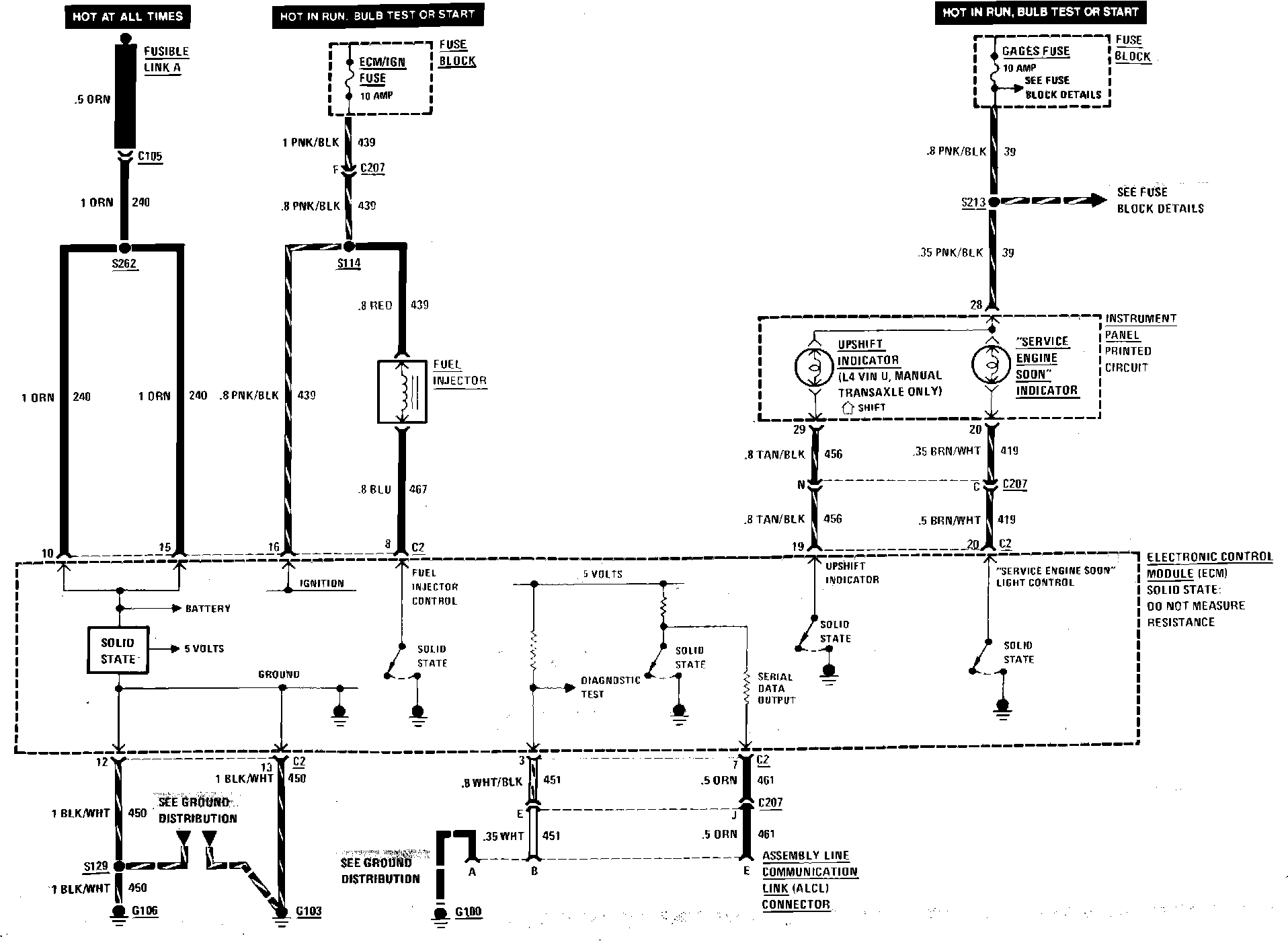

Throttle Body Fuel Injection Wiring Circuit (Grounds, Injector, Power, Service Engine Soon Light):
