Lights

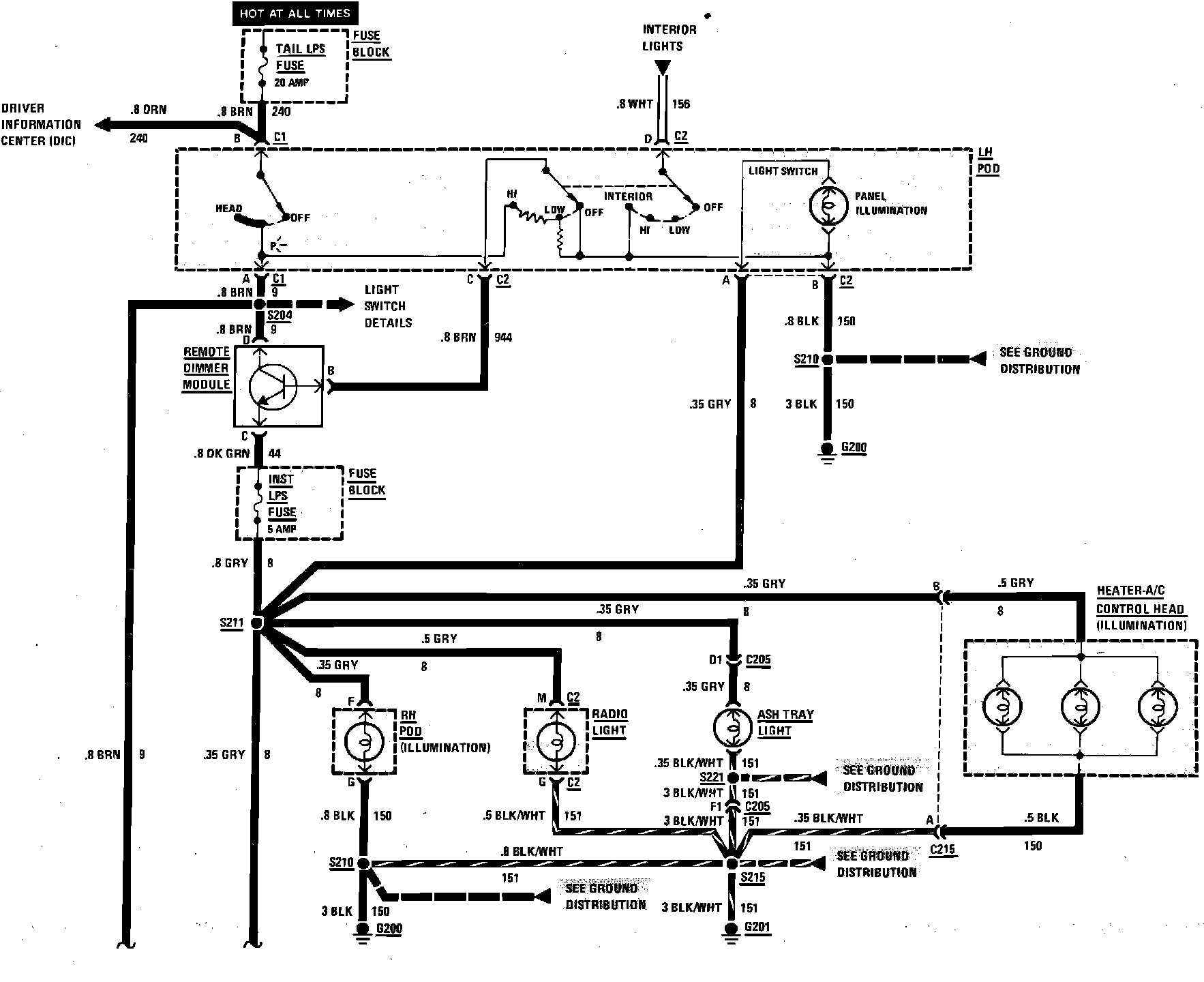

Instrument Panel Wiring Circuit (Lights, Part 1 Of 2):



Instrument Panel Wiring Circuit (Lights, Part 2 Of 2):
