(Hazard, Stop, Turn, Part 2 of 3) W/Lamp Monitor

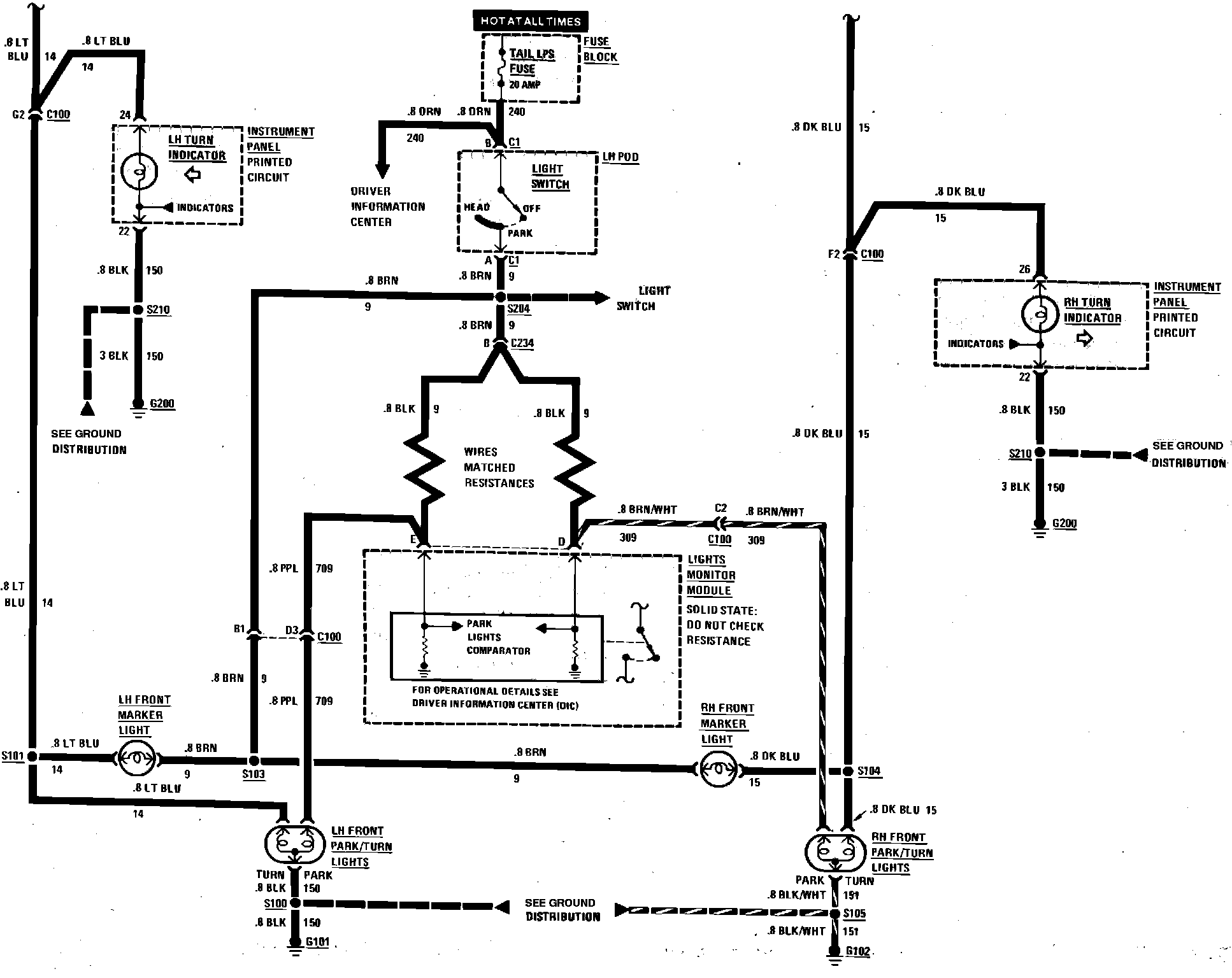

Front Marker, Hazard, Park, Stop & Turn Lamps Wiring Circuit:
