(Hazard, Stop, Turn, Part 3 of 3) W/Lamp Monitor
(Hazard, Stop, Turn, Part 3 of 3) W/Lamp Monitor

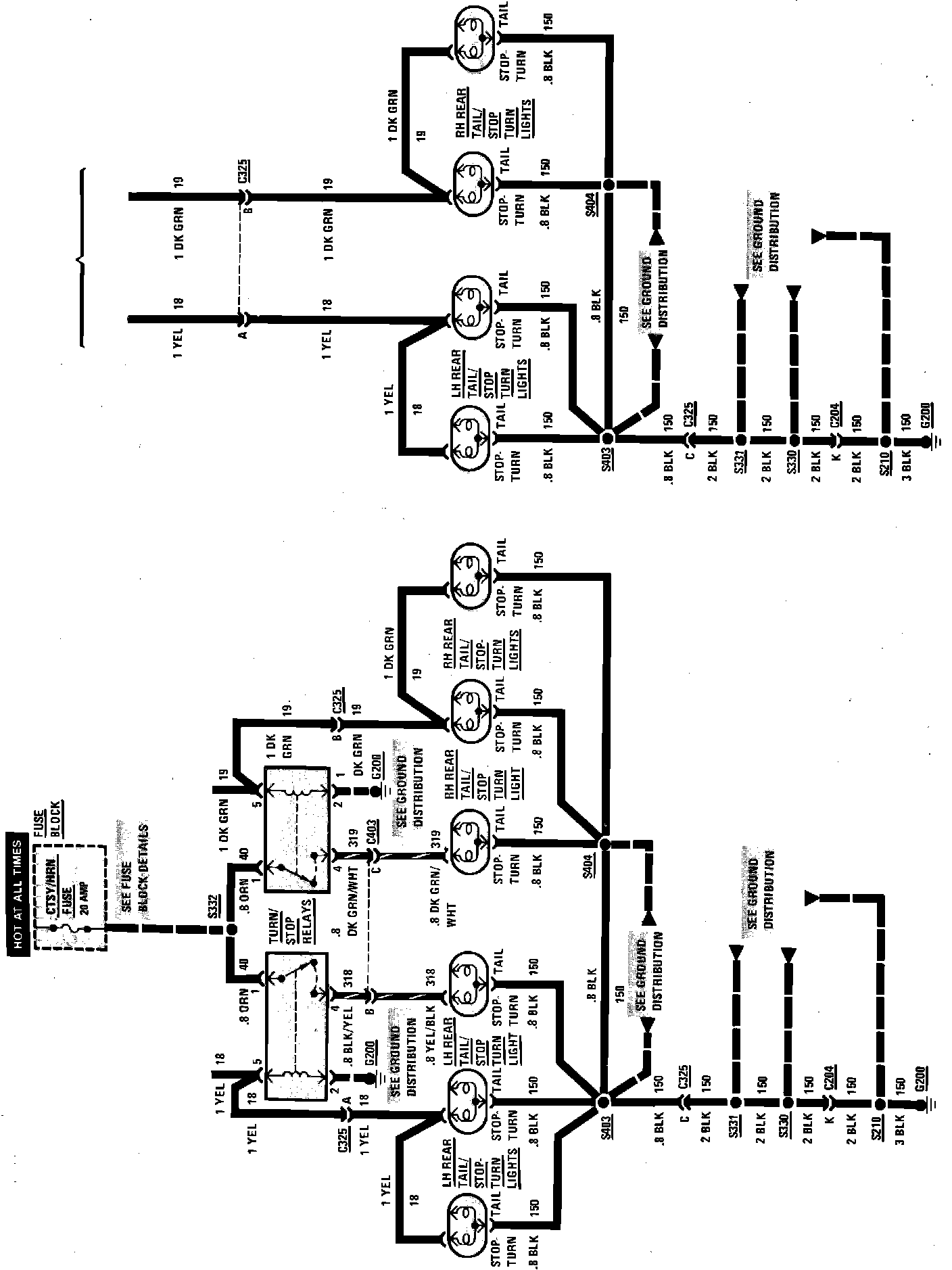

Front & Rear Lighting Wiring Circuit (Hazard, Stop, Turn, Part 3 Of 3) W/Lamp Monitor:
