Drive Axle Tri-Pot Seal Clamp - Usage, Service
Number 86-4-1A Date 11/86Subject: DRIVE AXLE TRI-POT SEAL CLAMP USAGE
1986 4-CYLINDER NON TURBO SUNBIRD VEHICLES
INBOARD AXLE JOINT:
For the 1986 model year, a limited quantity of 4-cylinder, non-turbo Sunbird vehicles with both automatic and manual transaxles have been built using a low-profile, earless Tri-Pot seal retaining clamp on the left-hand inboard axle joint..

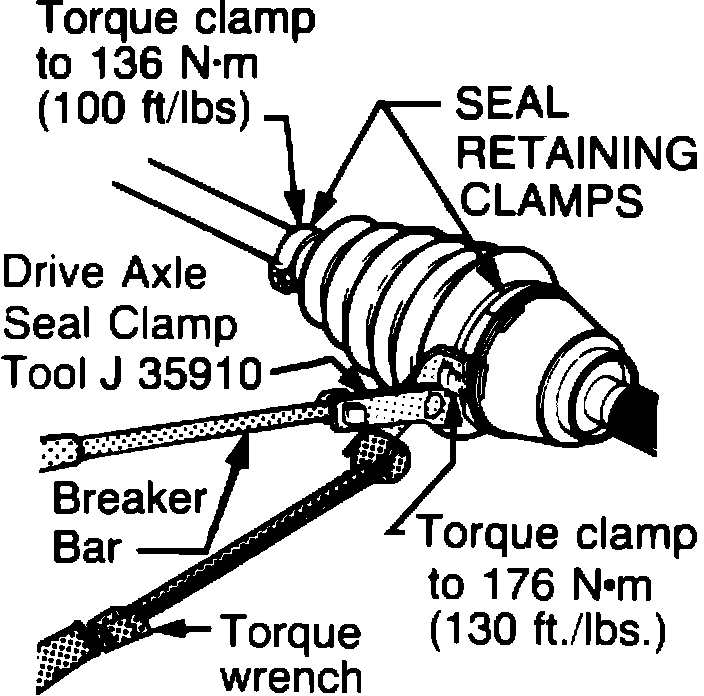

These assemblies may be serviced with Seal Service Kit Tri-Pot 7845350 (which contains standard clamp 7843226) using tool J 35910 Drive Axle Seal Clamp Pliers (refer to Figure 1).
