Firebird (Warranty & Non-Warranty)

1986 PONTIAC 'F' FIREBIRDLiquid Crystal Display Instrument Cluster:

1. BASE TELLTALE & GAGE PACKAGE CLUSTERS

All instrument cluster components except the speedometer and tachometer will continue to be serviced by the car dealer. Replacement parts should be obtained through WDDGM. The speedometer and tachometer must be serviced only through AC-Delco authiorized service centers. See dealer bulletin 86-SM 4@A and 86-SM-10A for policy and warranty information.

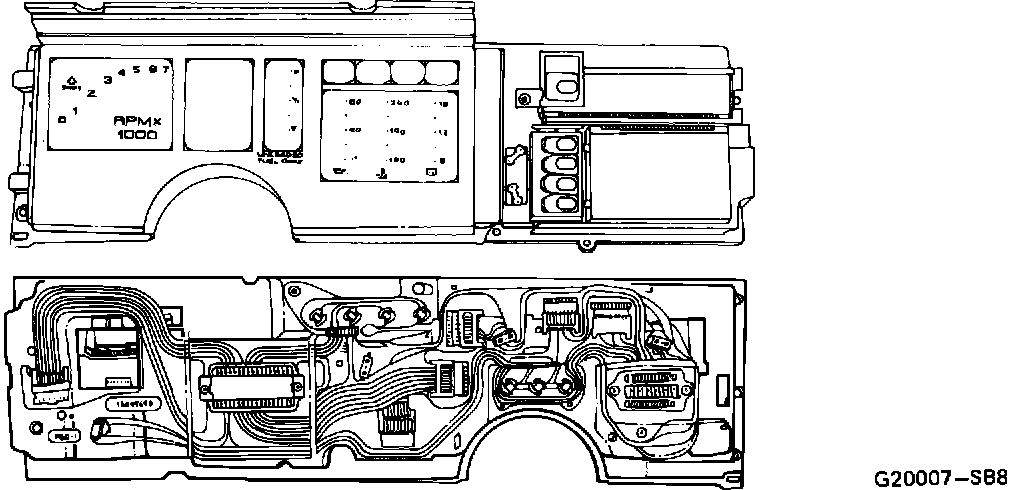

2. ELECTRONIC CLUSTERS (Liquid Crystal Display - available after January 1986)

The entire cluster assembly is serviced only by an exchange cluster. There are no serviceable parts. The entire suspect cluster should be returned only to an authorized AC-Delco service center.

EXCHANGE UNIT DESCRIPTION
United States

25084599 6 Cylinder
25084601 8 Cylinder Auto. Trans.
25084602 8 Cylinder Auto. Trans.

Canada
25084603 6 Cylinder
25084605 8 Cylinder

Exchange unit consists of complete instrument cluster less non-volatile memory odometer module. (Module remains with vehicle).

FIREBIRD SPEEDOMETERS:

3. FIREBIRD SPEEDOMETERS (Quartz-Electric motor driven)

These are made by Nippondenso but are serviced only through AC-Delco authorized service centers. See dealer service bulletin 86-SM-IOA for policy and warranty information.

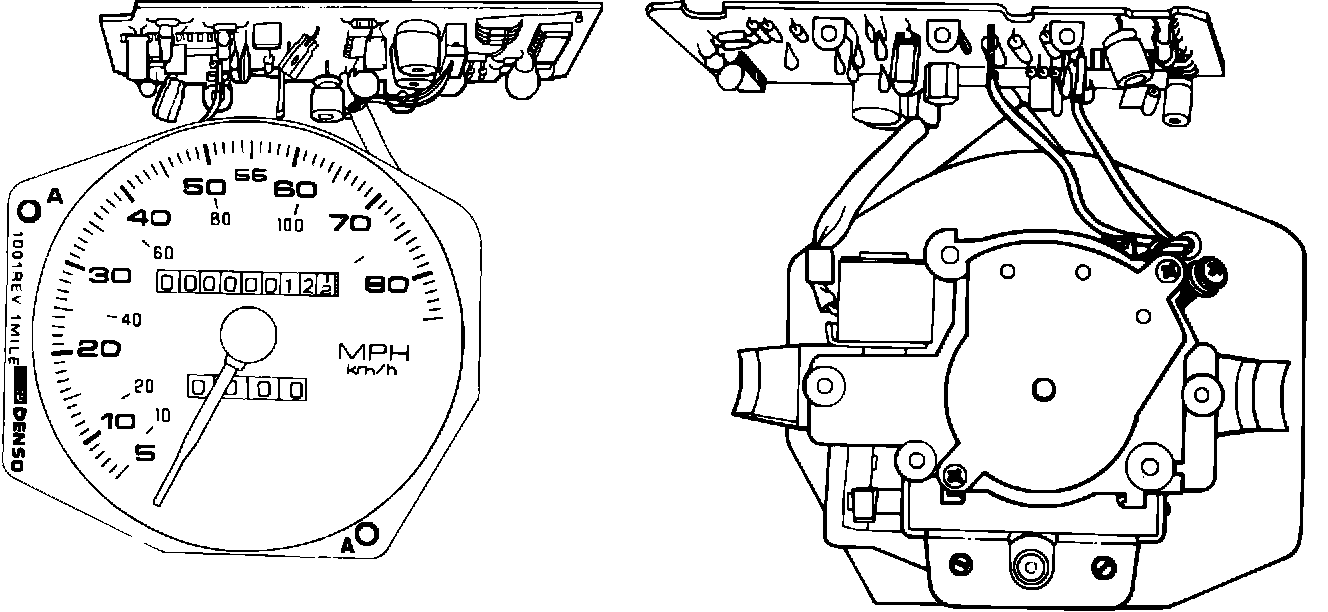

1986 PONTIAC 'F' FIREBIRD Quartz Speedometer


EXCHANGE UNIT DESCRIPTION

25059470 U.S. 85 m.p.h.
25059471 Canada 140 k.p.h.
25059473 U.S. 140 m.p.h.
25059474 Canada 220 k.p.h.
25059475 Export 220 k.p.h.

The exchange unit consists of mechanism and circuit board, odometers, and motor.

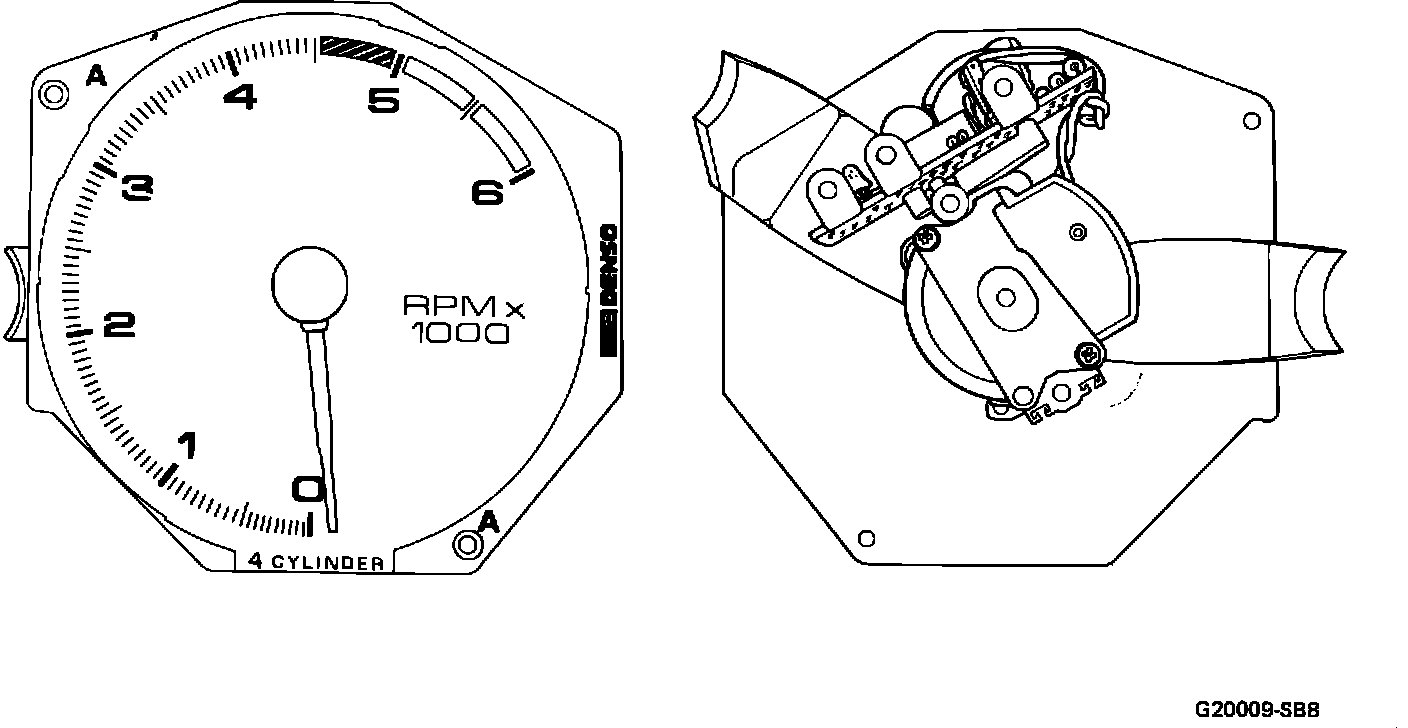

1986 PONTIAC "F" FIREBIRD Tachometer:

4. FIREBIRD TACHOMETERS
EXCHANGE UNIT DESCRIPTION

25059476 All 4 Cylinder
25059477 All 6 Cylinder
25059478 All 8 Cylinder - 6000 r.p.m.
25059479 All 8 Cylinder - 8000 r.p.m.

The exchange unit consists of mechanism and circuit board.

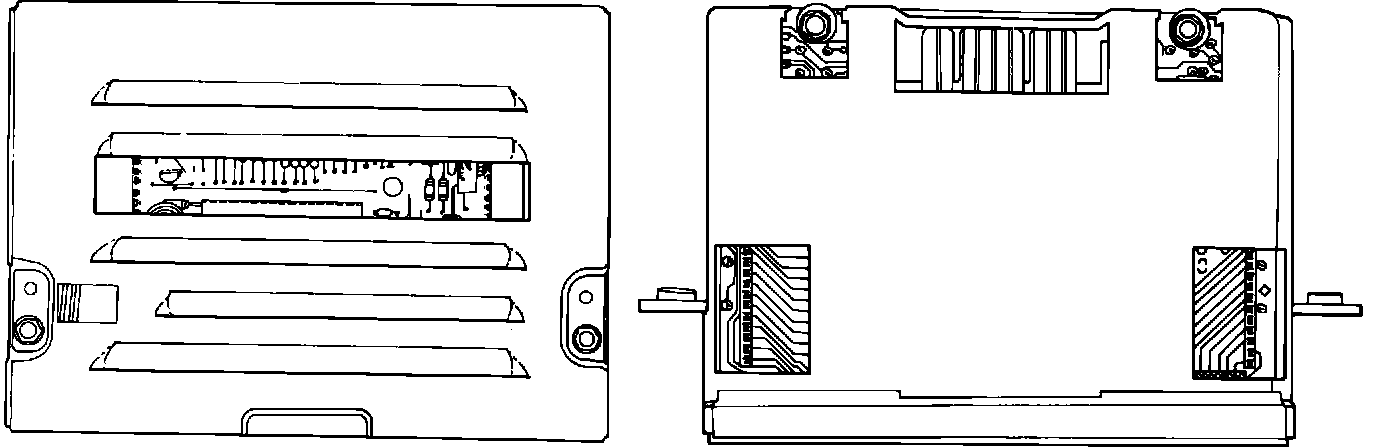

1985 PONTIAC 'F' FIREBIRD Driver Inforamtion Center:

5. FIREBIRD D.I.C.
D.I.C. exchange unit is 25084606. It is available only thru
Specmo Instrument Service.

NOTE: Kent-Moore Tool #J-33431-B, Signal Generator and Instrument Panel Tester will aid in the diagnosis of speedometer, tachometer, fueZ economy displays, fuel level, oiL pressure and temperature, and coolant temperature gages and telltale displays. Electronic clusters can also be analyzed with this tool.
