Grand AM (Warranty & Non-Warranty)

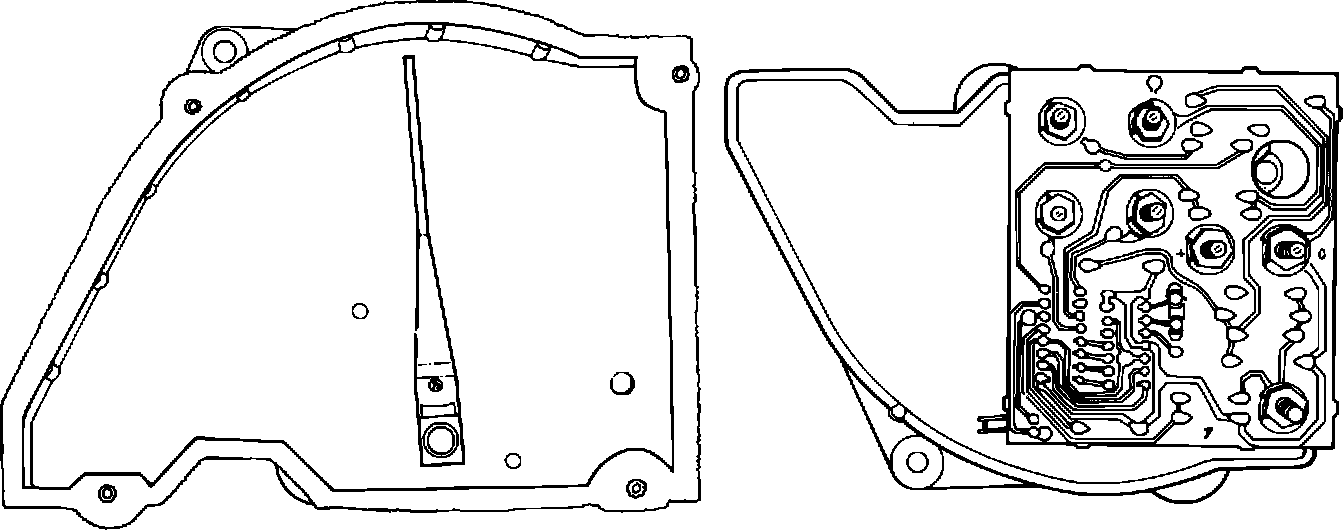

1986 PONTIAC "N" GRAND AM Quartz Speedometer:

1. BASE TELLTALE & GAGE PACKAGE CLUSTERS

All instrument cluster components except the speedometer and tachometer will continue to be serviced by the car dealer. Replacement parts should be obtained through WDDGM with the exception of the speedometer and tachometer, which must be serviced through AC-Delco authorized service centers. See dealer bulletin 86-SM-10A for policy and warranty information.

EXCHANGE UNIT DESCRIPTION

25058910 Speedometer, used only
w/electro-magnetic wheel odometer
06434135 Fuel Gage
25084671 Combination Gages
25059480 Speedometer, used only W/
liquid crystal display odometer

0 Electro-mechanical wheel odometer order replacements through WDDGM.

0 Exchange unit (speedometer) consists of mechanism and circuit board. (Odometer and motor or liquid crystal display odometer remain with vehicle.)
NOTE: Kent-Moore Tool #J-33431-B, signal generator and instrument panel tester, will aid in the diagnosis of speedometer, tachometer, fuel economy displays, fuel level, oil pressure and temperature, and coolant temperature gages and telltale displays. Electronic clusters can also be diagnosed with this tool.

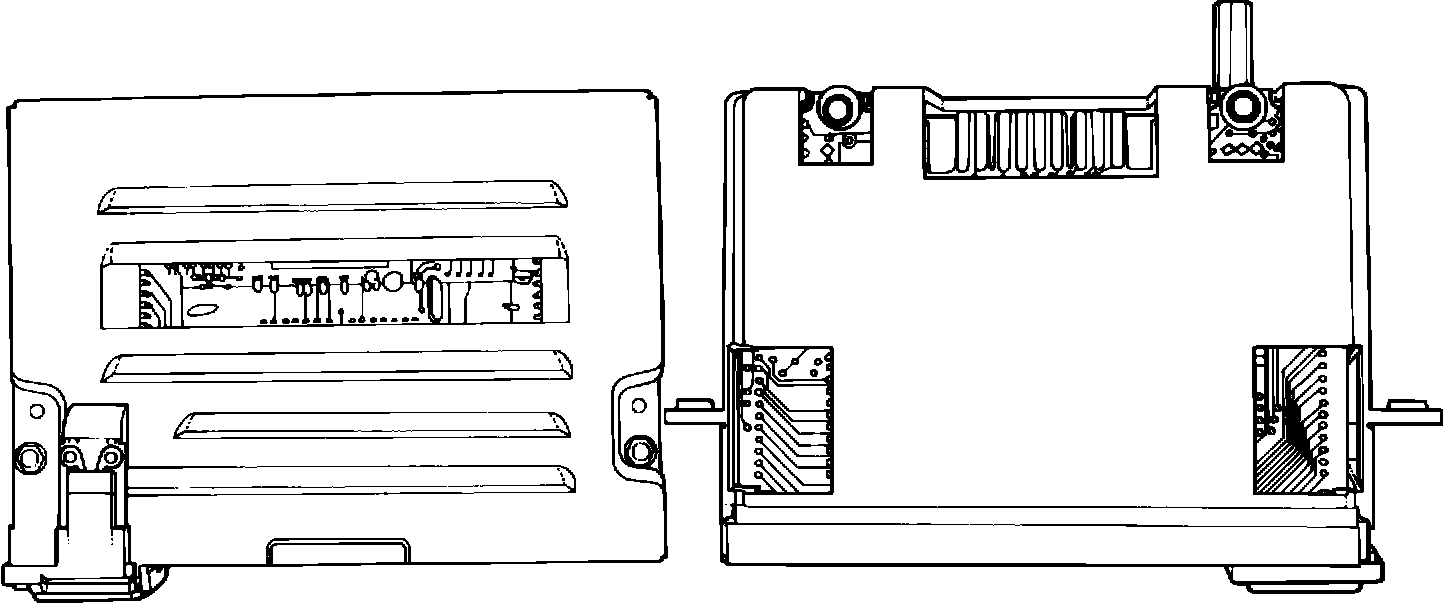

1986 PONTIAC "N" GRAND AM Driver Information Center:

2. GRAND AM D.I.C. (Available only by exchange through Specmo instrument Service.)
2 Door D.I.C. Exchange P.N. is 25084607 4 Door D.I.C. Exchange P.N. is 25073528
