Sunbird (Warranty & Non-Warranty)

1. BASE TELLTALE & GAGE PACKAGE CLUSTERS

All Instrument cluster components except the speedometer and tachometer will continue to be serviced by the car dealer. Replacement parts should be obtained through WDDGM with the exception of the speedometer and tachometer, which must be serviced through AC-Delco authorized service centers.

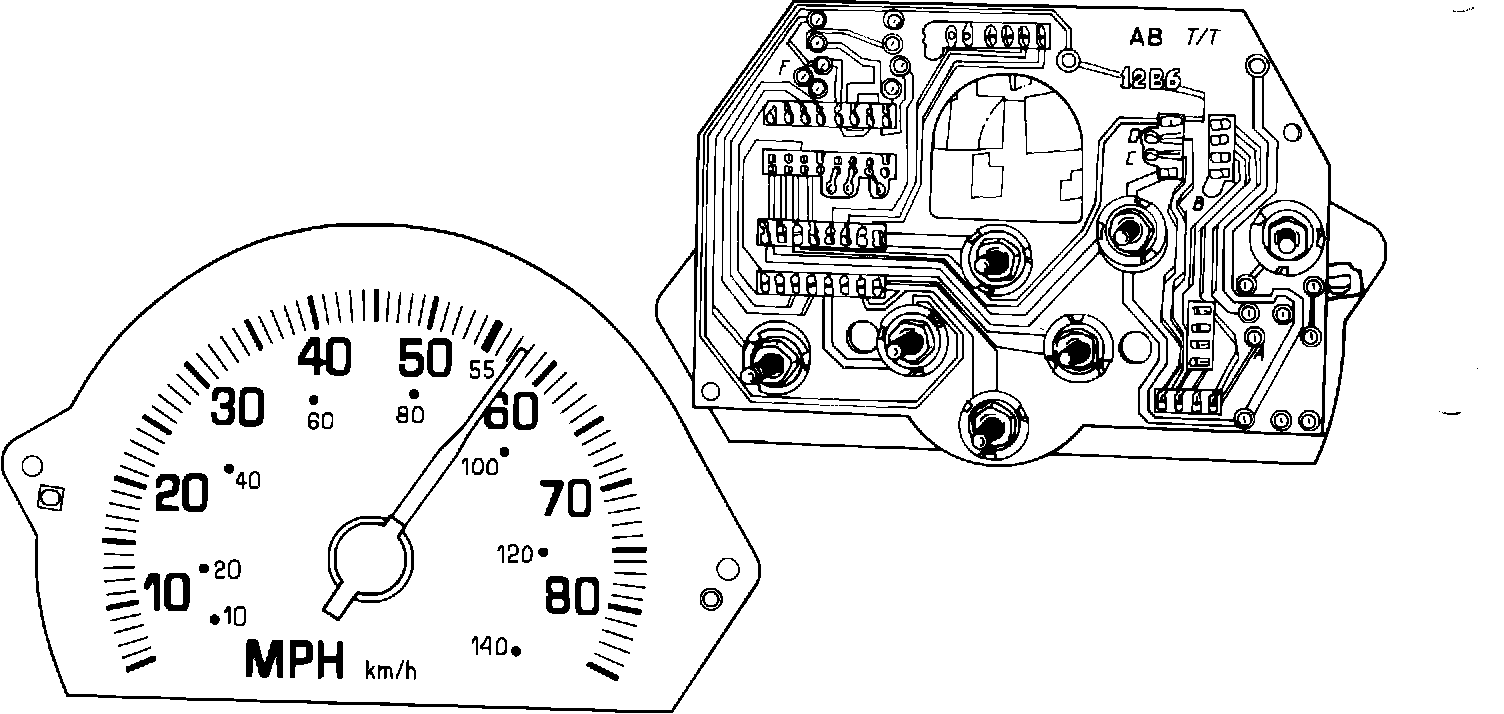

1986 PONTIAC "J" 2000 Quartz Speedometer:

2. SUNBIRD SPEEDOMETERS (Quartz - electric motor driven)

See dealer bulletin 86-SM-10A for policy and warranty
information.
EXCHANGE UNIT DESCRIPTION

25061383 Canada Turbo
25061384 Canada w/Tachometer
25061396 U.S. w/Tachometer
25061397 U.S. Turbo
25061406 U.S. Base
25061407 Canada Base
25061414 U.S. w/Trip Odometer

Exchange unit consists of mechanism and circuit board.
(Odometers and motors remain with vehicle, unless defective.)

1986 PONTIAC "J" 2000 Tachometer:

3. SUNBIRD TACHOMETERS
EXCHANGE UNIT DESCRIPTION

25061385 All Non-Turbo
25061388 Canada Turbo
25061389 U.S. Turbo

Exchange unit consists of mechanism and circuit board.

NOTE: Kent-Moore Tool #J-33431-B, signal generator and instrument panel tester, will aid in the diagnosis of speedometer, tachometer, fuel economy displays, fuel level, oil pressure and temperature, and coolant temperature gages and telltale displays. Electronic clusters can also be diagnosed with this tool.
