Brake Warning Indicator
>>
Exc. Wagon Less Power Master Brake System
Exc. Wagon Less Power Master Brake System

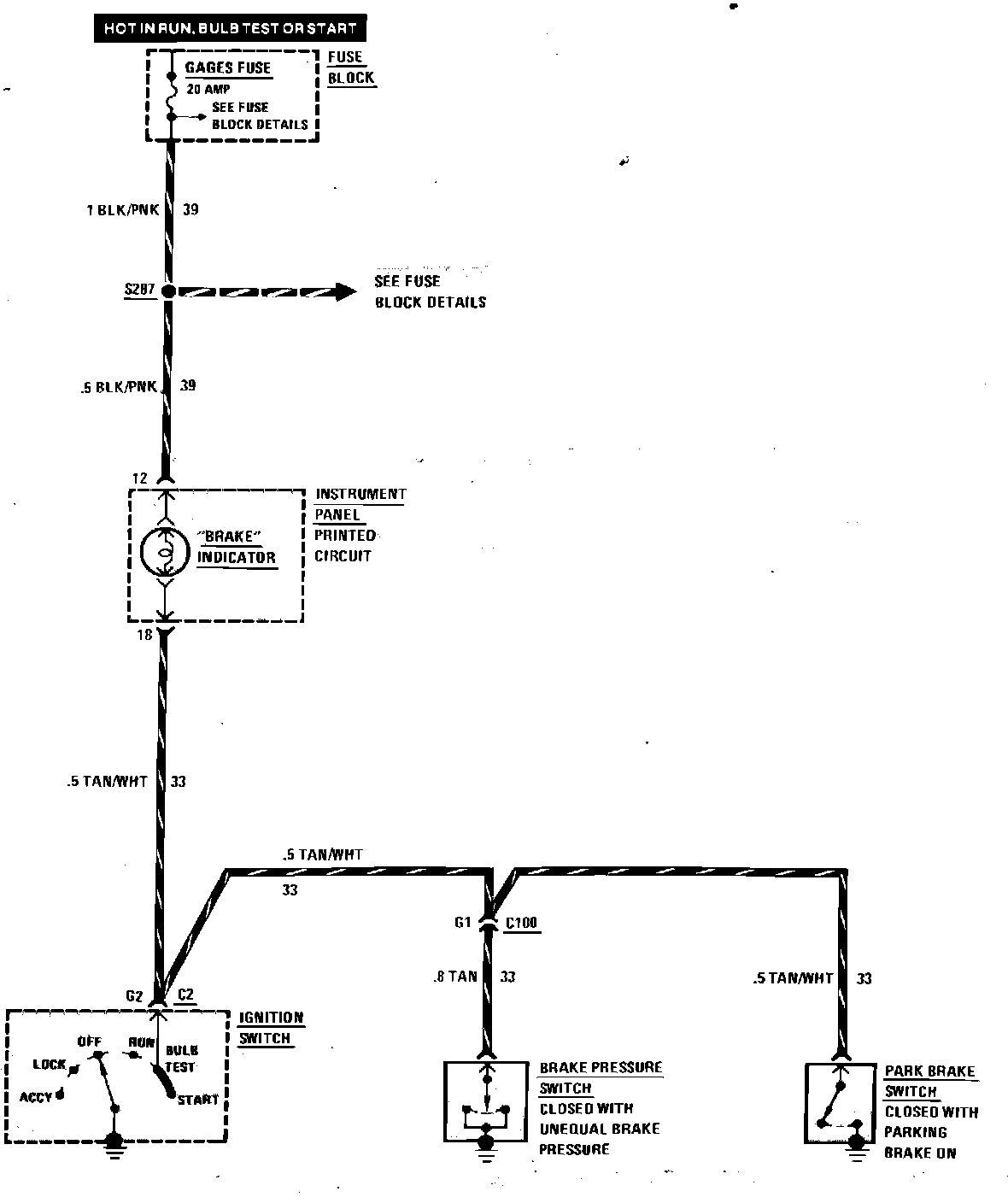

Brake Warning System Wiring Circuit:
