Home
>>
Pontiac
>>
1986
>>
Parisienne V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
Right Side
Right Side

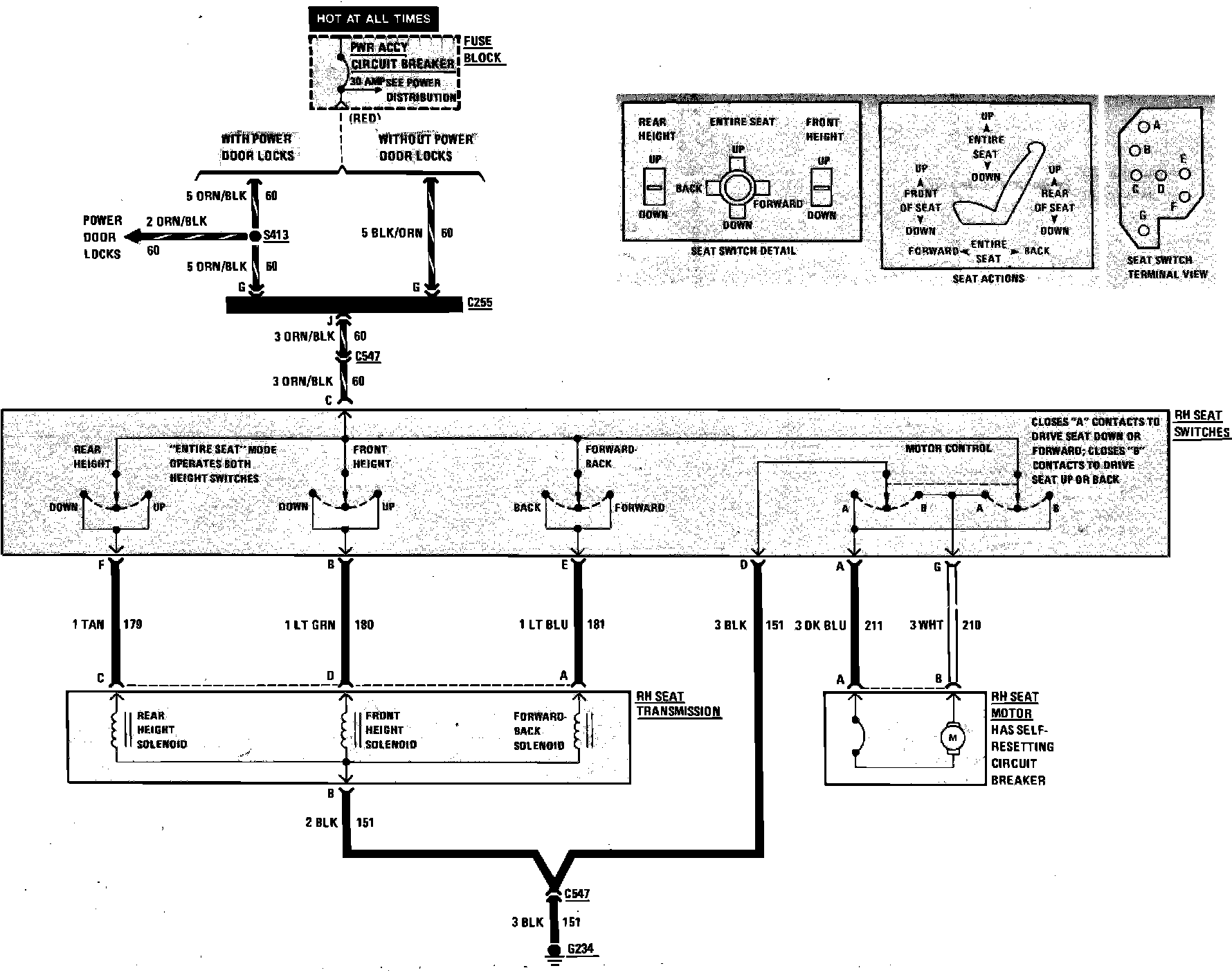

Power Seat Wiring Circuit (Right Hand Seat):
