Radiator Cooling Fan Motor
>>
W/Heavy Duty Cooling System
W/Heavy Duty Cooling System

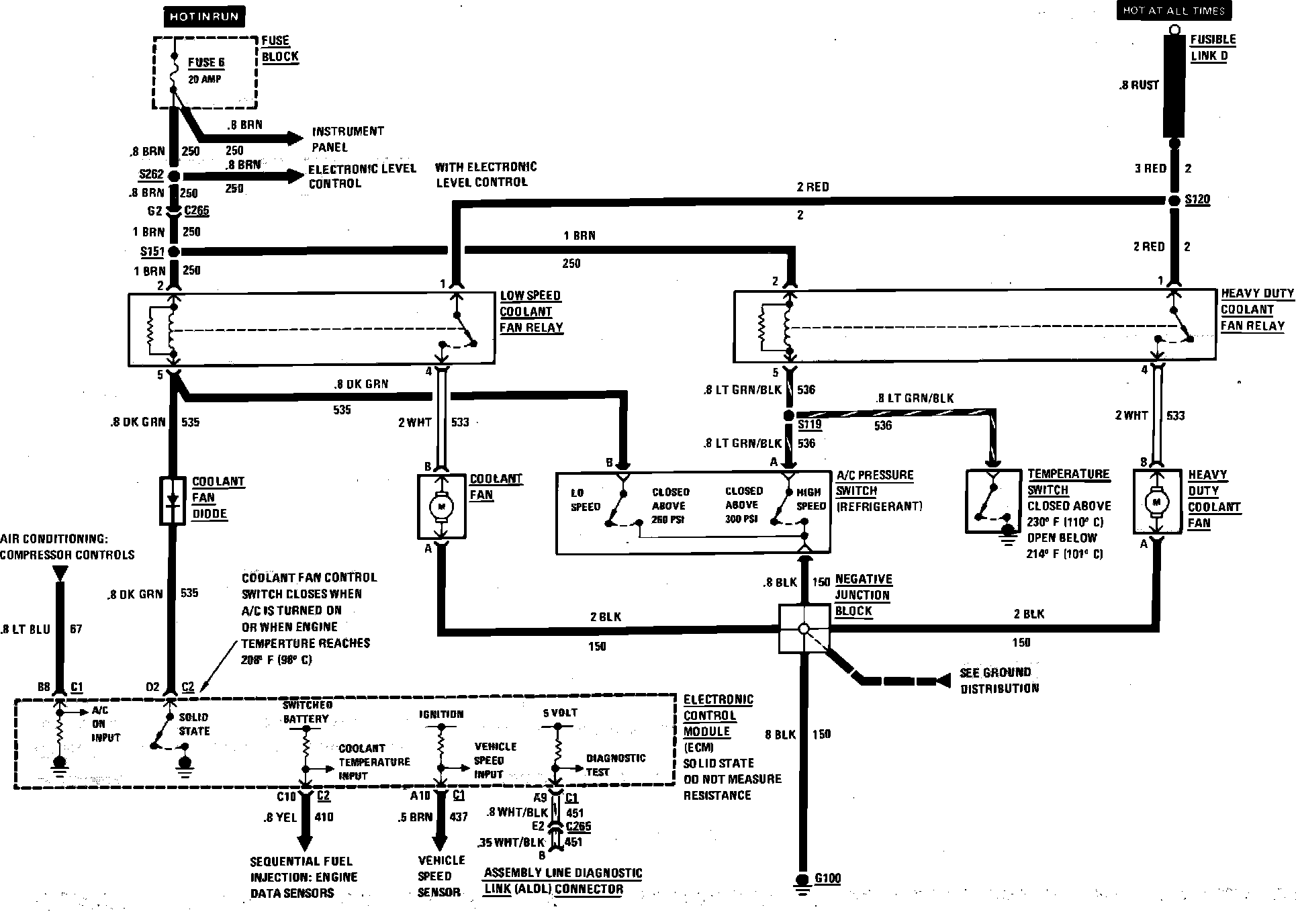

Coolant Fan Wiring Circuit (W/Heavy Duty Coolant System):
