Radio, Stereo, and Compact Disc
>>
With Subwoofer Amplifier
With Subwoofer Amplifier

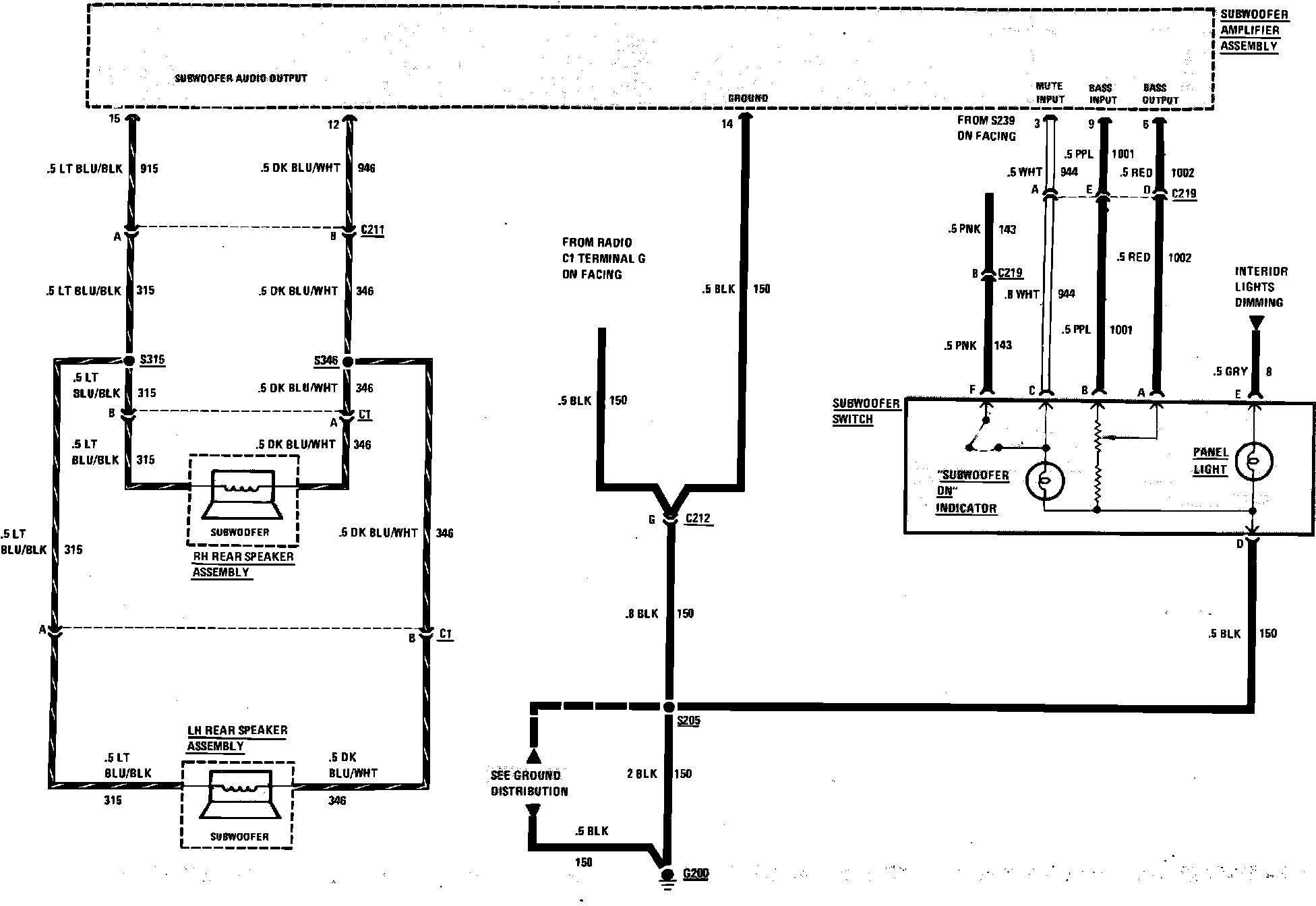

Radio Wiring Circuit W/Subwoofer Amplifier:

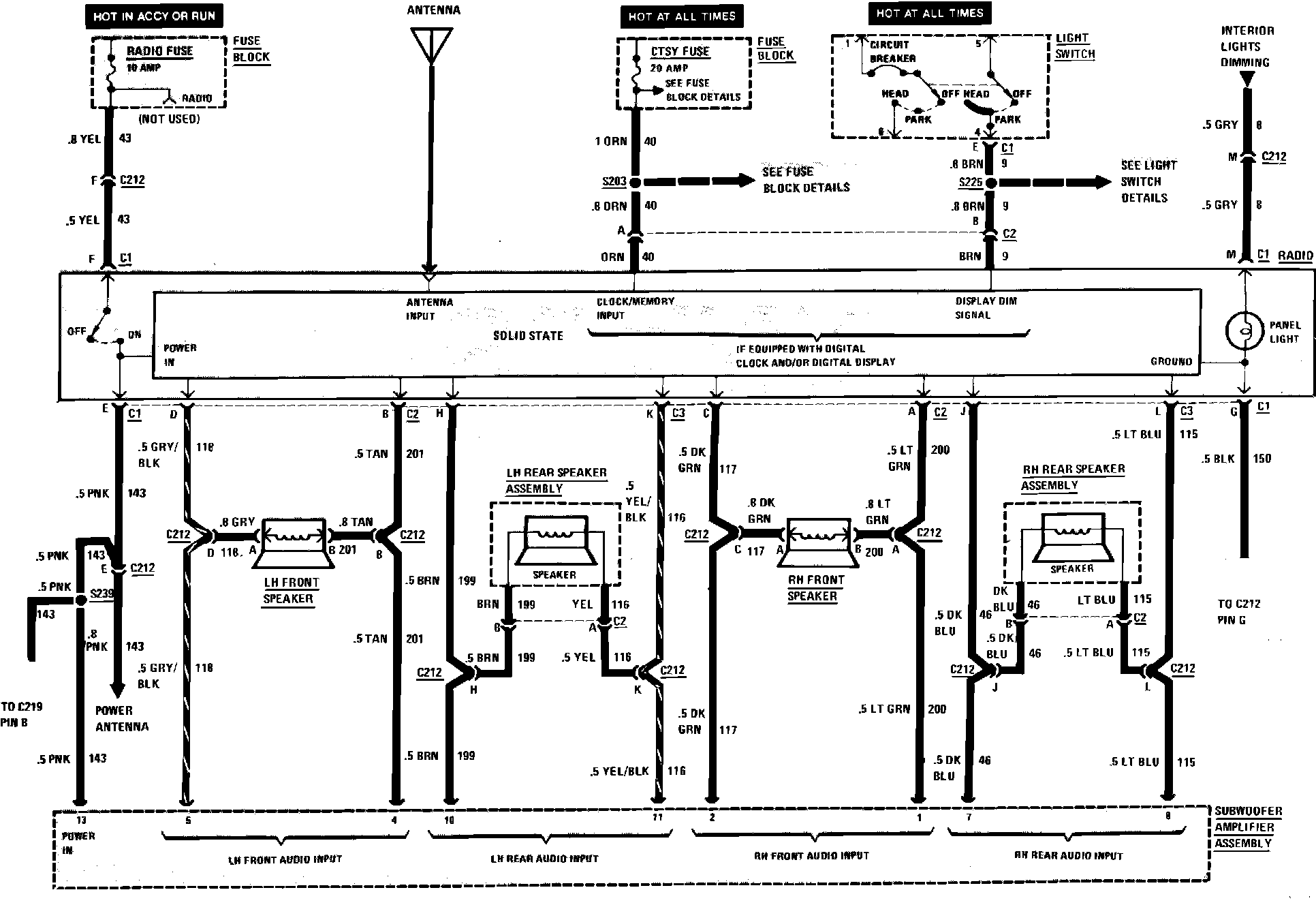

Radio Wiring Circuit W/Subwoofer Amplifier:
