Firebird W/V6-173 (2.8L) PFI, With M/T (Vin S) (Vin W)
Firebird W/V6-173 (2.8L) PFI, With M/T (Vin S) (Vin W)

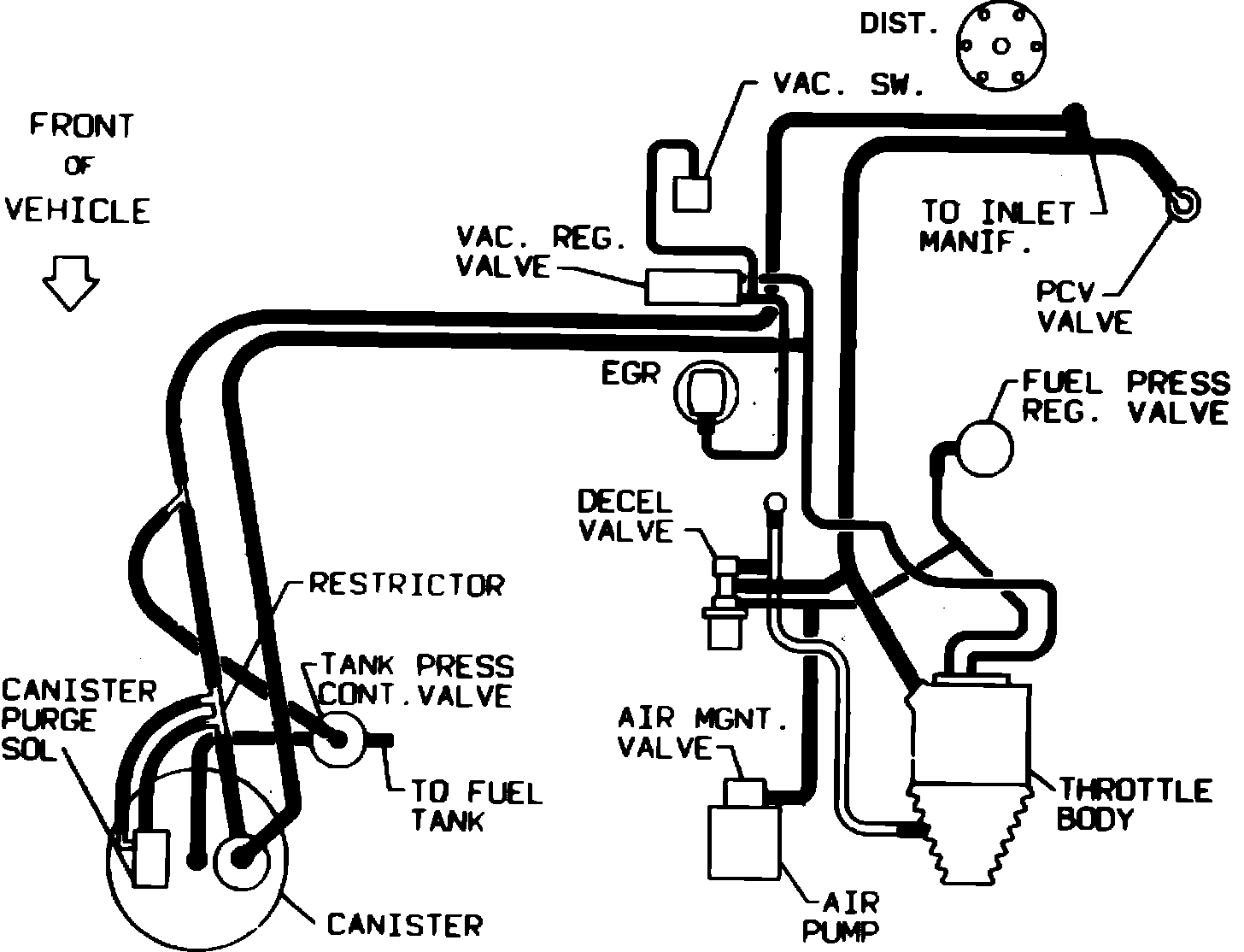

Fig. 15 Vacuum Hose Routing. 1987 Firebird W/V6-173 (2.8L) PFI, With M/T (VIN S) (VIN W):
