Air Conditioning: Blower Controls

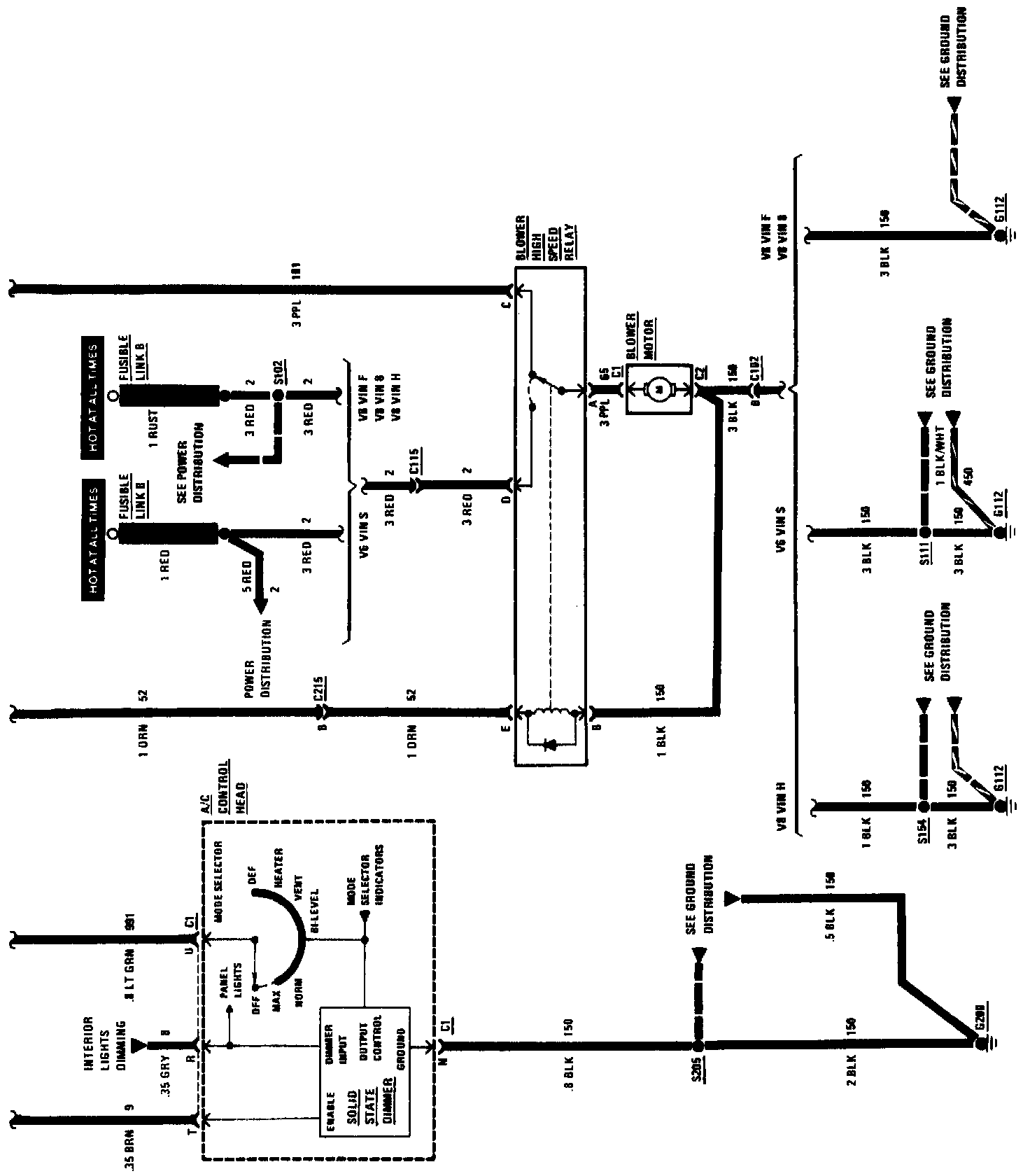

Blower Controls C60 Manual:



Blower Controls C60 Manual:

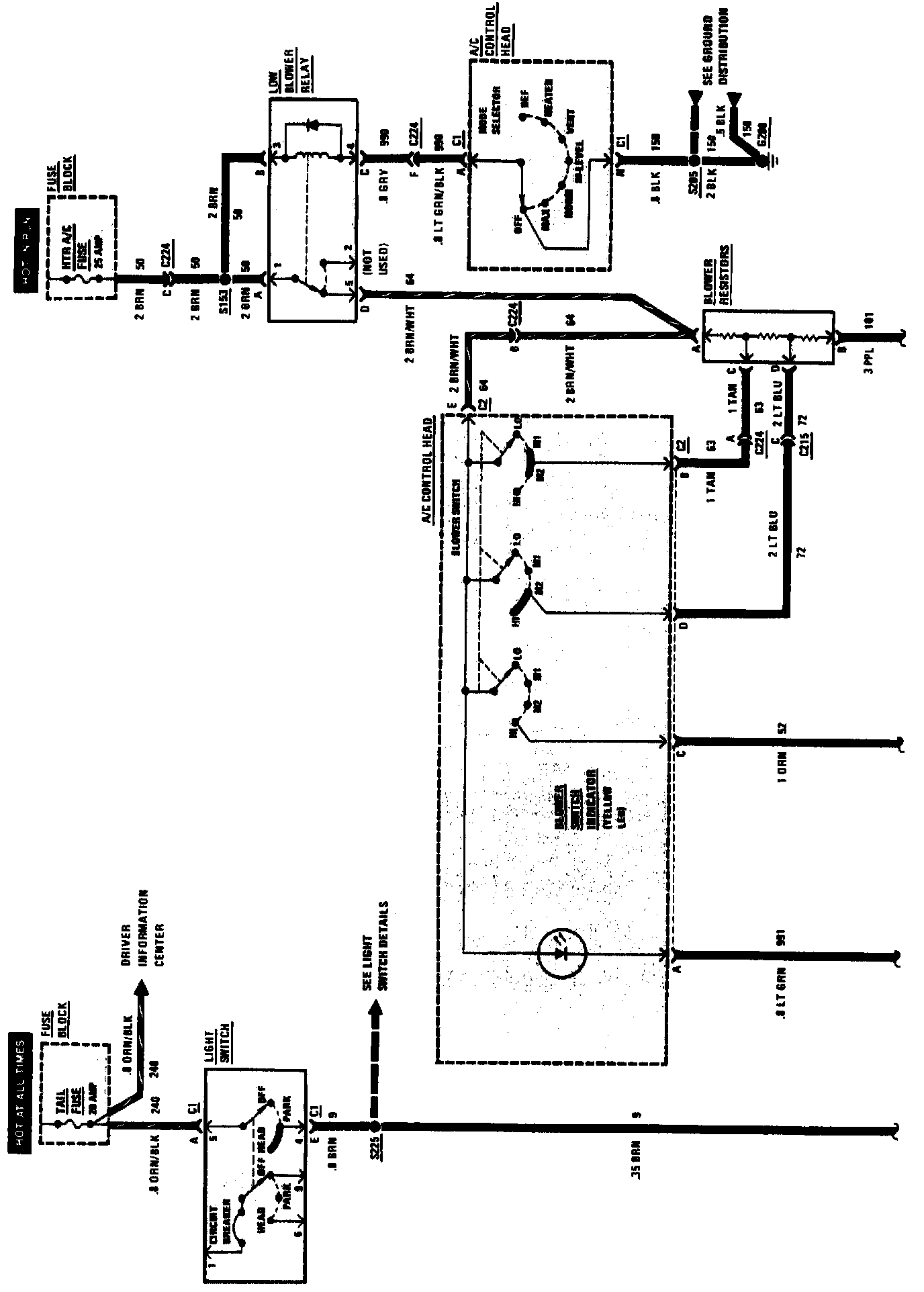

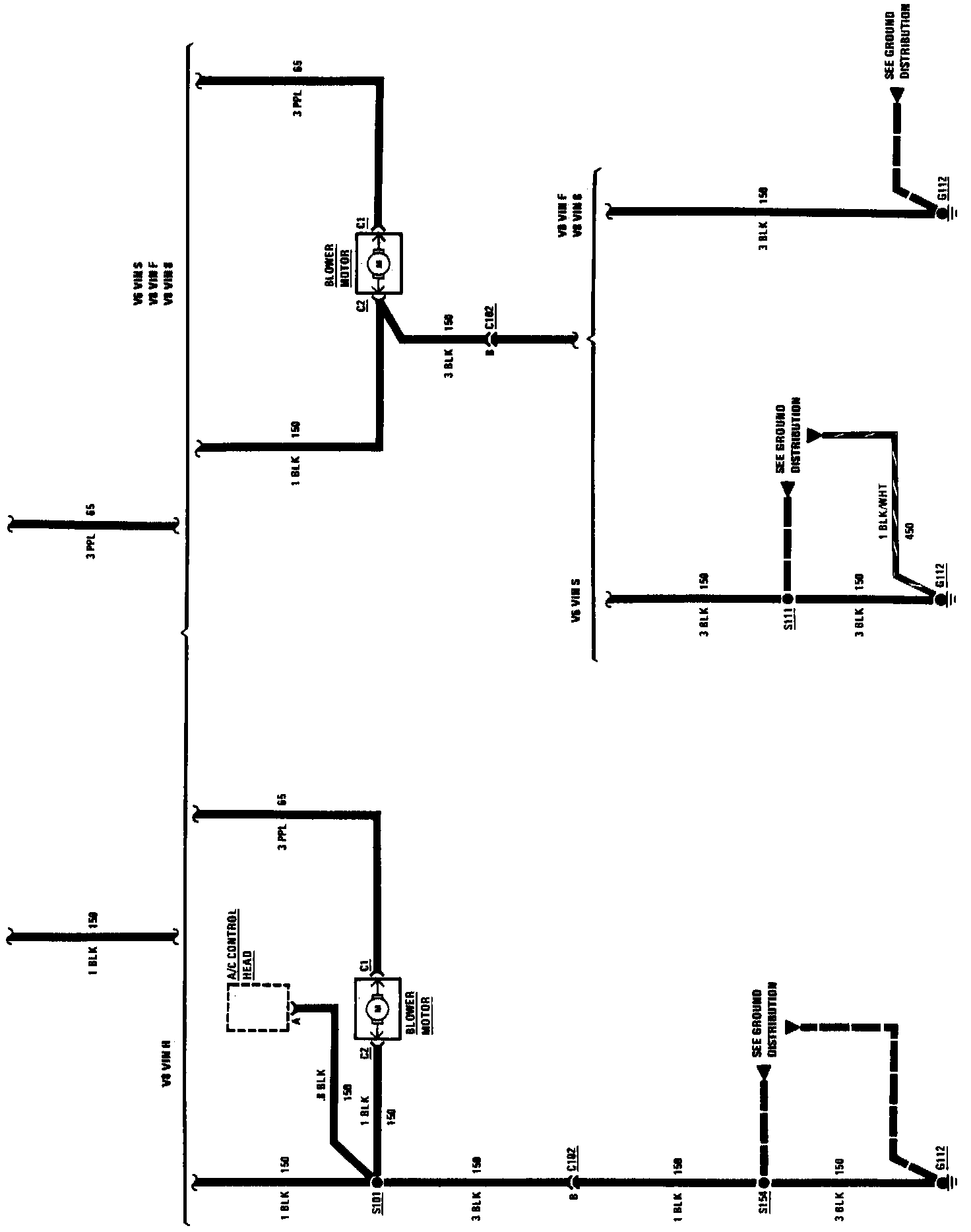

Blower Controls C67 Electric:



Blower Controls C67 Electric:
