Cargo Compartment Light
Cargo Compartment Light

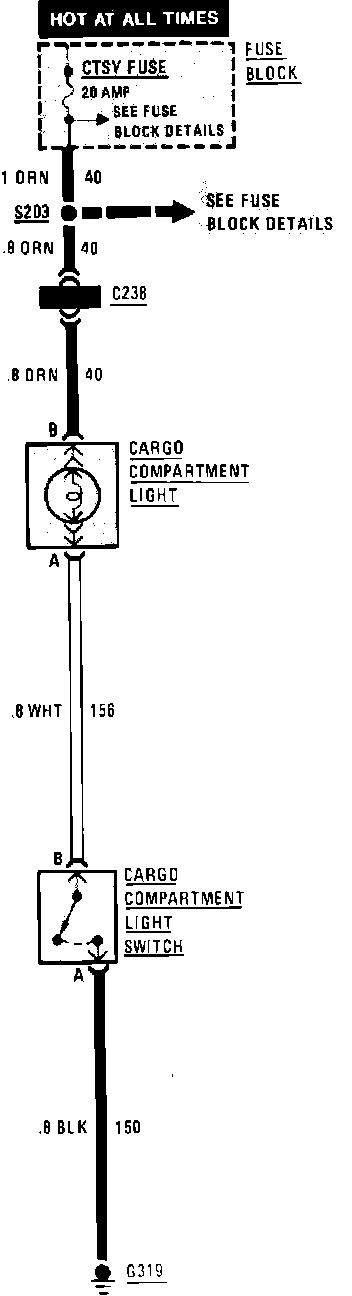

Interior Lamps Wiring Circuit. (Cargo Compartment Light):
