Idle Speed, Fuel Control & Vehicle Sensors

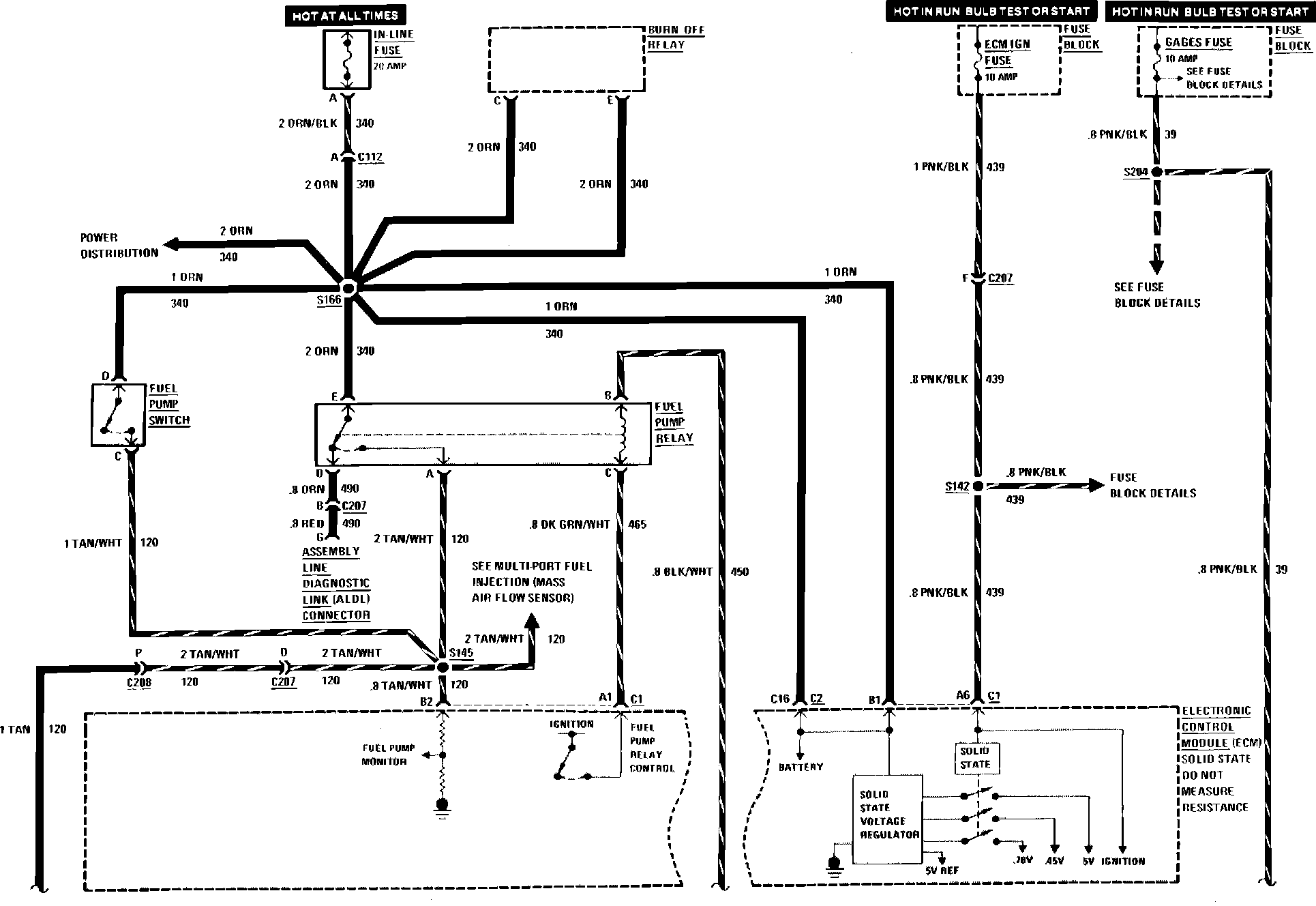

Fuel Injection/Multi-Port Wiring Circuit (Idle Speed Control, Fuel Control & Vehicle Data Sensors). W/V8-350/5.7L (VIN 8):



Fuel Injection/Multi-Port Wiring Circuit (Idle Speed Control, Fuel Control & Vehicle Data Sensors). W/V8-350/5.7L (VIN 8):
