Mass Air Flow Sensor & Burn-Off Relay
Mass Air Flow Sensor & Burn-Off Relay

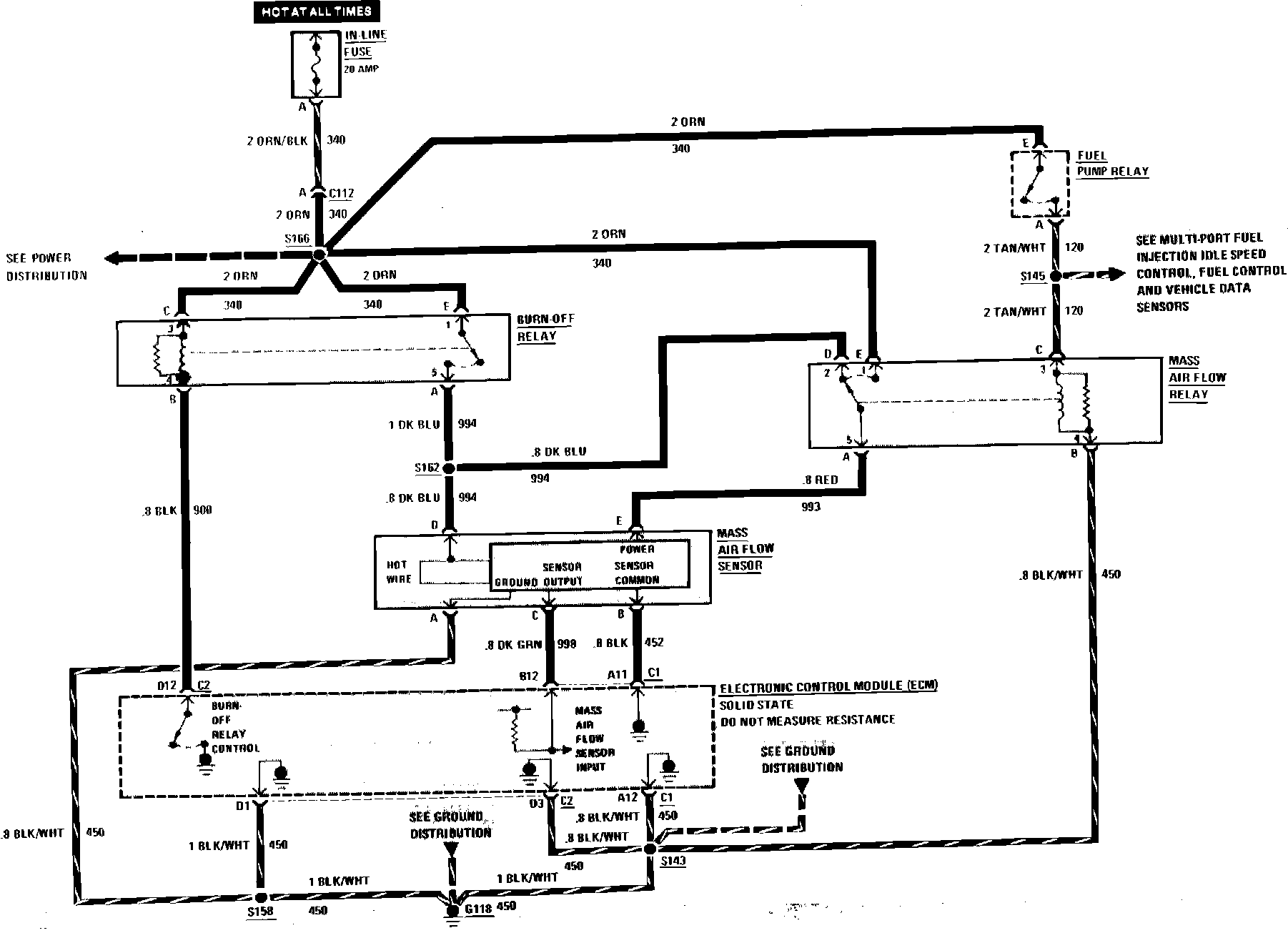

Fuel Injection/Multi-Port Wiring Circuit (Mass Air Flow Sensor & Burn-Off Relay). W/V8-350/5.7L (VIN 8):
