Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
1987
>>
Grand AM V6-181 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
With Audio Amplifier
With Audio Amplifier

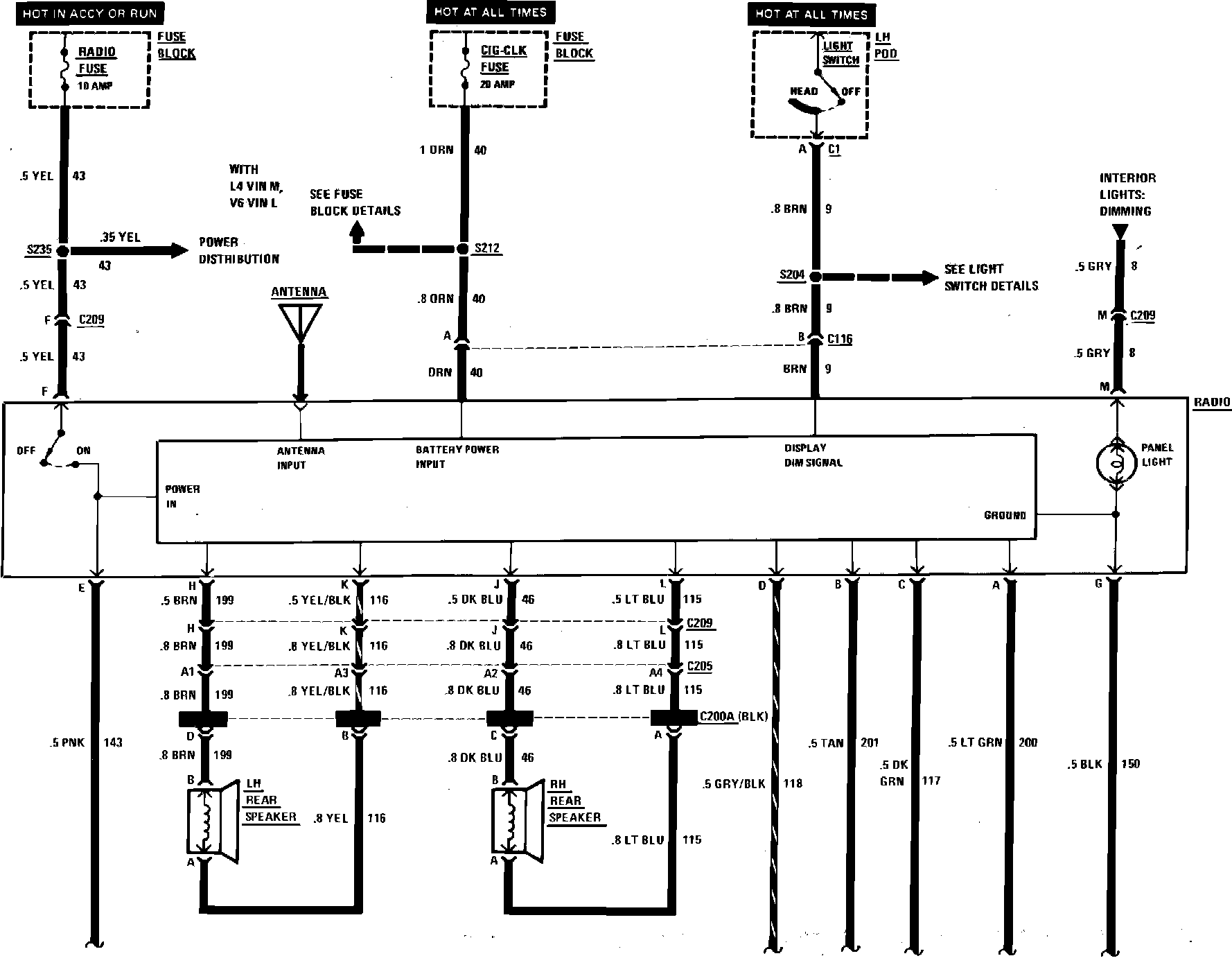

Radio Wiring Circuit (With Audio Amplifier):
Radio Wiring Circuit (With Audio Amplifier):
