Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
Figure 22 V6-231 (3.8L) Turbo SFI. (Vin 7)
Figure 22 V6-231 (3.8L) Turbo SFI. (Vin 7)

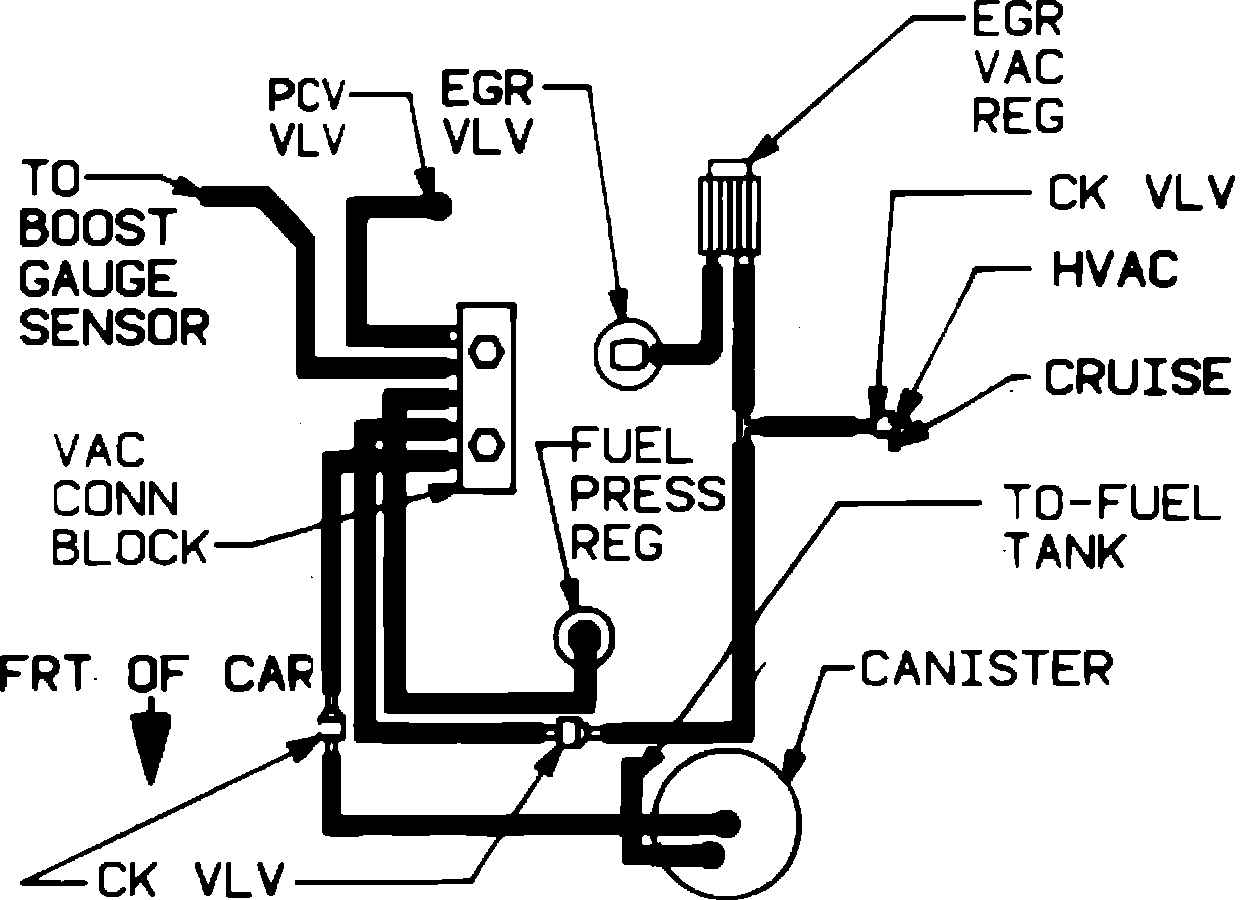

Fig. 22 Vacuum Hose Routing. 1987 V6-231 (3.8L) Turbo SFI (VIN 7):
