Parking Lamp

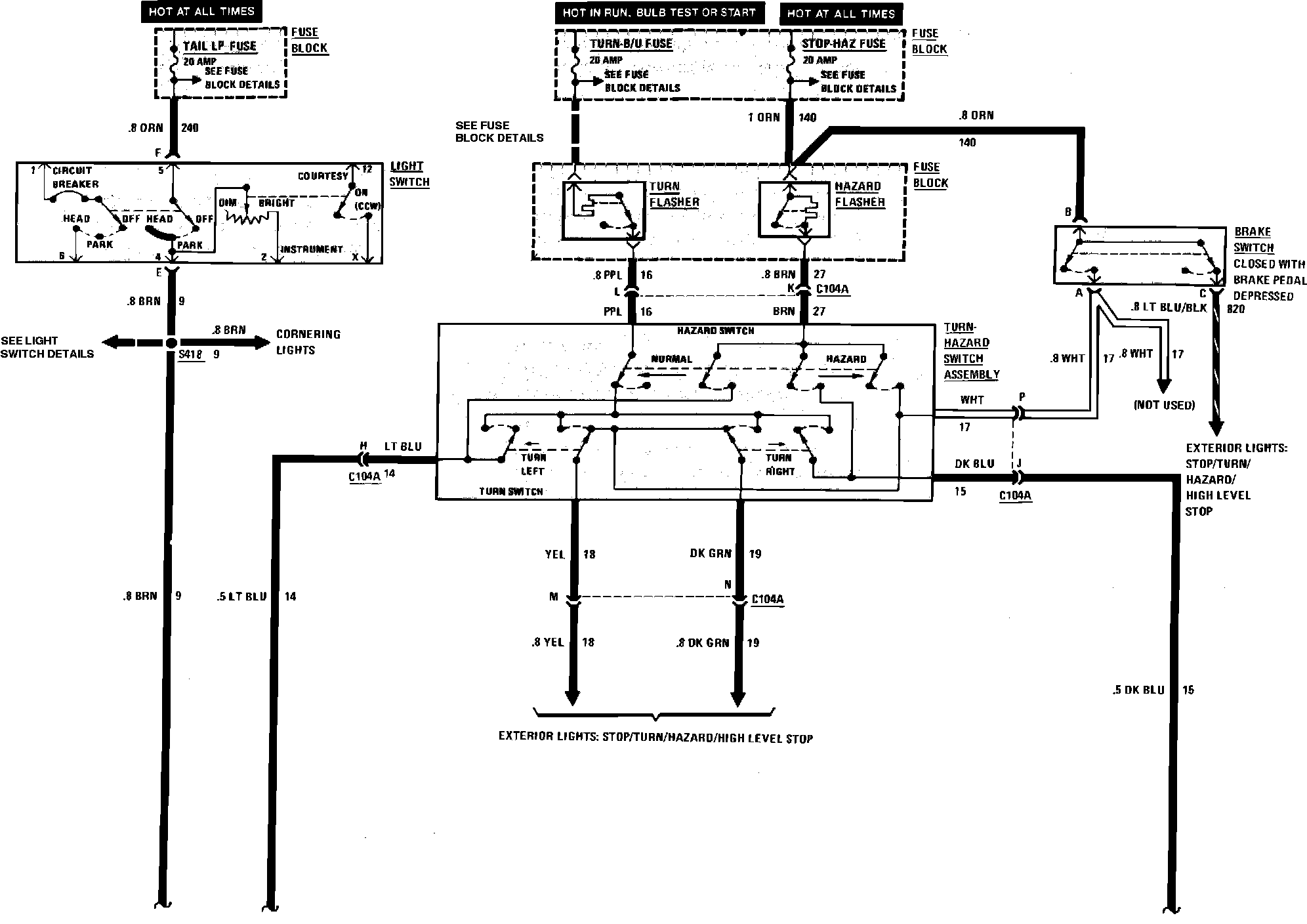

Exterior Lamps Wiring Circuit (Front Marker, Hazard, Parking & Turn):

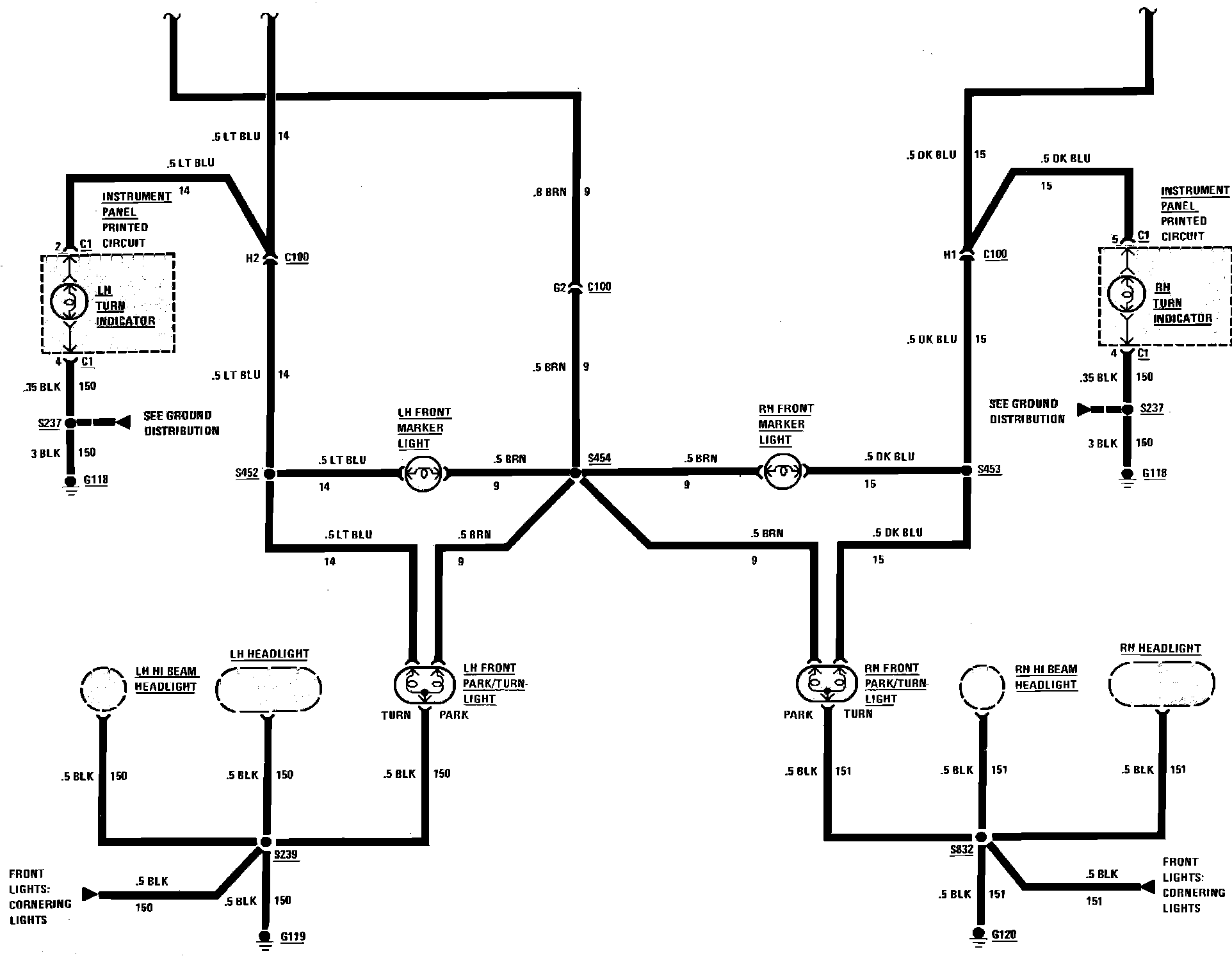

Exterior Lamps Wiring Circuit (Front Marker, Hazard, Parking & Turn):
