Trunk Lamp

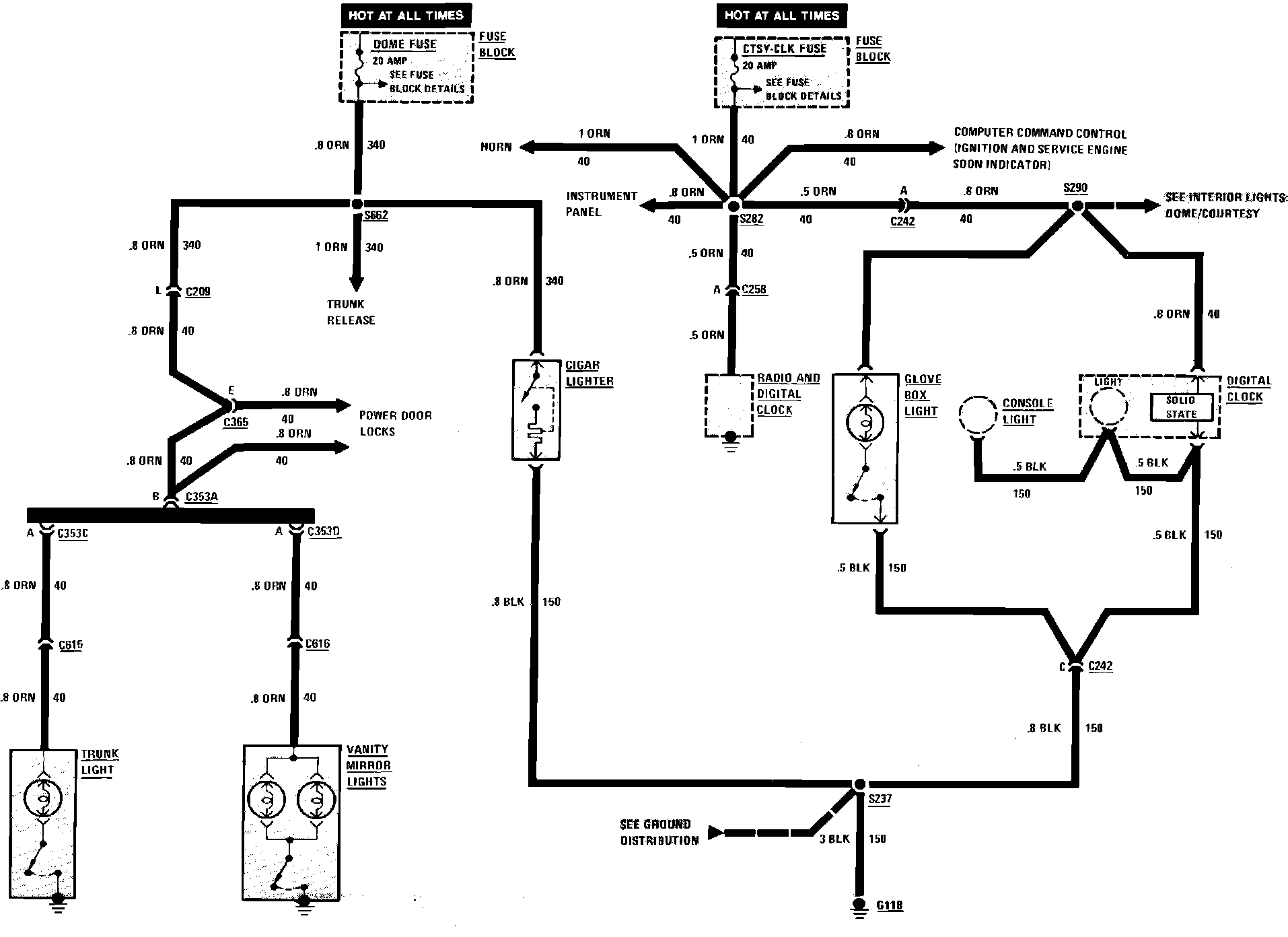

Interior Lamp Wiring Circuit (Cigar Lighter, Digital Clock, Glove Box, Trunk & Vanity Lamp):
