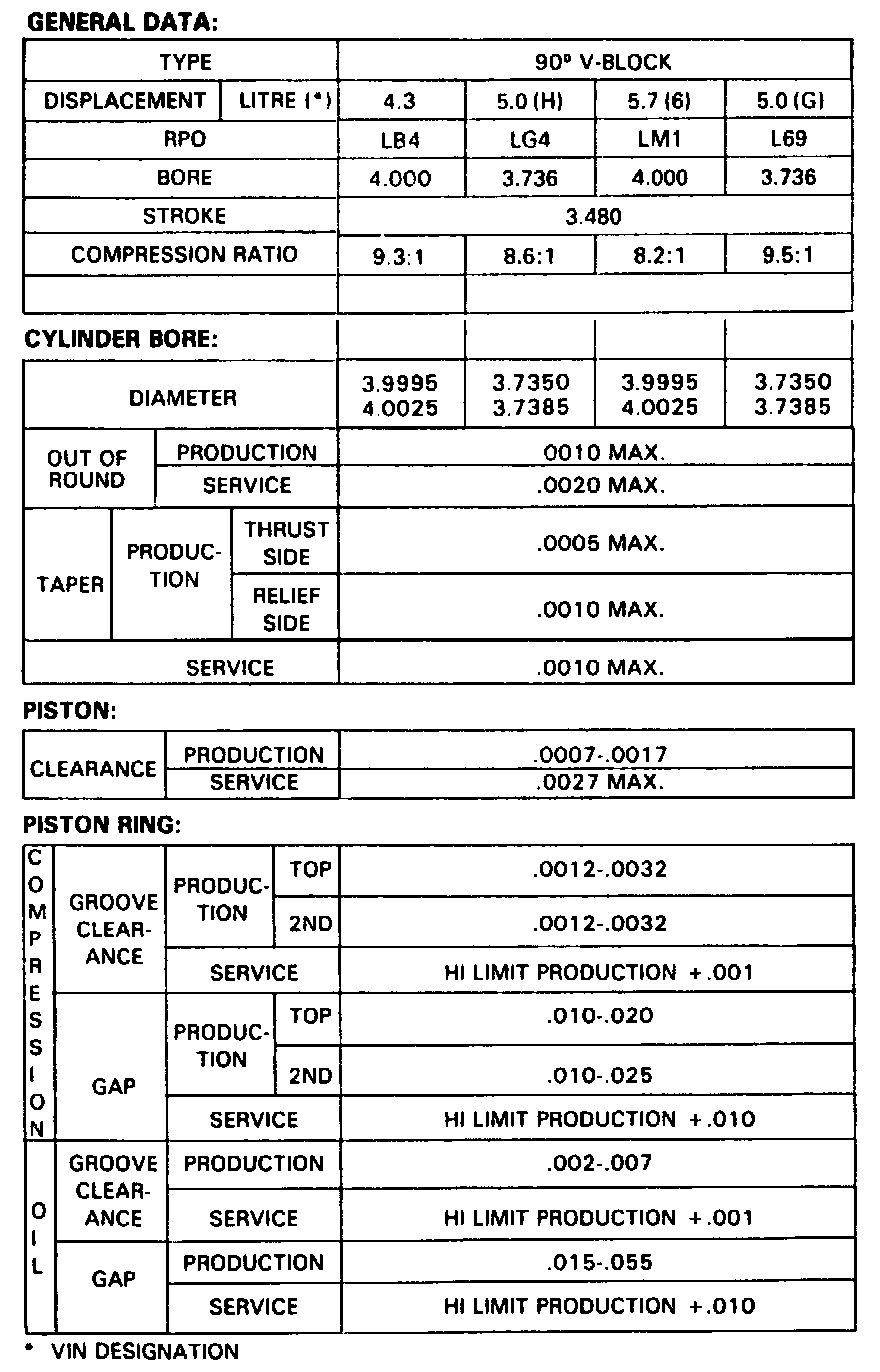

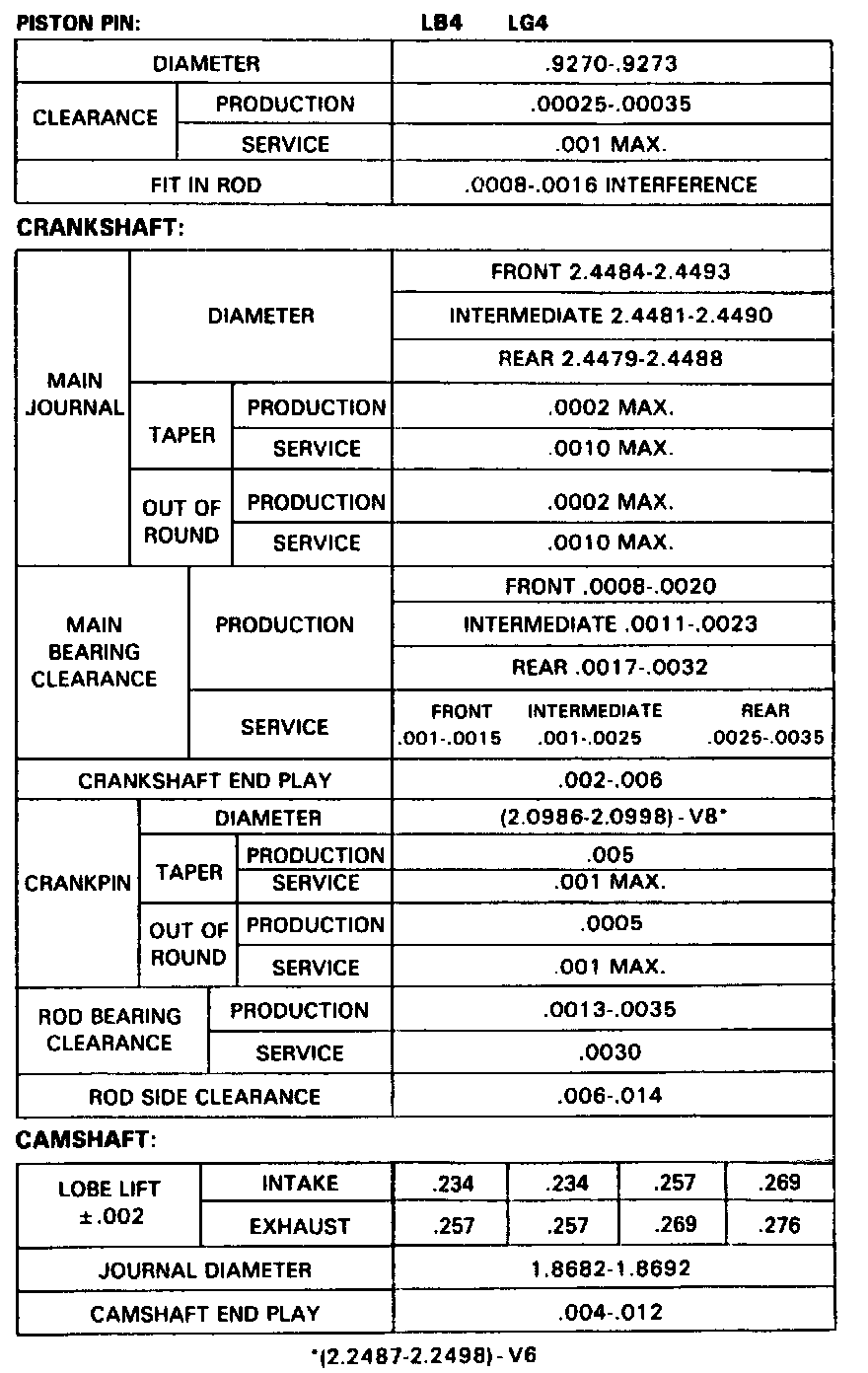

System Specifications

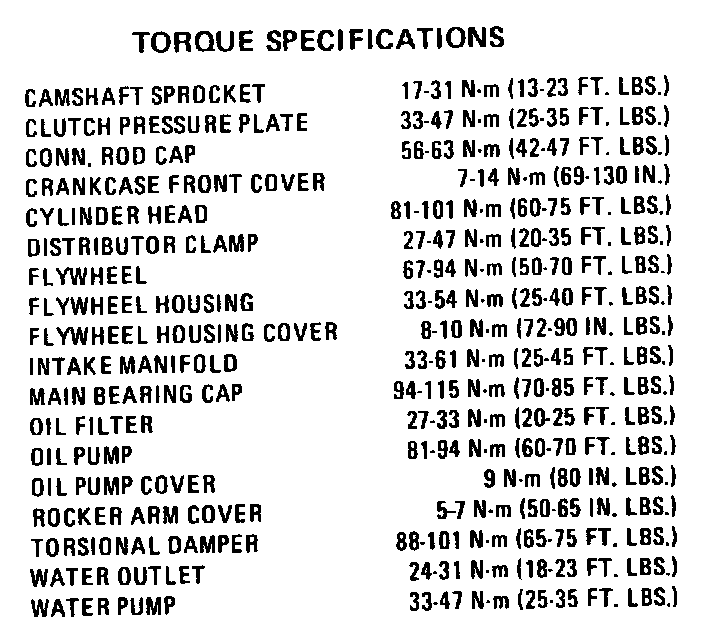

Torque Specifications:

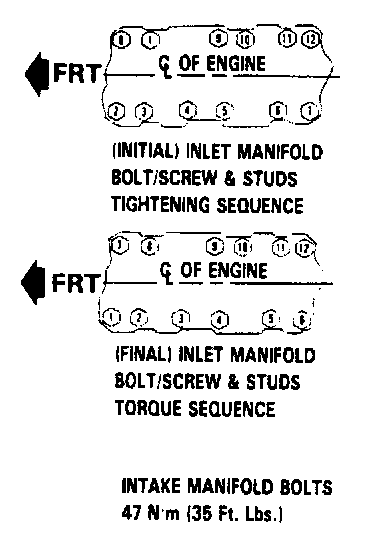

Intake Manifold Sequence (Small V-8):





Intake Manifold Sequence (V-6):

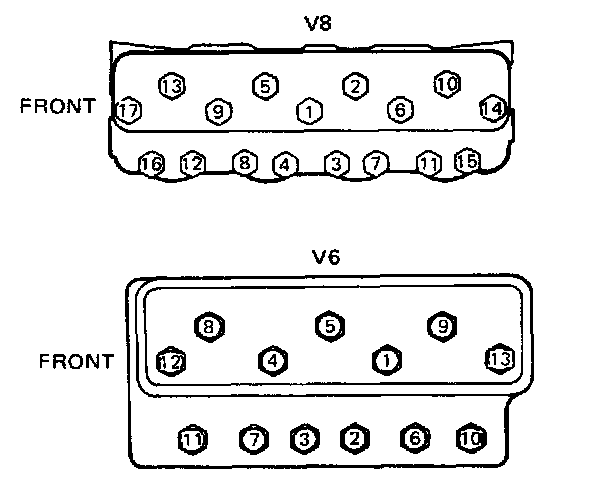

Cylinder Head Sequence:
