1987 PONTIAC "F" FIREBIRDLIQUID CRYSTAL DISPLAY INSTRUMENT CLUSTER:




FIREBIRD (Warranty and Non-Warranty)

1. Base Telltale and Gauge Package Clusters

All instrument cluster components except the speedometer and tachometer will continue to be serviced by the dealer. Replacement speedometer and tachometer must be serviced only through an AC-Delco authorized service center.

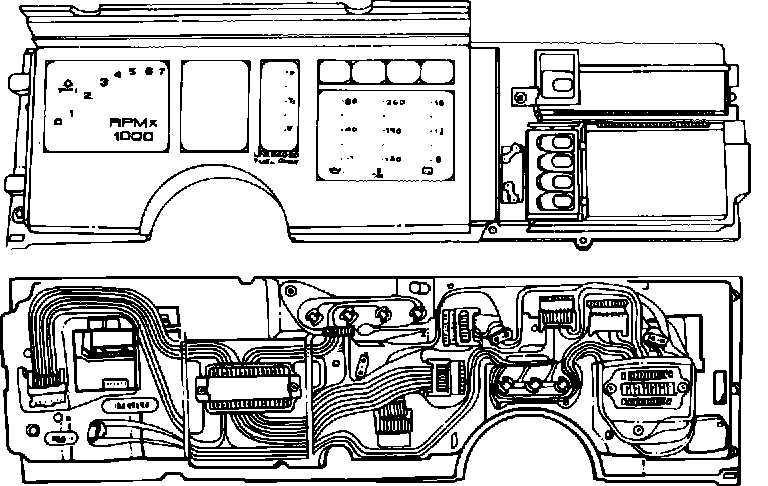

2. Electronic Clusters

The entire cluster assembly is serviced only by an exchange cluster. There are no serviceable parts. The entire suspect cluster should be returned only to an authorized AC-Delco service center. DO NOT return the DIC.
EXCHANGE UNIT DESCRIPTION

United States

25087623 6 Cylinder
25087624 8 Cylinder
25087627 8 Cylinder (High Output)

Canada

25087625 6 Cylinder
25087626 8 Cylinder
25087628 8 Cylinder (High Output)

Exchange unit consists of complete instrument cluster less nonvolatile memory odometer module (module remains with vehicle).

1987 PONTIAC "F" FIREBIRD QUARTZ SPEEDOMETER:




3. Firebird Speedometers (Quartz-Electric Motor Driven)

These are made by Nippondenso but are serviced only through an AC-Delco authorized service center.
1987 PONTIAC "F" FIREBIRD Quartz Speedometer


EXCHANGE UNIT DESCRIPTION

25059470 U.S. 85 MPH
25059471 Canada 140 KPH
25059472 Export 140 KPH
25059473 U.S. 140 MPH
25059474 Canada 220 KPH
25059475 Export 220 KPH

The exchange unit consists of mechanism and circuit board, odometers, and motor.

1987 PONTIAC "F" FIREBIRD TACHOMETER:




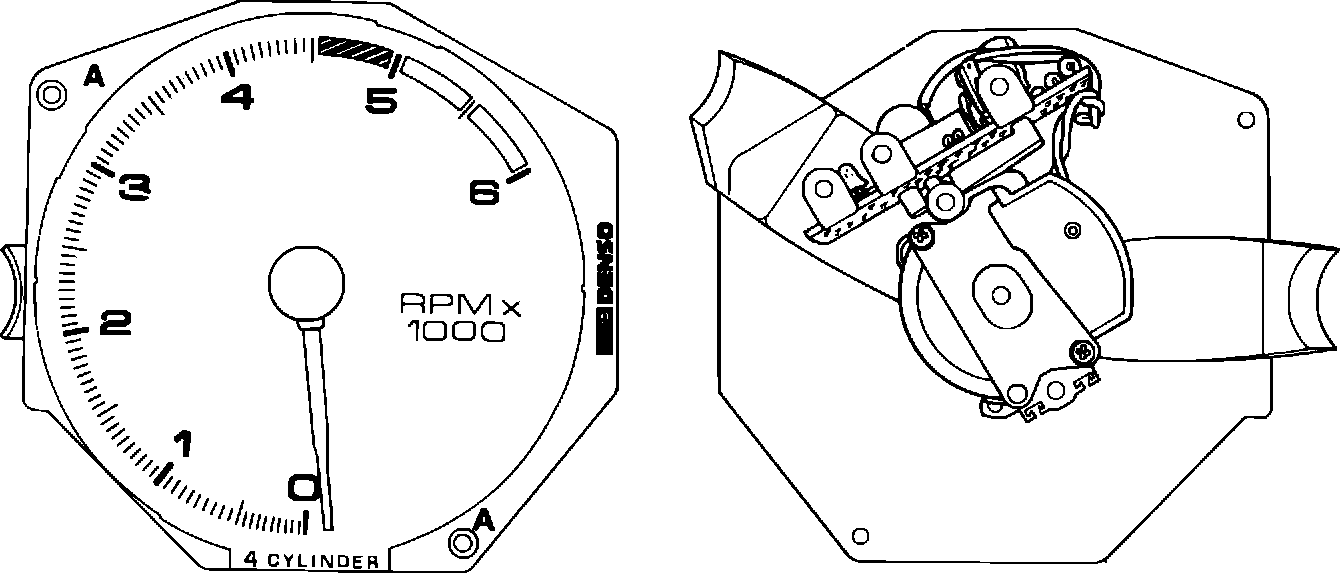

4. Firebird Tachometers

These are made by Nippondenso but are serviced only through an AC-Delco authorized service center.
EXCHANGE UNIT DESCRIPTION

25059477 All 6 Cylinder
25059478 All 8 Cylinder - 6000 RPM
25059479 All 8 Cylinder - 8000 RPM

The exchange unit consists of the mechanism and circuit board.

1987 PONTIAC "F" FIREBIRD DRIVER INFORMATION CENTER:




5. Firebird DIC
DIC exchange unit is P/N 25084606. It is available only thru Specmo Instrument Service.
