Pontiac
>>
1987
>>
Safari Wagon V8-305 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Panel Illumination, Temp Gauge, and Warning Lights
Panel Illumination, Temp Gauge, and Warning Lights

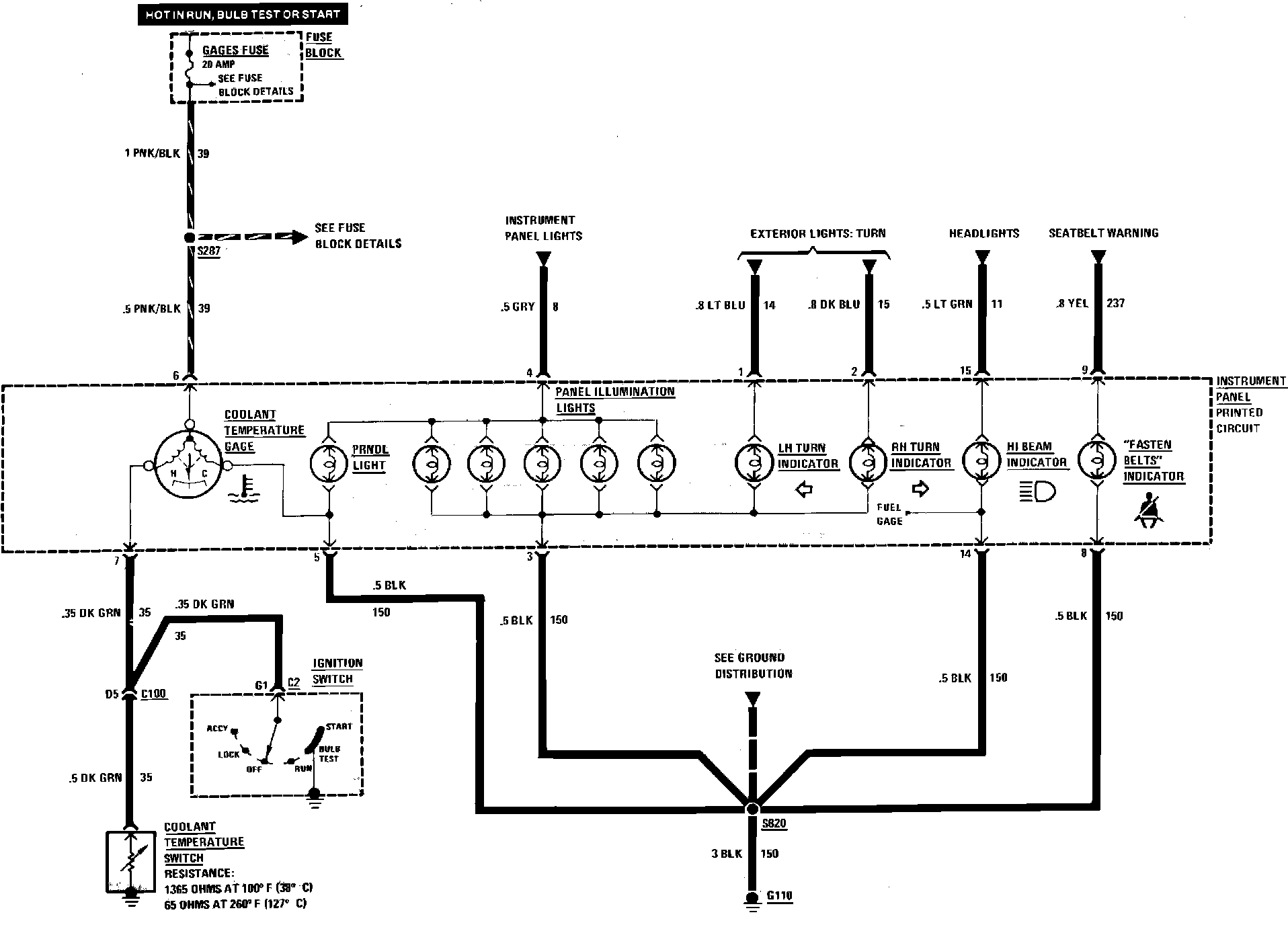

Instrument Panel Coolant Temperature Gauge & Indicators Wiring Circuit (W/Gauges):
