Cylinder Head Torque Specifications and Sequence

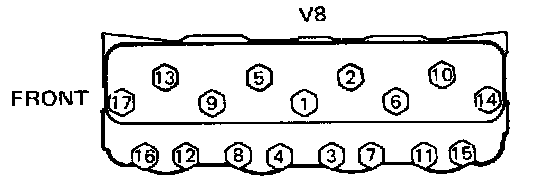

Cylinder Head Torque Specification and Sequence






Torque Specification 81-101 Nm (60-75 ft lb)
