Condenser HVAC: Service and Repair

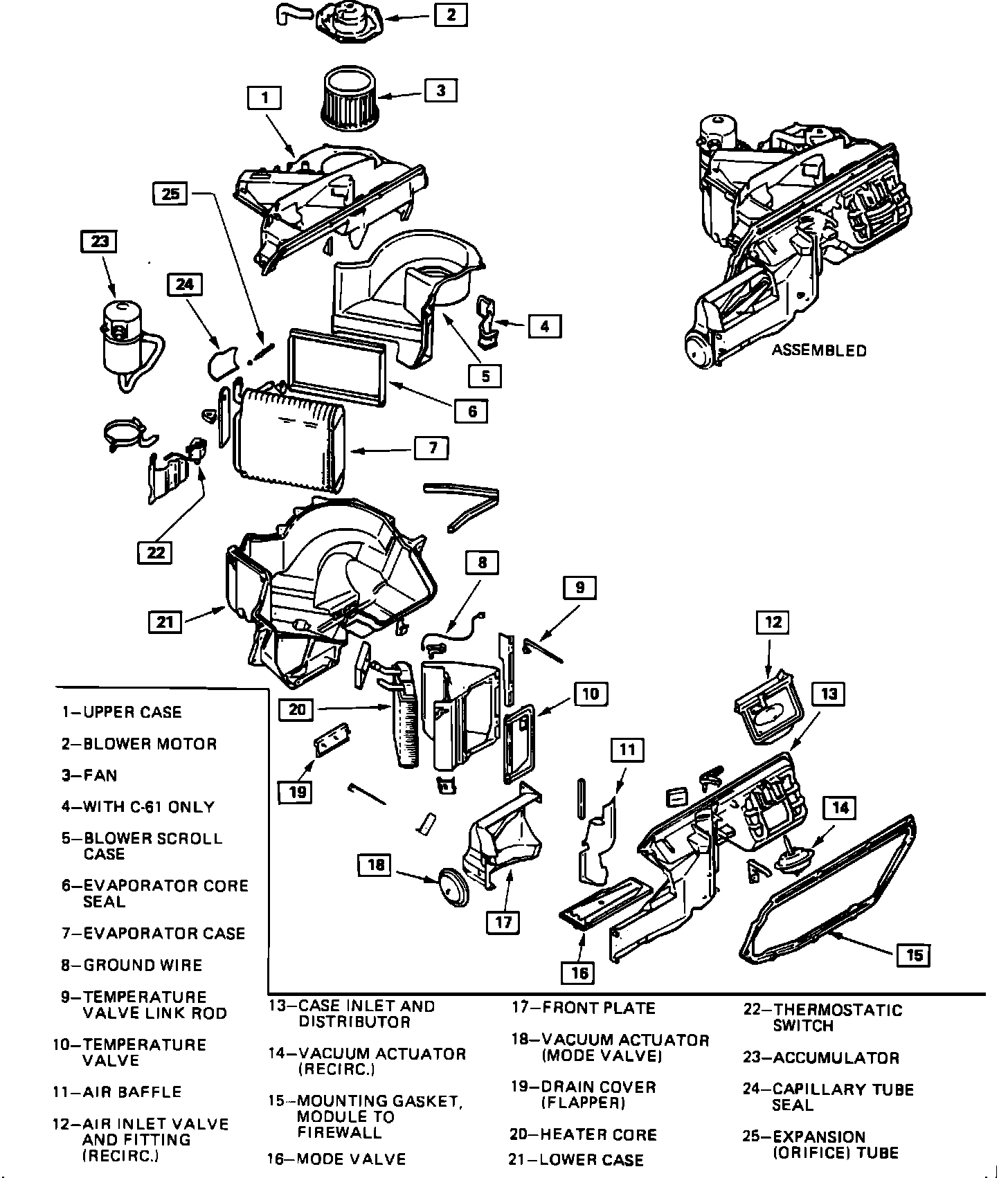

Air Conditioning Module - Disassembled View:

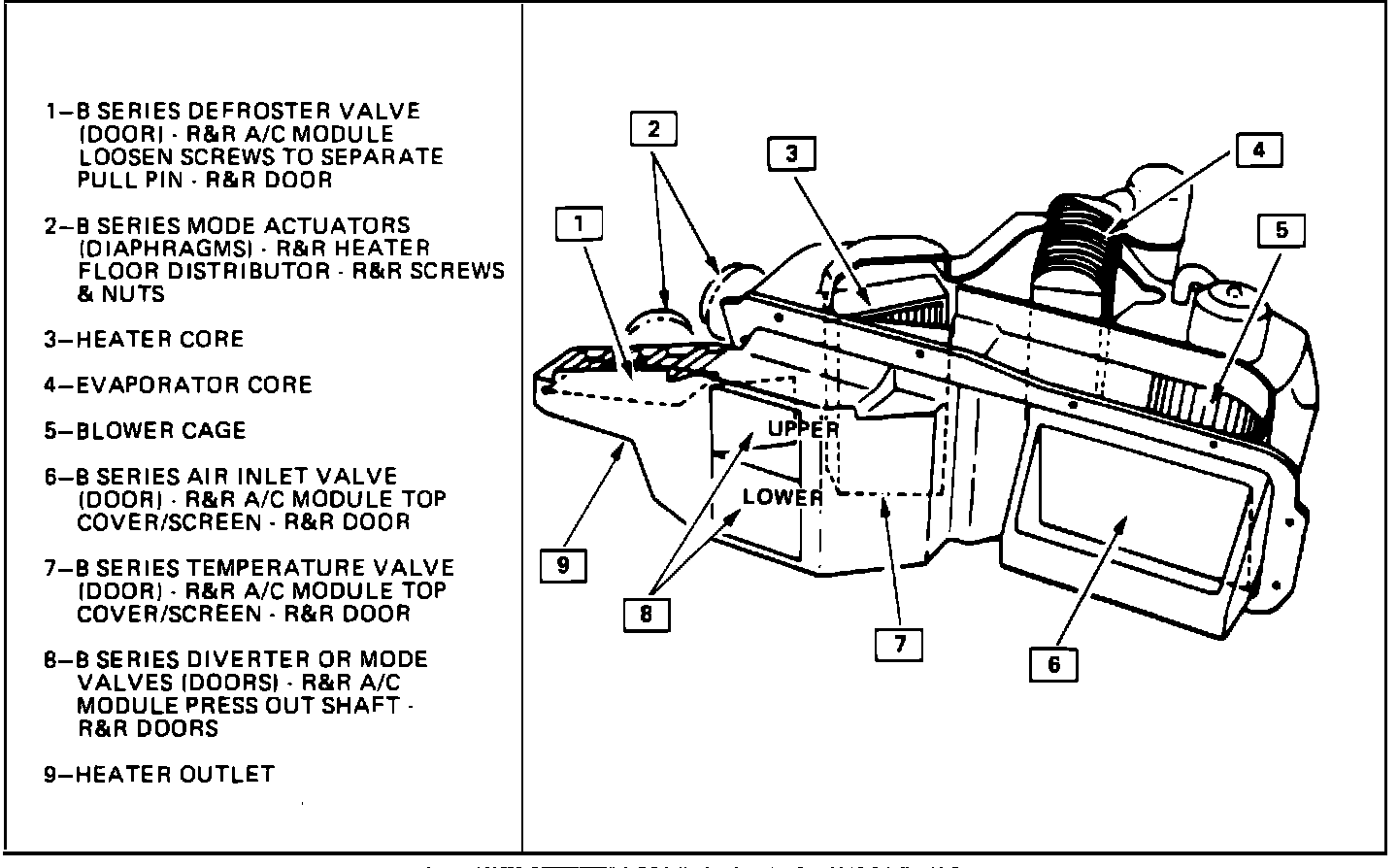

Air Conditioning Module:

EXC. CADILLAC, CAMARO, CORVETTE, CUTLASS, ELECTRA, FIERO, FIREBIRD, GRAND PRIX, LESABRE, REATTA, RIVIERA & 98

1. Discharge system refrigerant.
2. Disconnect refrigerant lines at condenser, and plug open fittings.
3. Remove air cleaner cold air duct from core support, if so equipped.
4. Remove upper fan shroud half.
5. Remove condenser top mounting brackets and rubber insulators.
6. Reposition radiator, then pull condenser upward to remove through top.
7. Reverse procedure to install.
