Starting and Charging

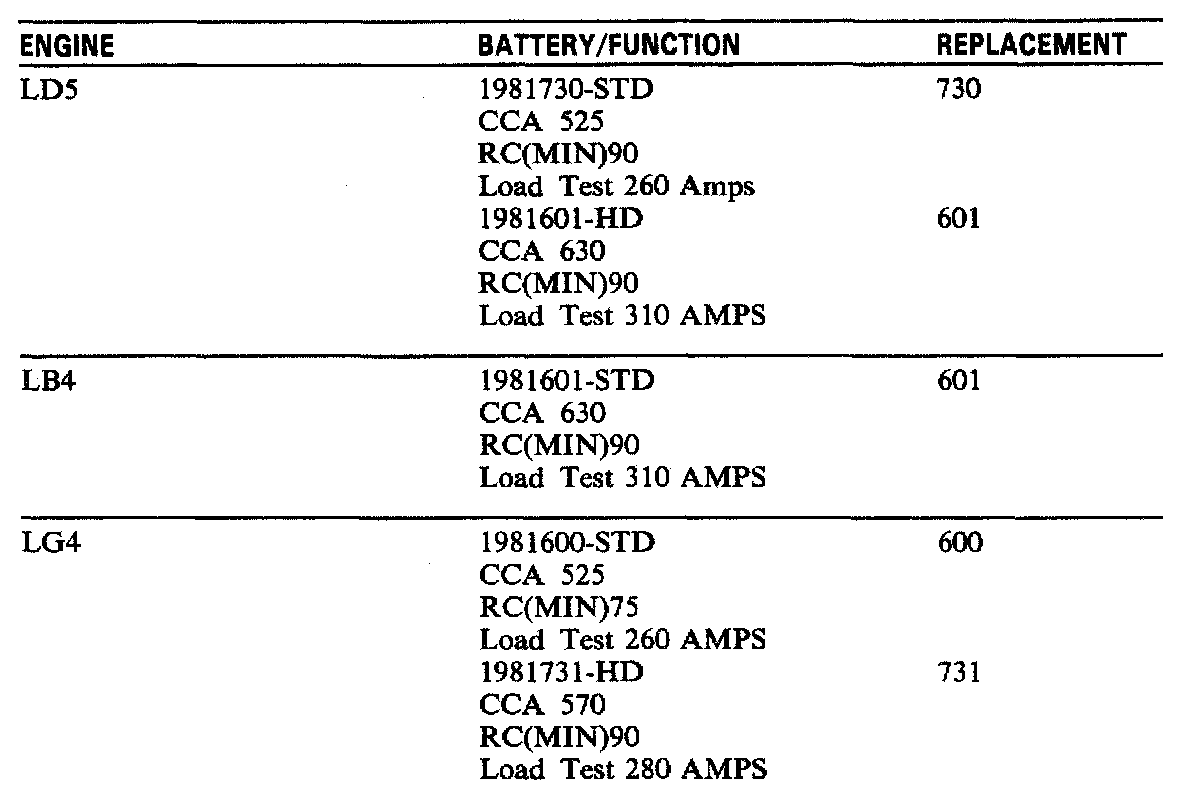

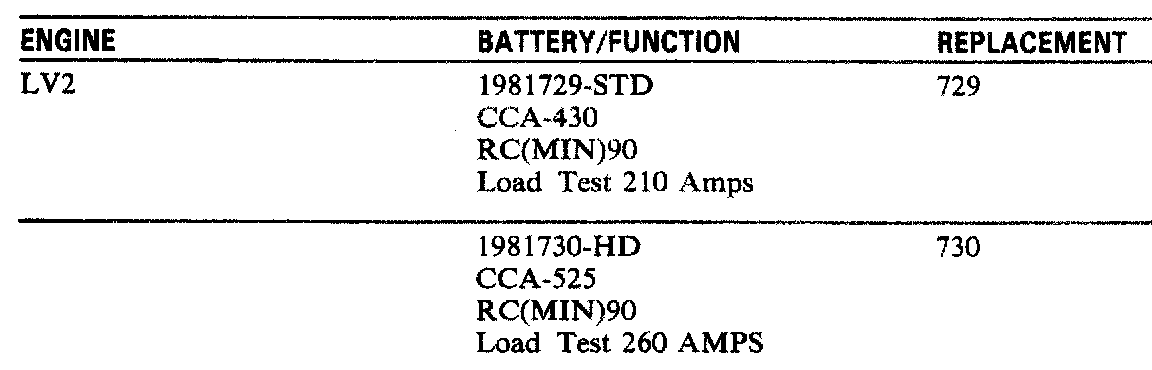

BATTERY SPECIFICATIONS

I Of II:





II Of II:

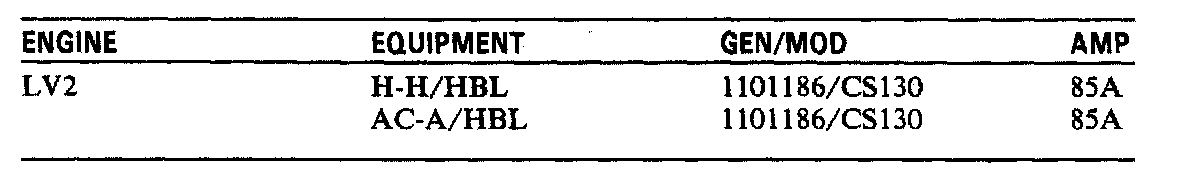

ALTERNATOR SPECIFICATIONS

I Of II:





II Of II:





ALTERNATOR TORQUE SPECIFICATIONS

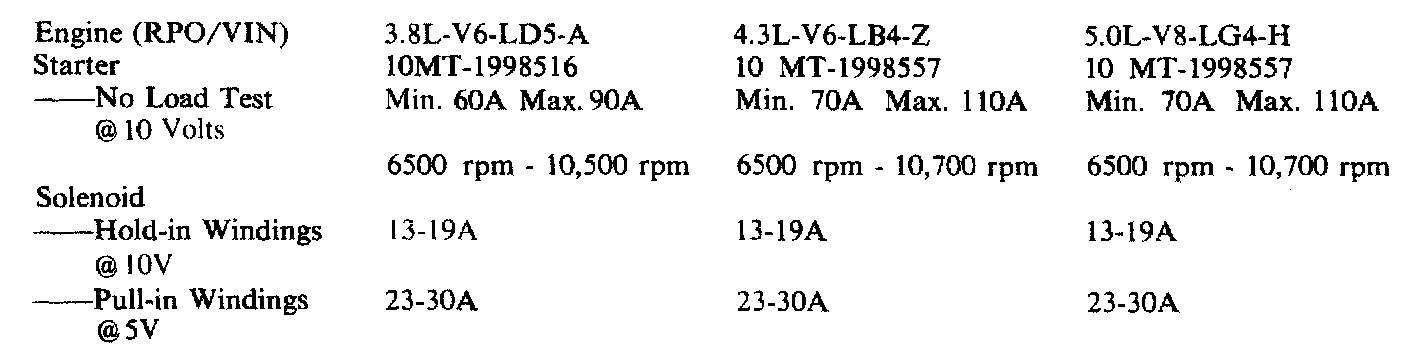

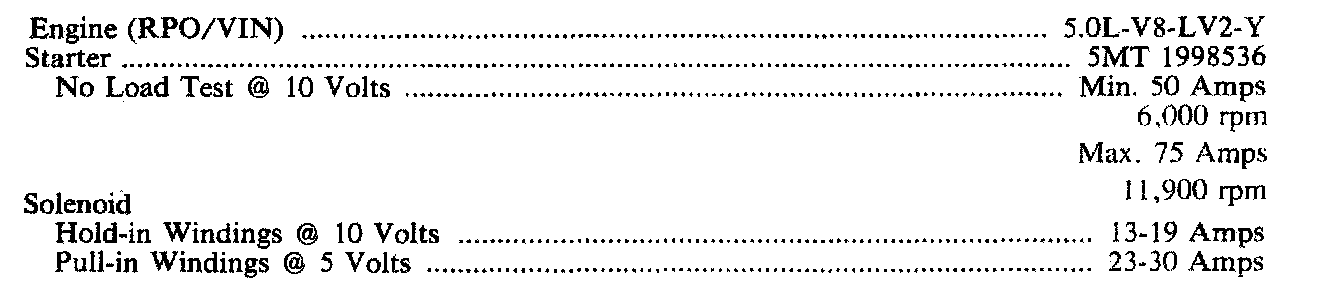

STARTER SPECIFICATIONS

I Of II:





II Of II:
