Vehicle Ride (Trim) Height Specifications

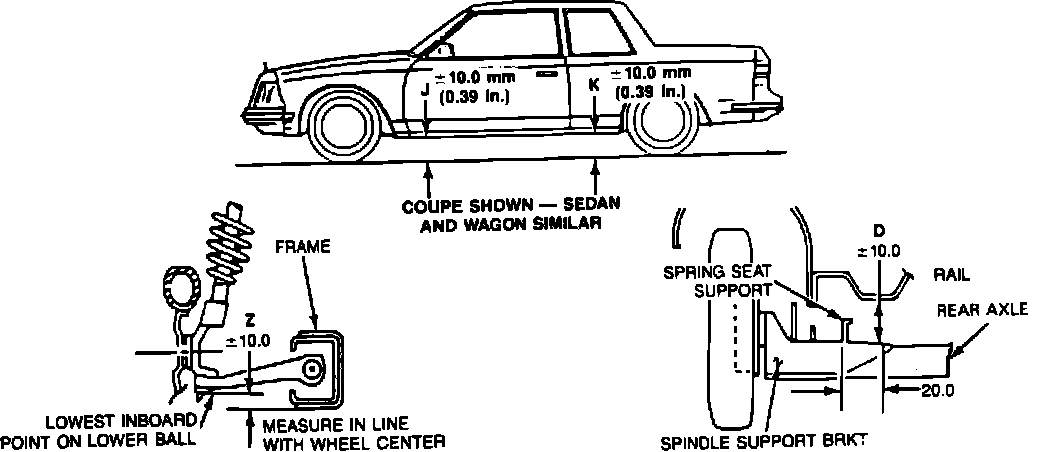

Fig. 1 Measurement Location Points:

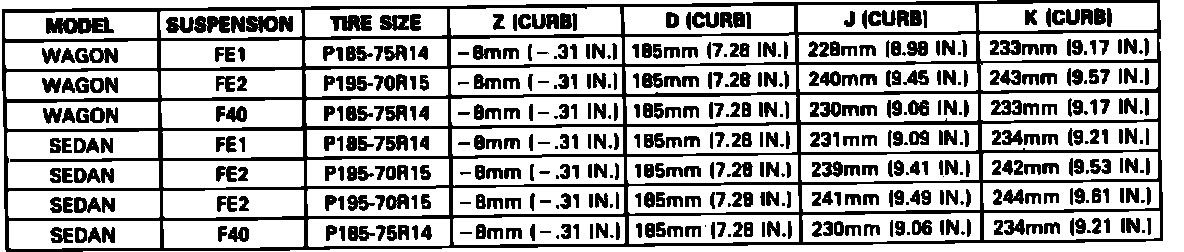

Fig. 4 Ride Height Specifications. 1989-90 6000:
