Instrument Panel, Gauges and Warning Indicators
>>
Malfunction Indicator Lamp
Malfunction Indicator Lamp

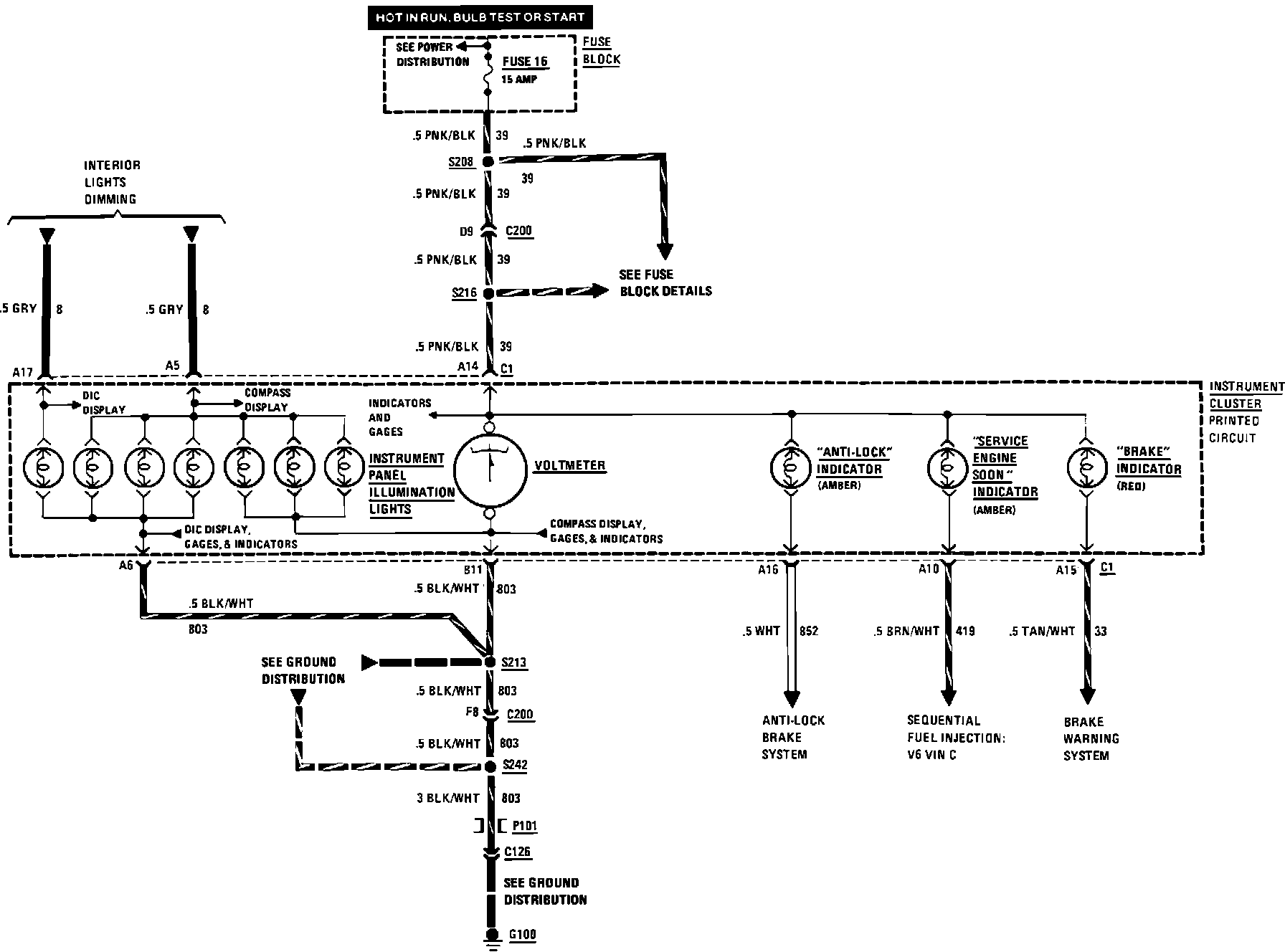

Instrument Panel Gauges Cluster. Indicators & Tachometer:
