Home >> Pontiac >> 1990 >> Firebird V8-305 5.0L VIN E TBI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 41

DTC 41

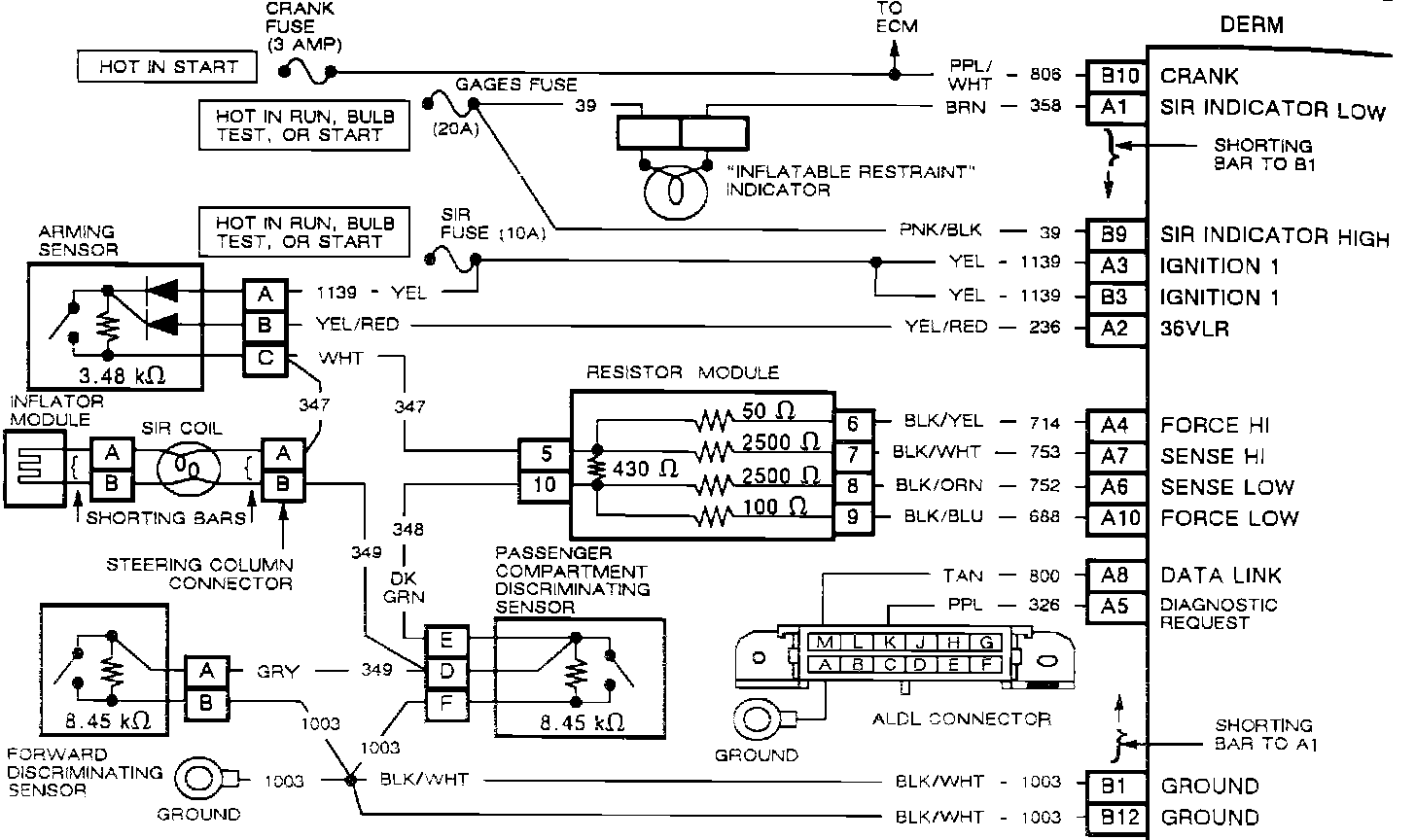

Fig. 231 Code 41, Energy Reserve Voltage Charging Failure (Part 1 Of 2).:



Fig. 231 Code 41, Energy Reserve Voltage Charging Failure (Part 2 Of 2).:
