Coolant Temperature Sender
Coolant Temperature Sender

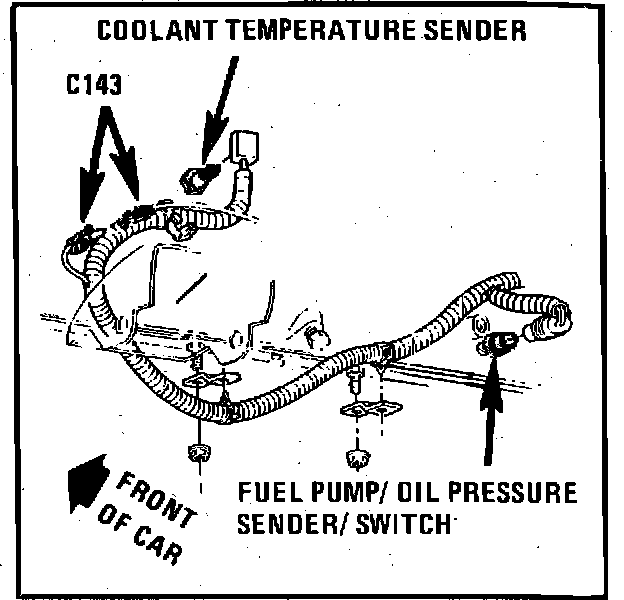

Coolant Temperature Sender.:
Lower LH Side Of Engine
Applicable to: Camaro & Firebird w/V8-305/5.0L VIN F
