Fuse Block: Locations

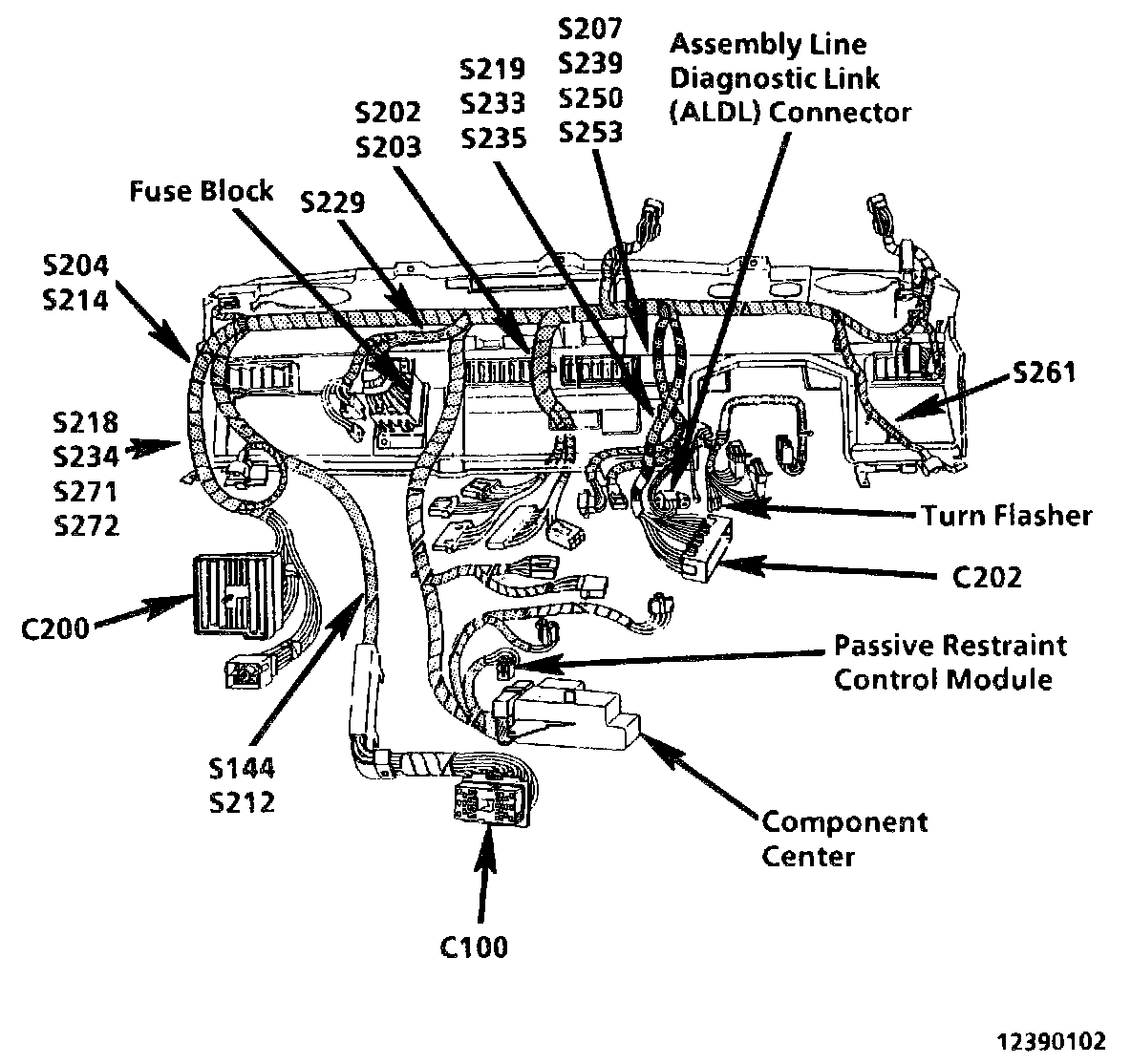

FUSE BLOCK

Behind I/P:






The Fuse Block is located behind RH side of Instrument Panel (I/P).
