Information Bus (Data Line)

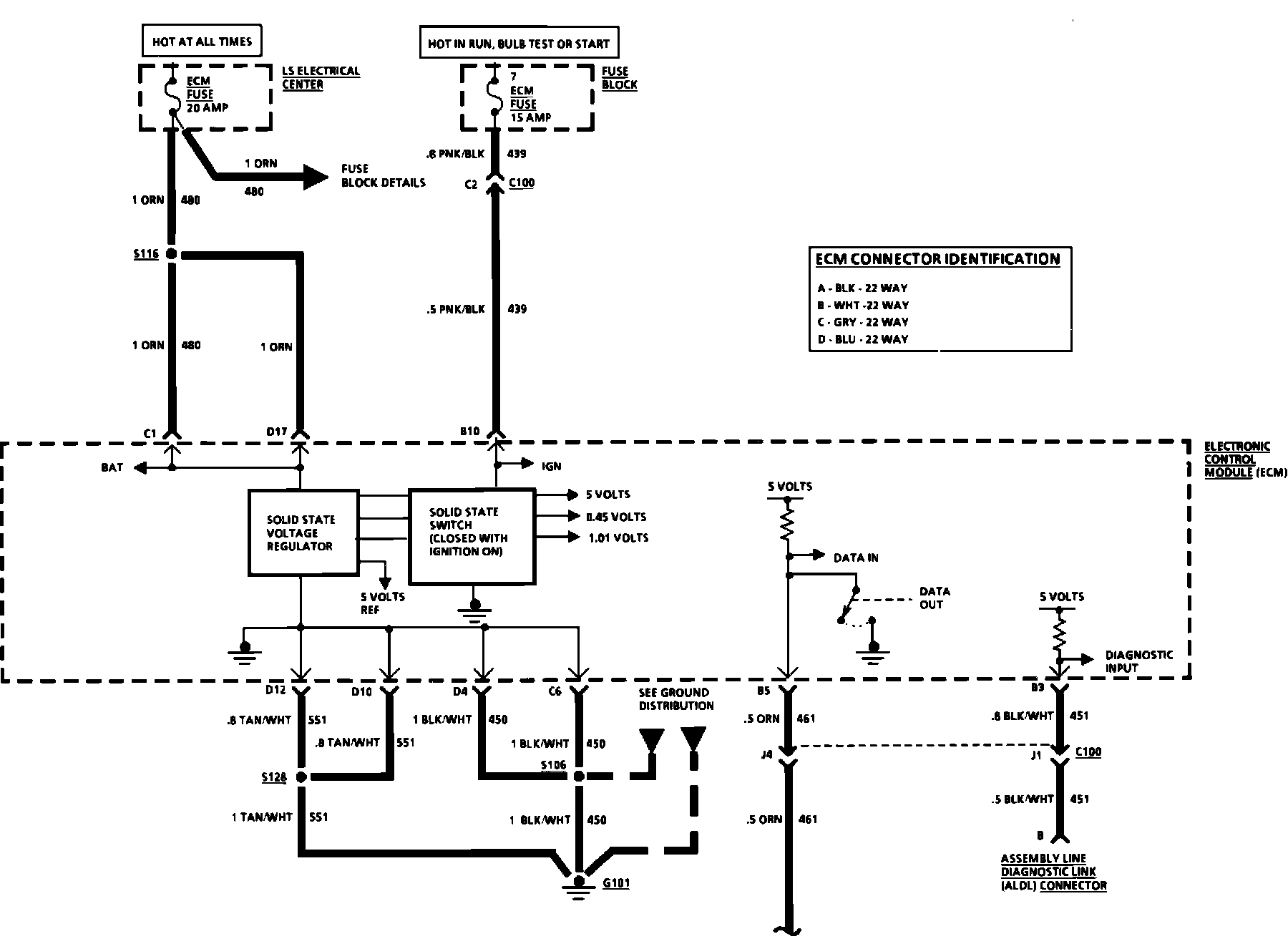

Data Line. Electronic Control Module. Ste:



Data Line. Electronic Control Module. Ste:
