Pictorial View

Pictorial View:

1. A/C COMPRESSOR
2. A/C HOSE
3. COOLING FAN PRESSURE SWITCH CONNECTOR
4. LOW PRESSURE SWITCH CONNECTOR
5. DIRECT FIRE IGNITION CONNECTOR
6. OIL PRESSURE SWITCH CONNECTOR
7. HIGH PRESSURE SWITCH CONNECTOR
8. A/C COMPRESSOR CONNECTOR
9. FAN ASSEMBLY
10. FAN CONNECTOR
11. AIR CLEANER
12. IAC STEPPER MOTOR
13. THROTTLE BODY
14. TPS CONNECTOR
15. MANIFOLD AIR TEMPERATURE SENSOR CONNECTOR
16. MANIFOLD AIR TEMPERATURE SENSOR
17. COOLANT TEMPERATURE SWITCH
19. STARTER SOLENOID
20. POSITIVE BATTERY CABLE

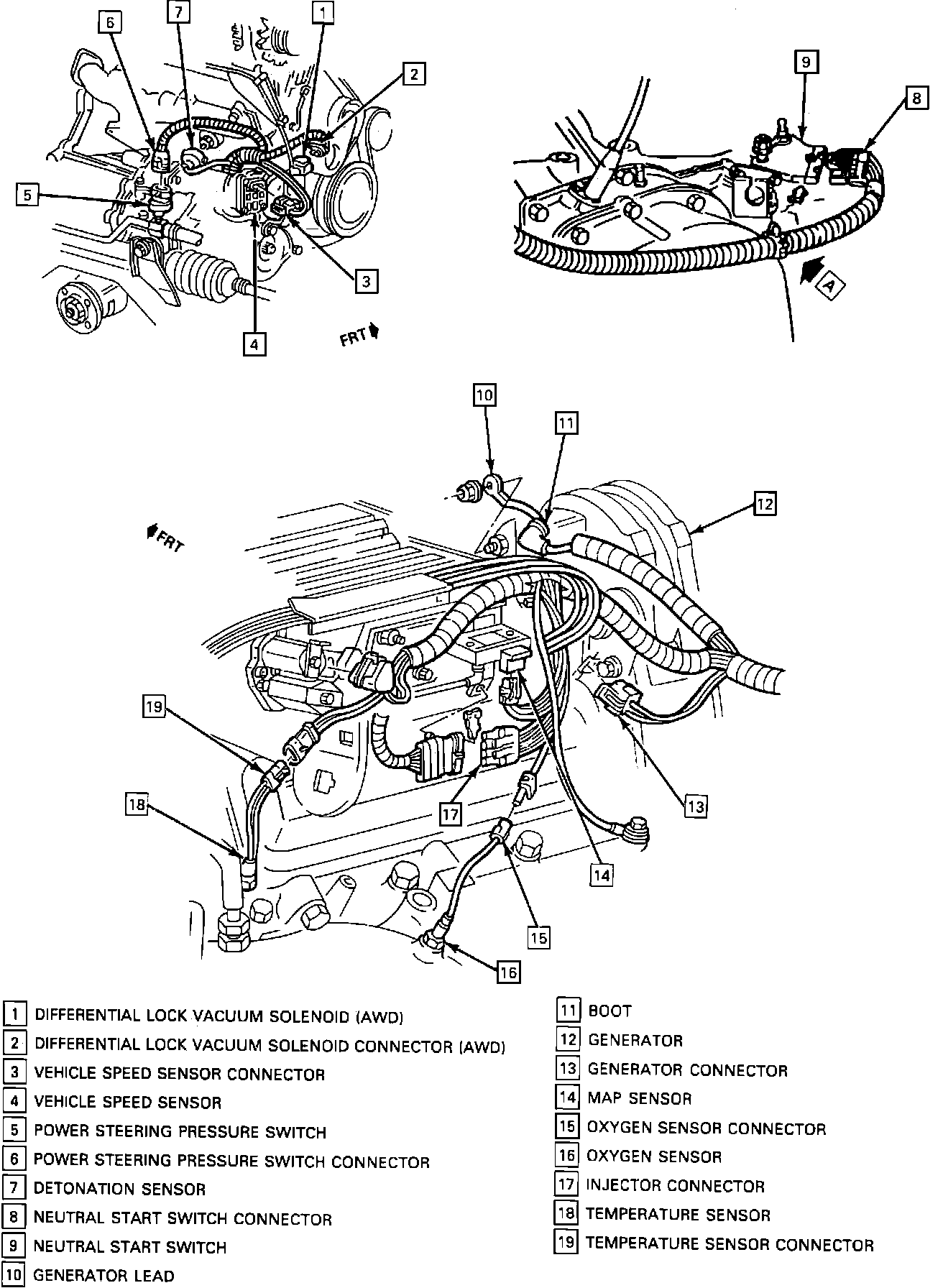

Pictorial View:

1. DIFFERENTIAL LOCK VACUUM SOLENOID (AWD)
2. DIFFERENTIAL LOCK VACUUM SOLENOID CONNECTOR (AWD)
3. VEHICLE SPEED SENSOR CONNECTOR
4. VEHICLE SPEED SENSOR
5. POWER STEERING PRESSURE SWITCH
6. POWER STEERING PRESSURE SWITCH CONNECTOR
7. DETONATION SENSOR
8. NEUTRAL START SWITCH CONNECTOR
9. NEUTRAL START SWITCH
10. GENERATOR LEAD
11. BOOT
12. GENERATOR
13. GENERATOR CONNECTOR
14. MAP SENSOR
15. OXYGEN SENSOR CONNECTOR
16. OXYGEN CONNECTOR
17. INJECTOR CONNECTOR
18. TEMPERATURE SENSOR
19. TEMPERATURE SENSOR CONNECTOR

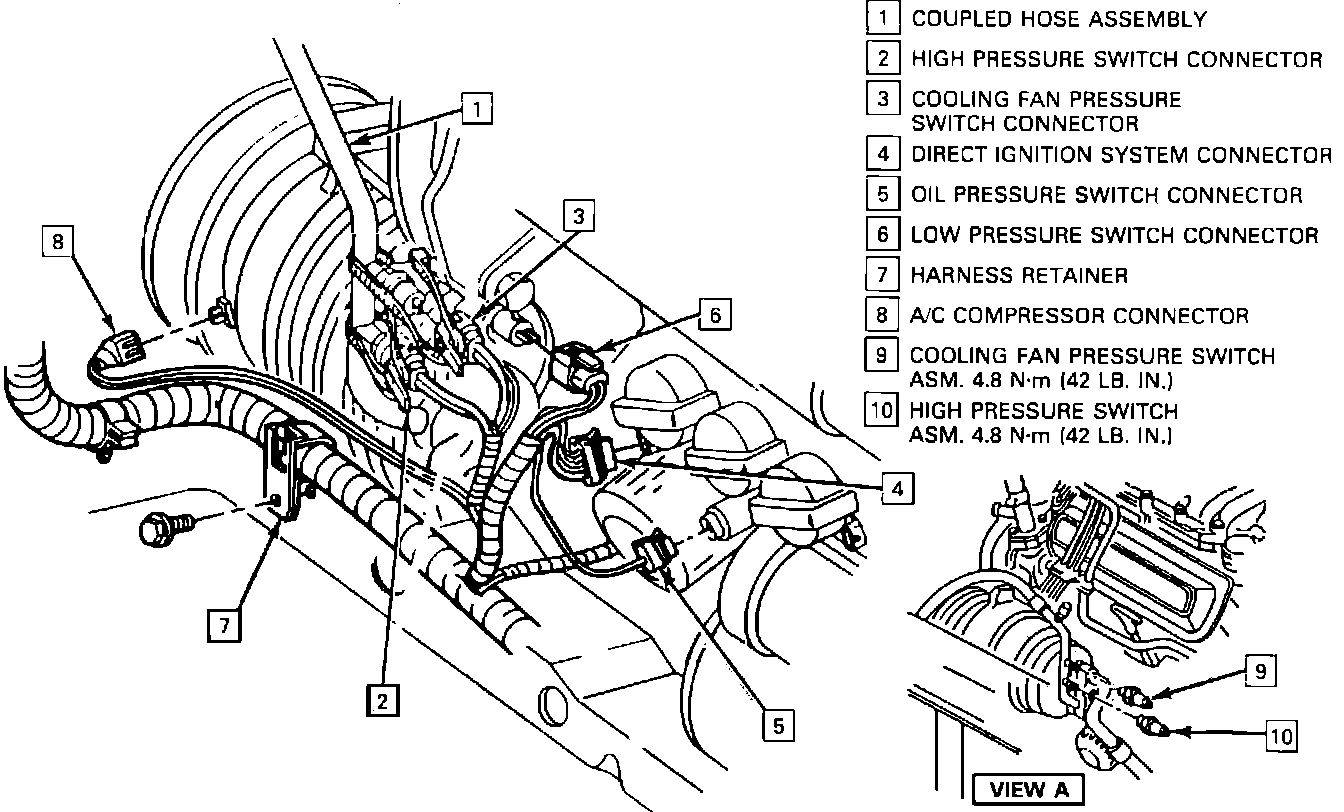

Pictorial View:

1. COUPLED HOSE ASSEMBLY
2. HIGH PRESSURE SWITCH CONNECTOR
3. COOLING FAN PRESSURE SWITCH CONNECTOR
4. DIRECT IGNITION SYSTEM CONNECTOR
5. OIL PRESSURE SWITCH CONNECTOR
6. LOW PRESSURE SWITCH CONNECTOR
7. HARNESS RETAINER
8. A/C COMPRESSOR CLUTCH CONNECTOR
9. COOLING FAN PRESSURE SWITCH
10. HIGH PRESSURE SWITCH

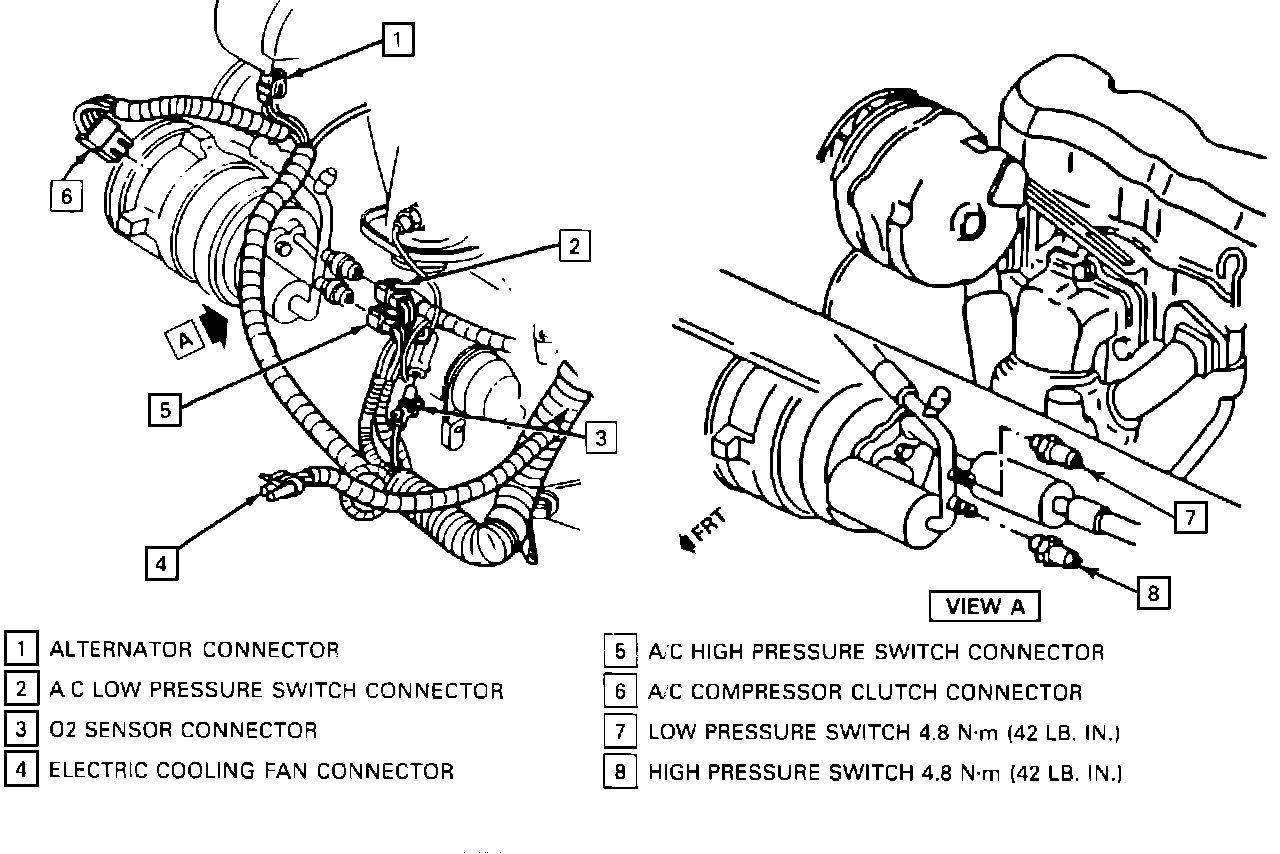

Pictorial View:

1. ALTERNATOR CONNECTOR
2. A/C LOW PRESSURE SWITCH CONNECTOR
3. O2 SENSOR CONNECTOR
4. ELECTRIC COOLING FAN CONNECTOR
5. A/C HIGH PRESSURE SWITCH CONNECTOR
6. A/C COMPRESSOR CLUTCH CONNECTOR
7. LOW PRESSURE SWITCH
8. HIGH PRESSURE SWITCH
