Grand Prix L4-138 2.3L DOHC QUAD 4
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Exhaust Gas Recirculation (EGR) System
Exhaust Gas Recirculation (EGR) System

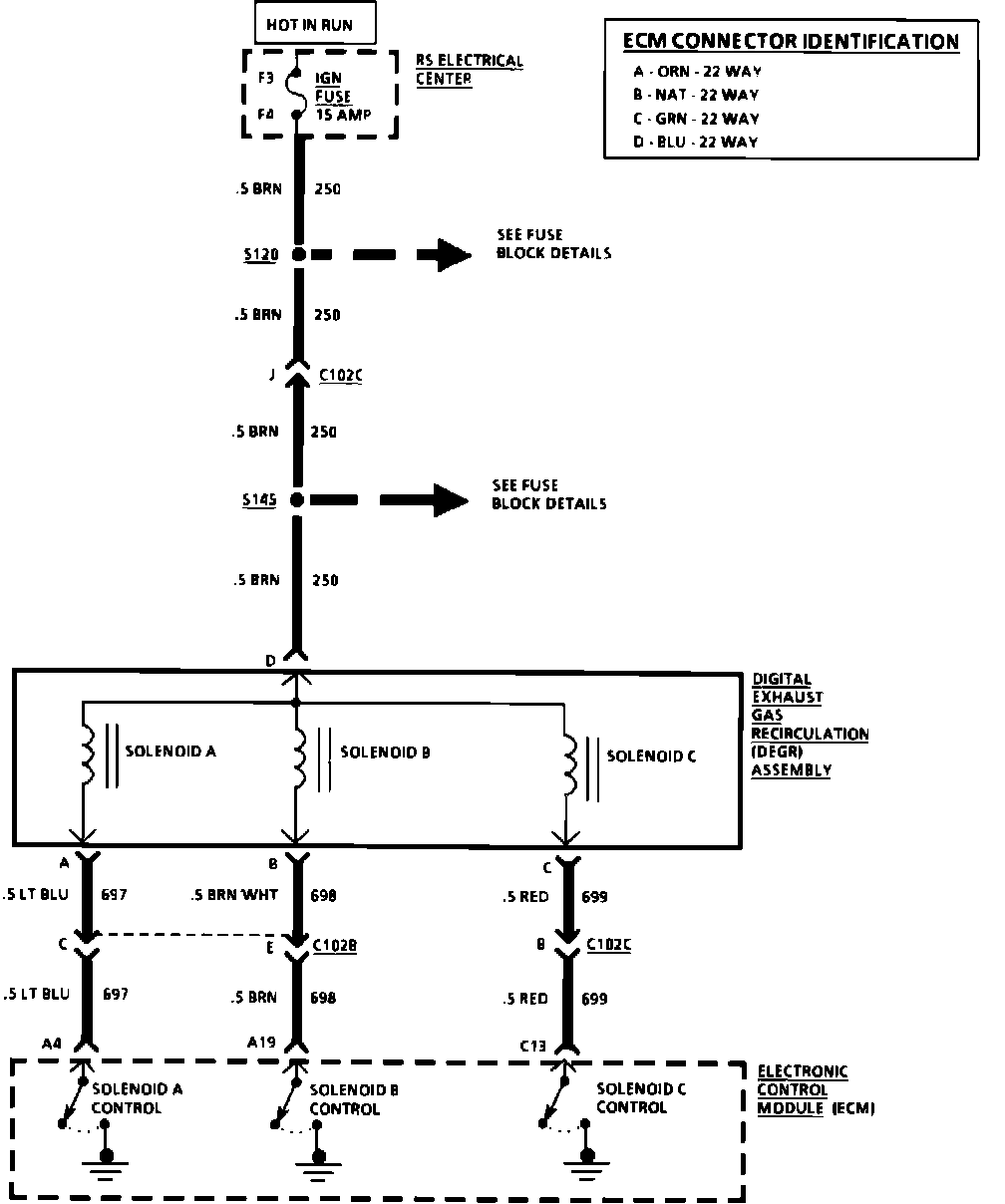

Digital Exhaust Gas Recirculation - V6 VIN T & VIN X:
