Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
1991
>>
Grand Prix V6-191 3.1L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
Initial Inspection and Diagnostic Overview

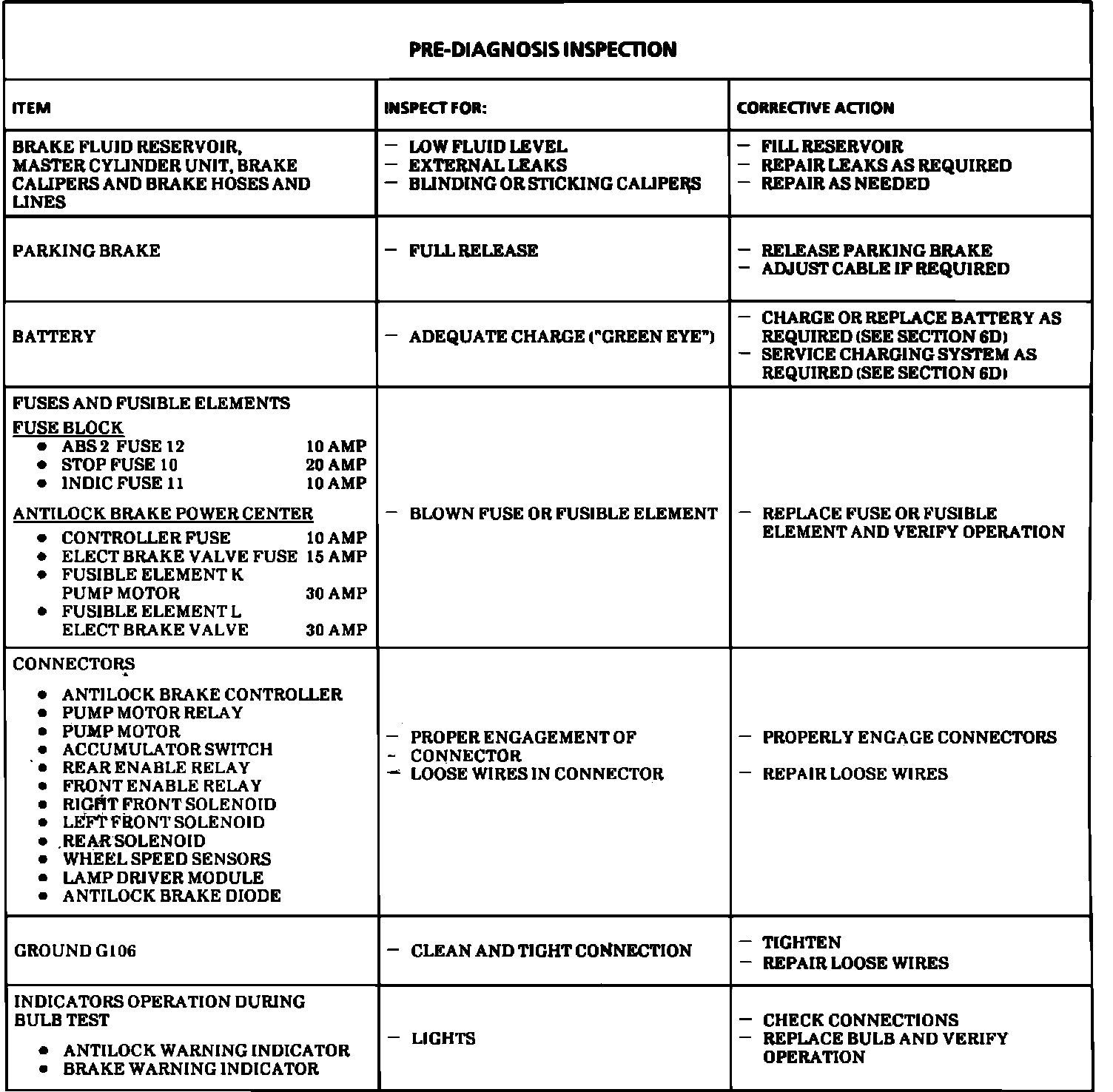

Fig. 2 Pre-diagnosis Inspection Procedure And Corrective Actions:
