Chart G DERM Cannot Communicate With Scan Tool

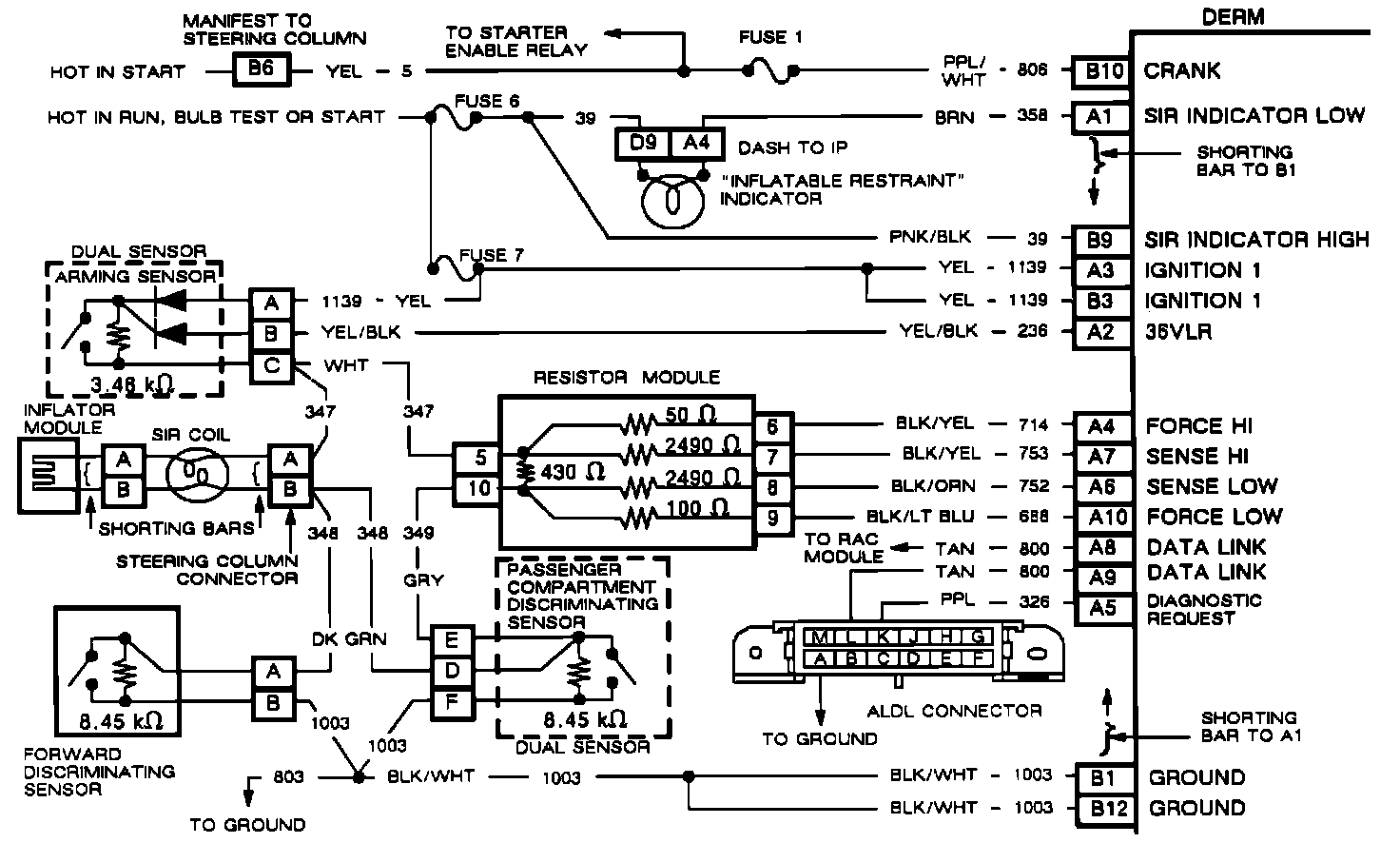

Fig. 644 Chart G, DERM Cannot Communicate With Scan Tool (Part 1 of 2). w/Single Airbag:

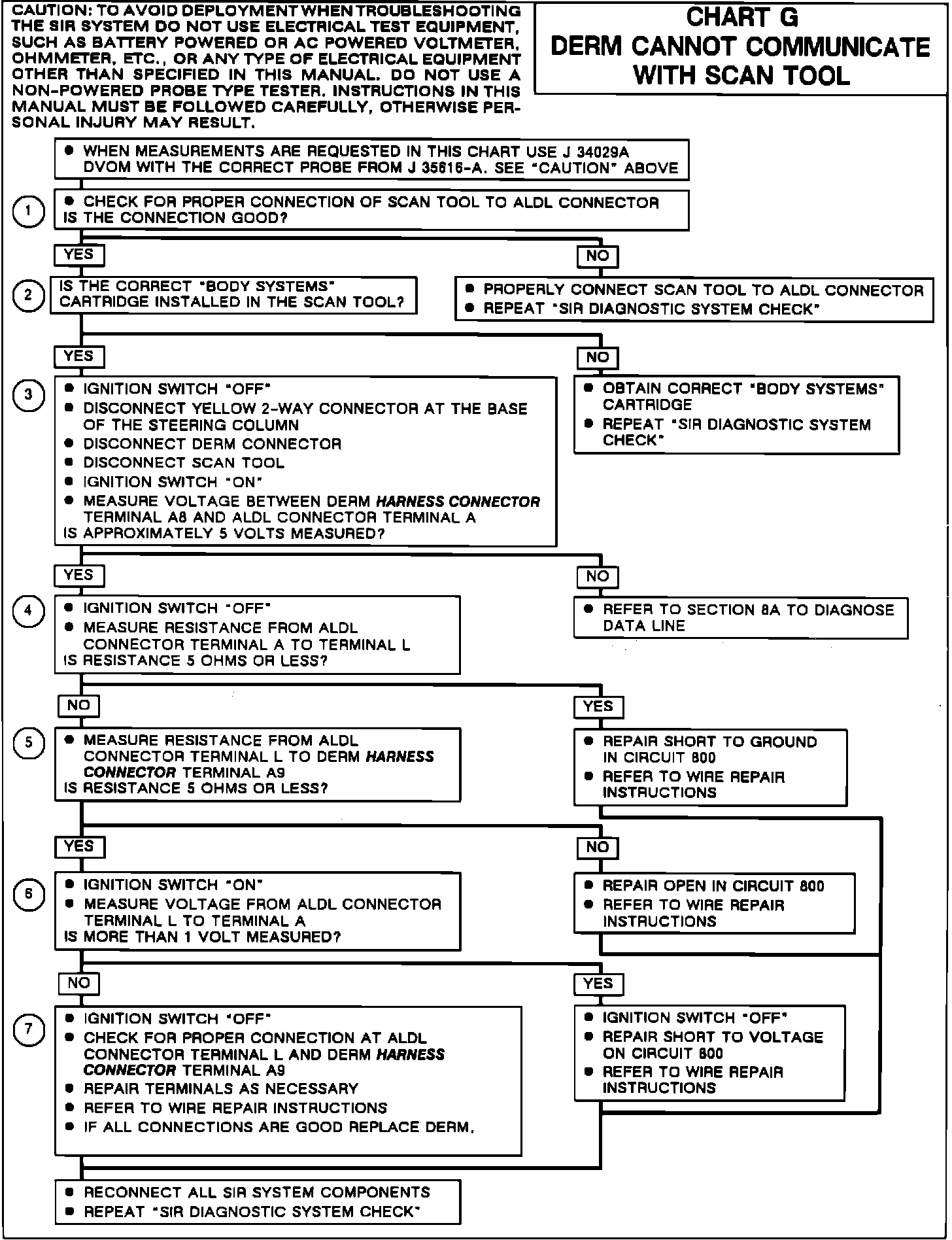

Fig. 644 Chart G, DERM Cannot Communicate With Scan Tool (Part 2 of 2). w/Single Airbag:
