Chart 7 Wipers Will Not Turn Off
Chart 7 Wipers Will Not Turn Off

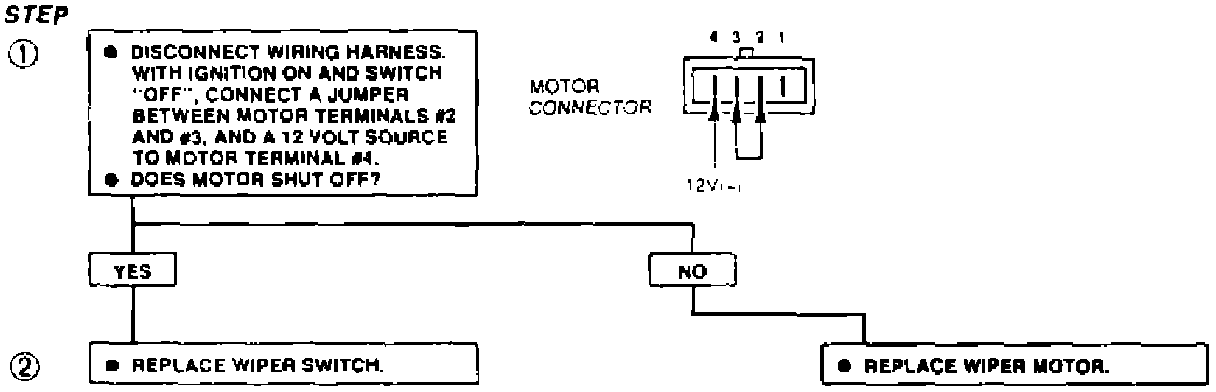

Fig. 13 Chart 7 - Motor Will Not Shut Off:
