Air Conditioning Compressor Control

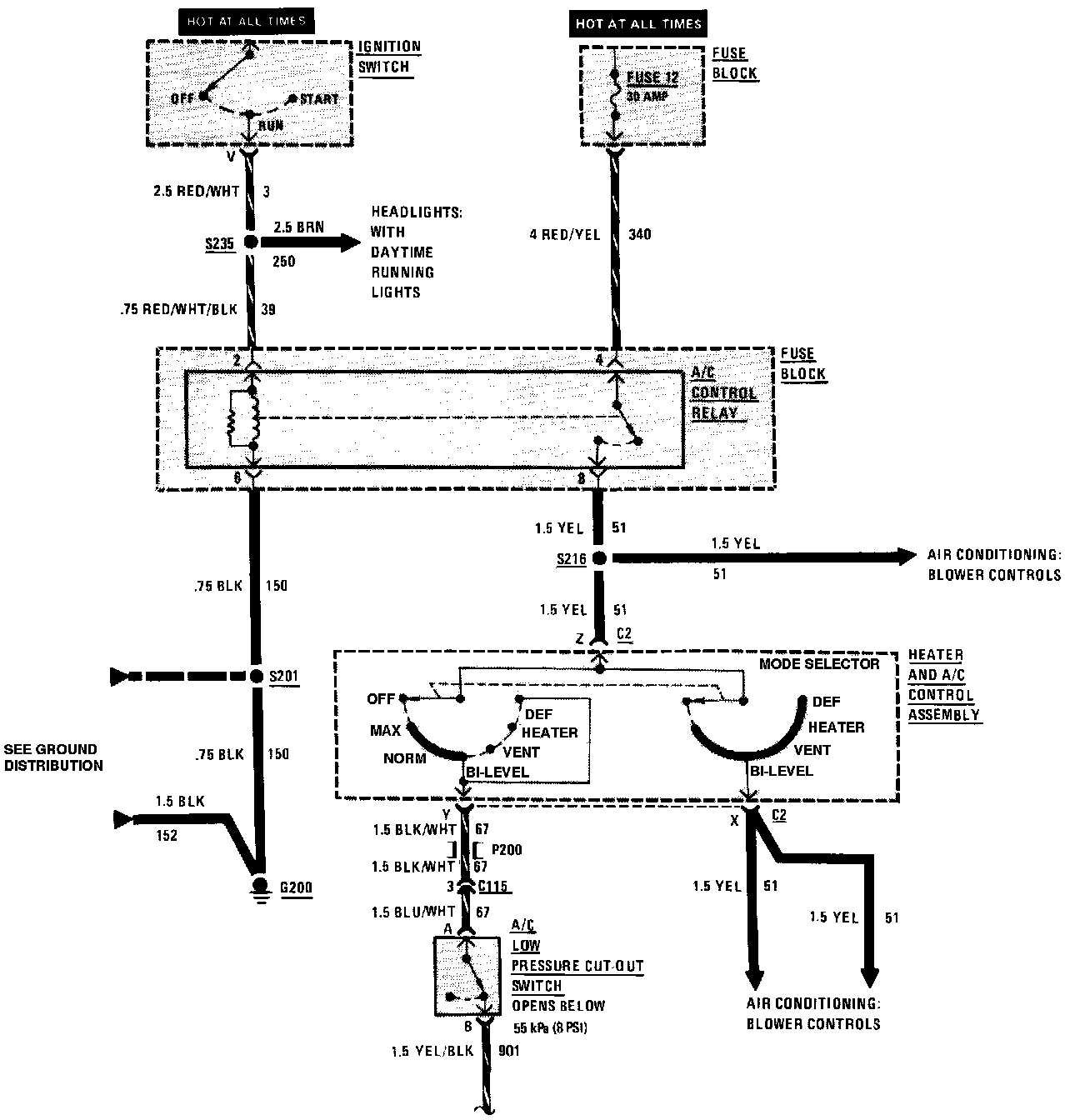

Wiring Diagrams: Air Conditioning Compressor Controls C60 Part 1:

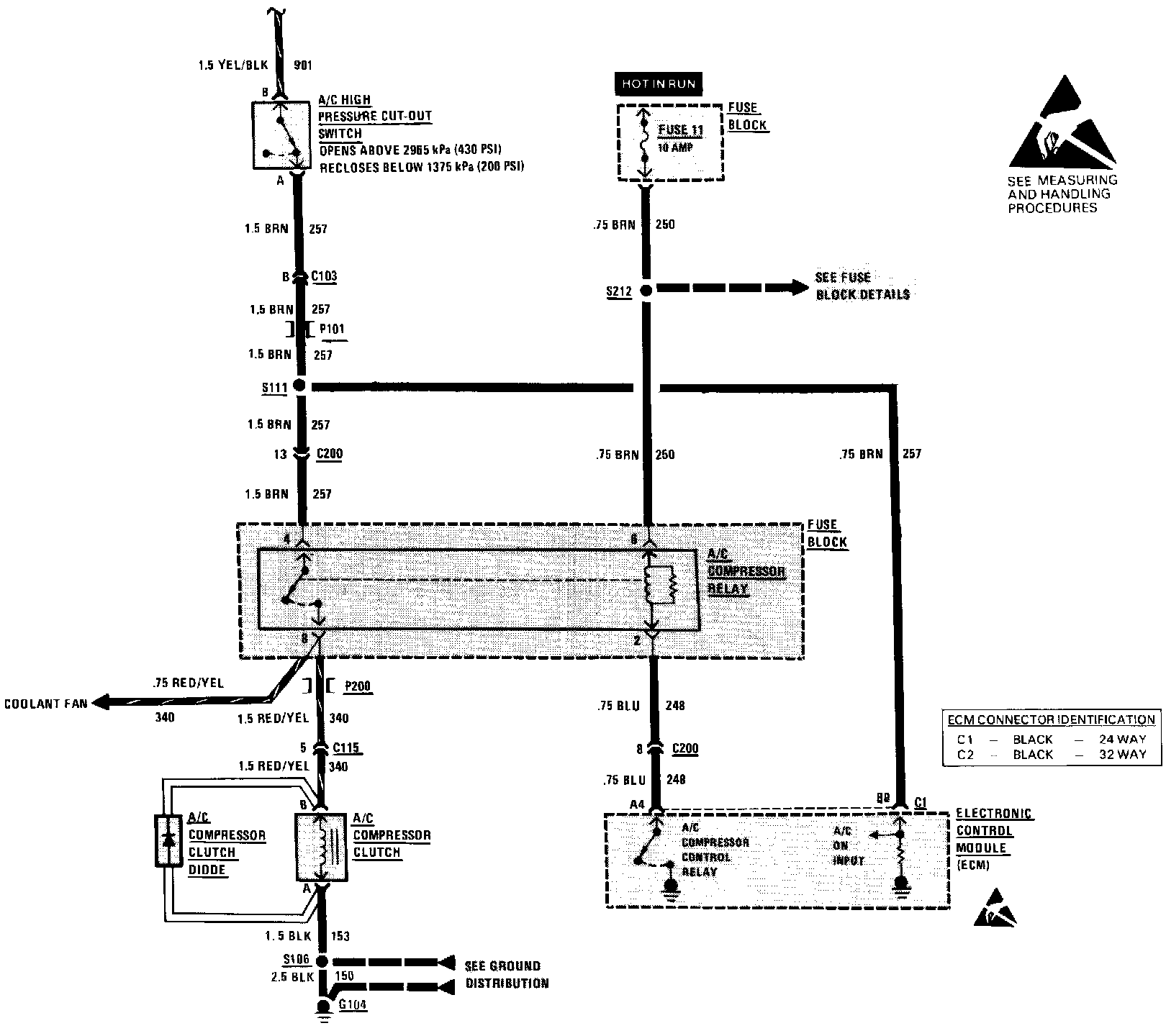

Wiring Diagrams: Air Conditioning Compressor Controls C60 Part 2:
