Instrument Panel Cluster Trim Plate Replacement

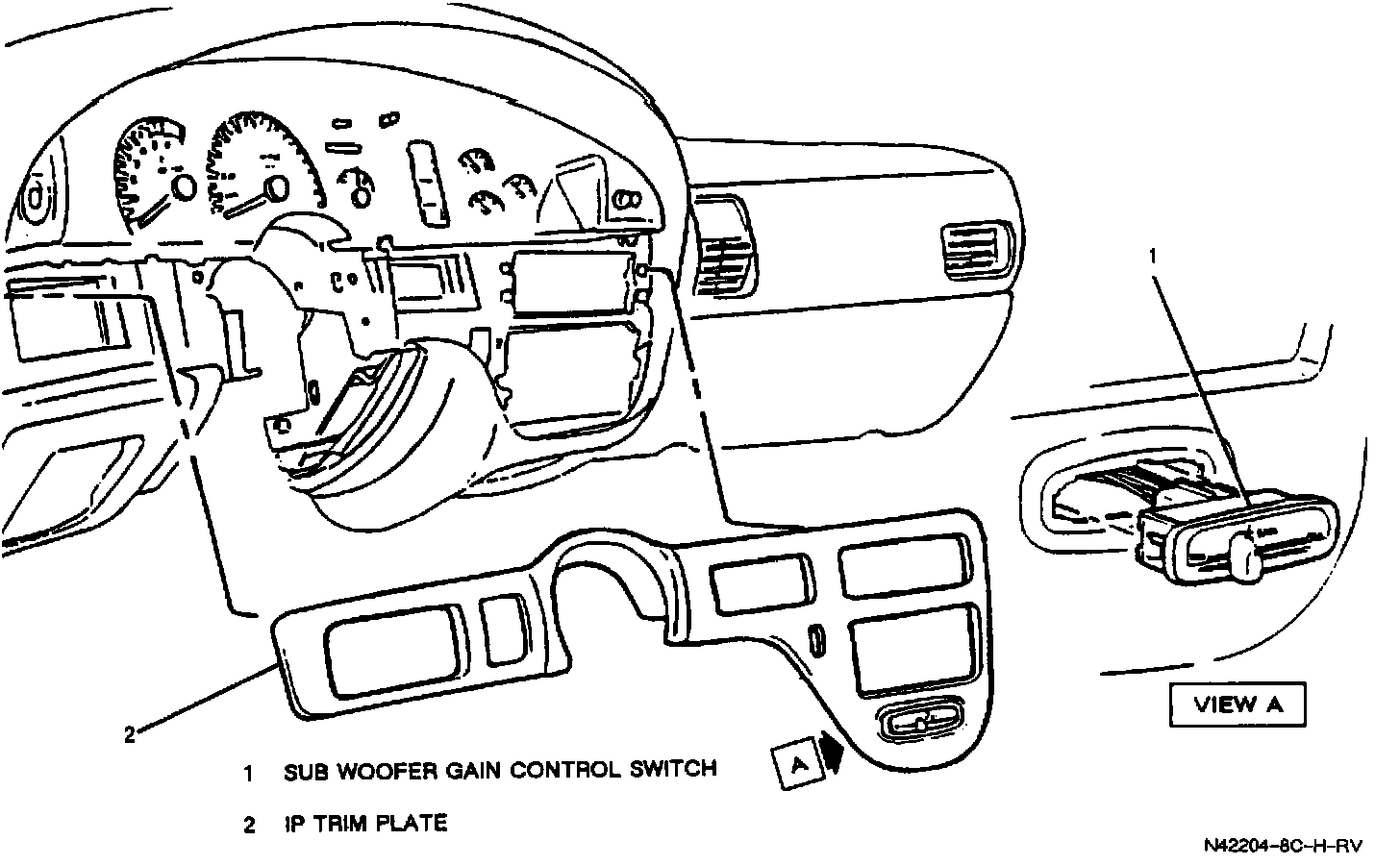

IP Trim Plate:

Remove or Disconnect

1. IP trim plate, by prying out carefully.
^ Pull IP trim plate up, then rearward.
2. Sub-woofer gain control switch connector (if equipped).

Install or Connect

1. Sub-woofer gain control switch connector (if equipped).
2. IP trim plate, press into place.
