Pontiac
>>
1993
>>
Firebird V8-350 5.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Injectors
Fuel Injectors

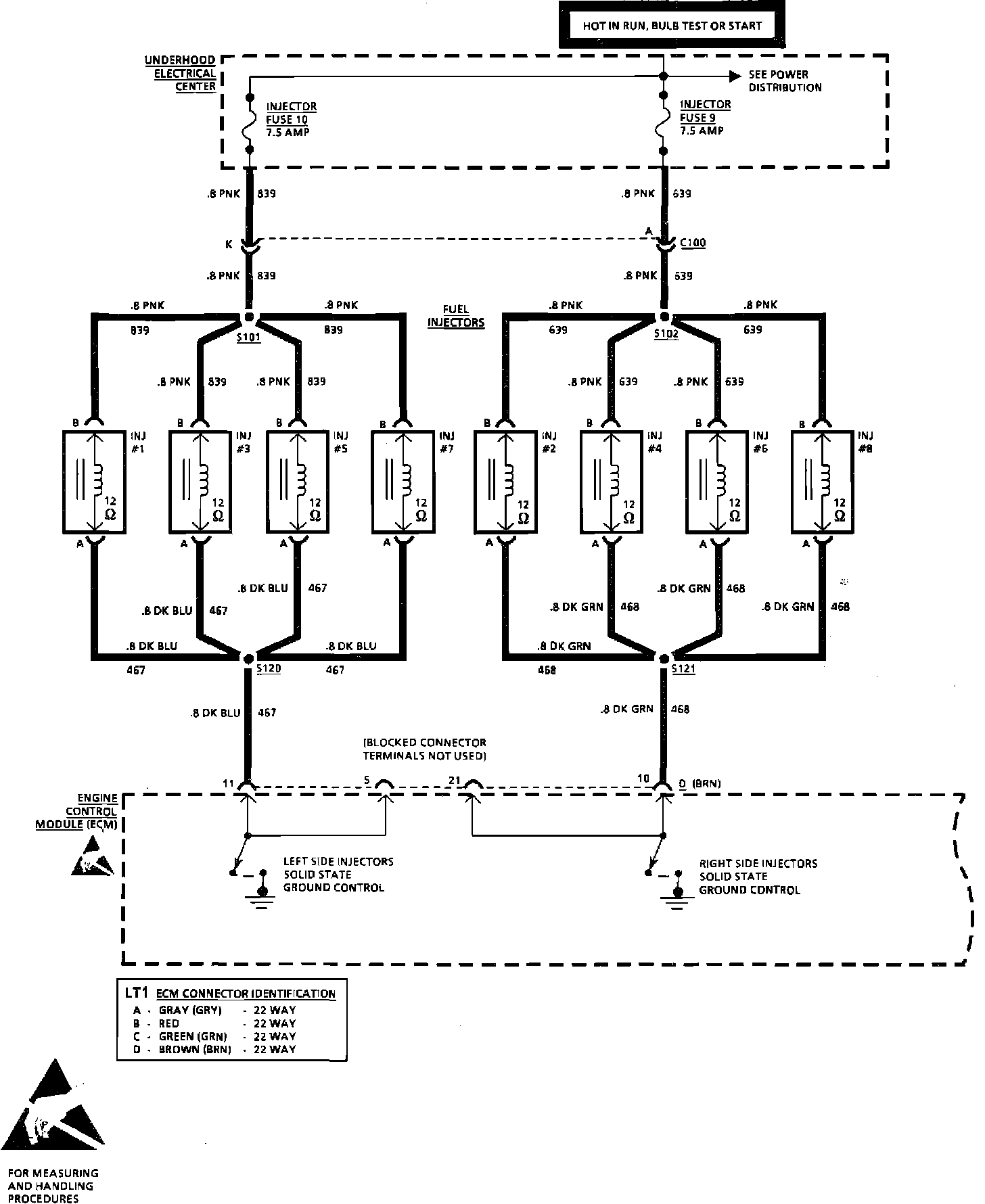

Fuel Injector Wiring Diagram:
