Vacuum and Vapor Hose Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
System Diagram

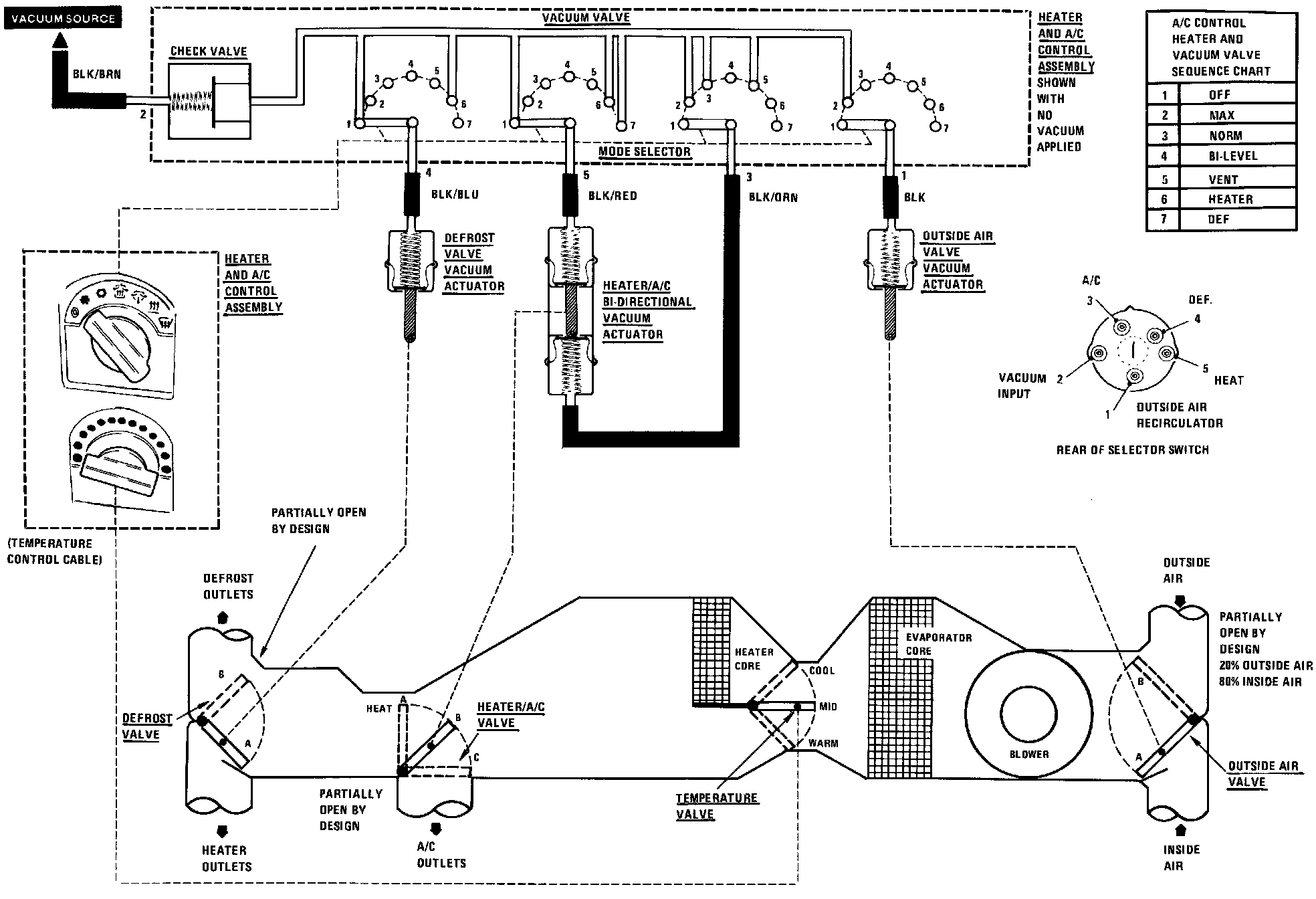

HVAC: Air Delivery And Temperature Control:
