Pontiac
>>
1993
>>
Lemans FWD L4-98 1.6L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Tachometer and Indicators
Tachometer and Indicators

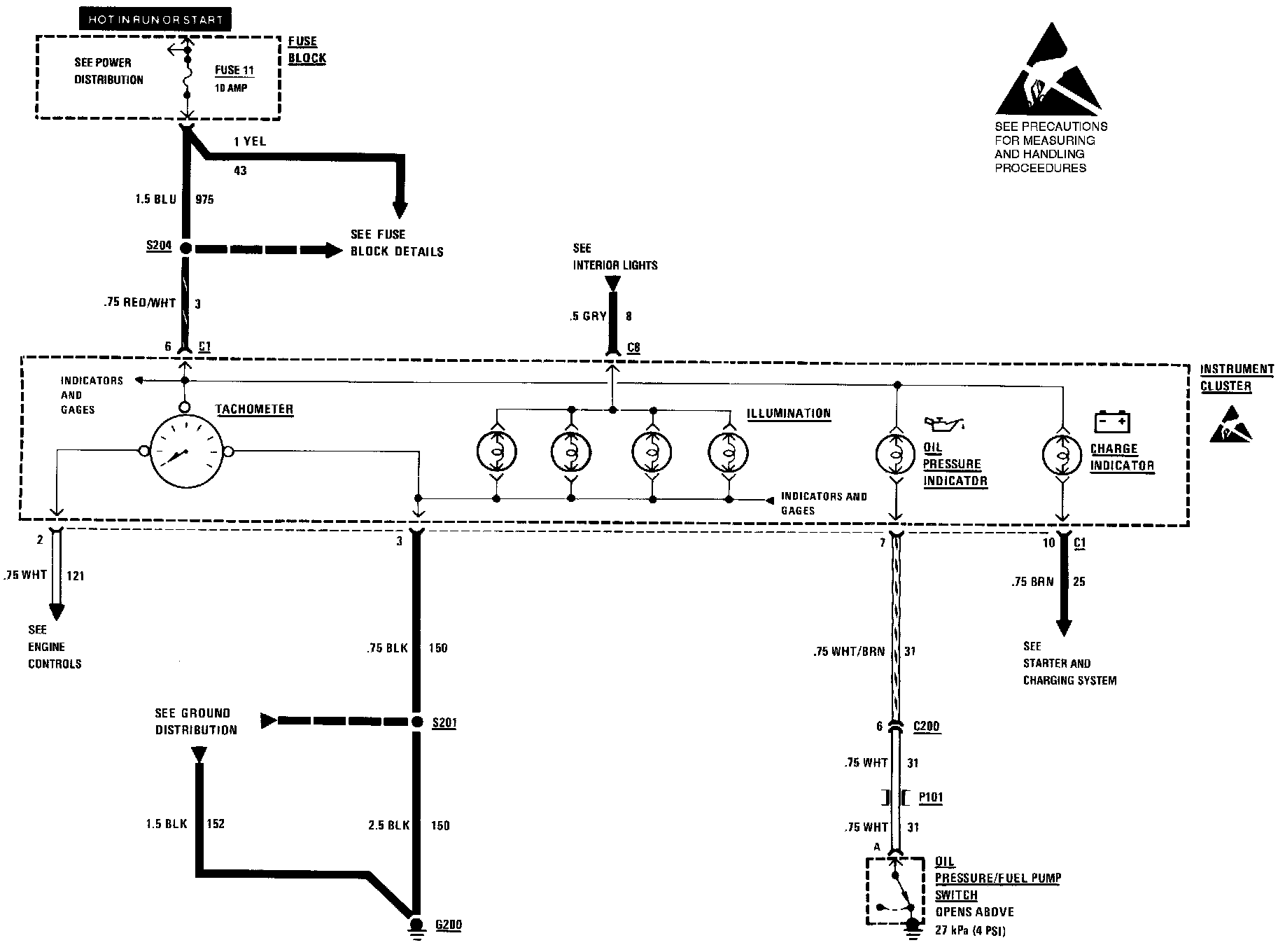

Instrument Cluster: With Gages (Tachometer And Indicators):
