Pontiac
>>
1994
>>
Bonneville V6-3800 3.8L Supercharged
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
Power Seats
Power Seats

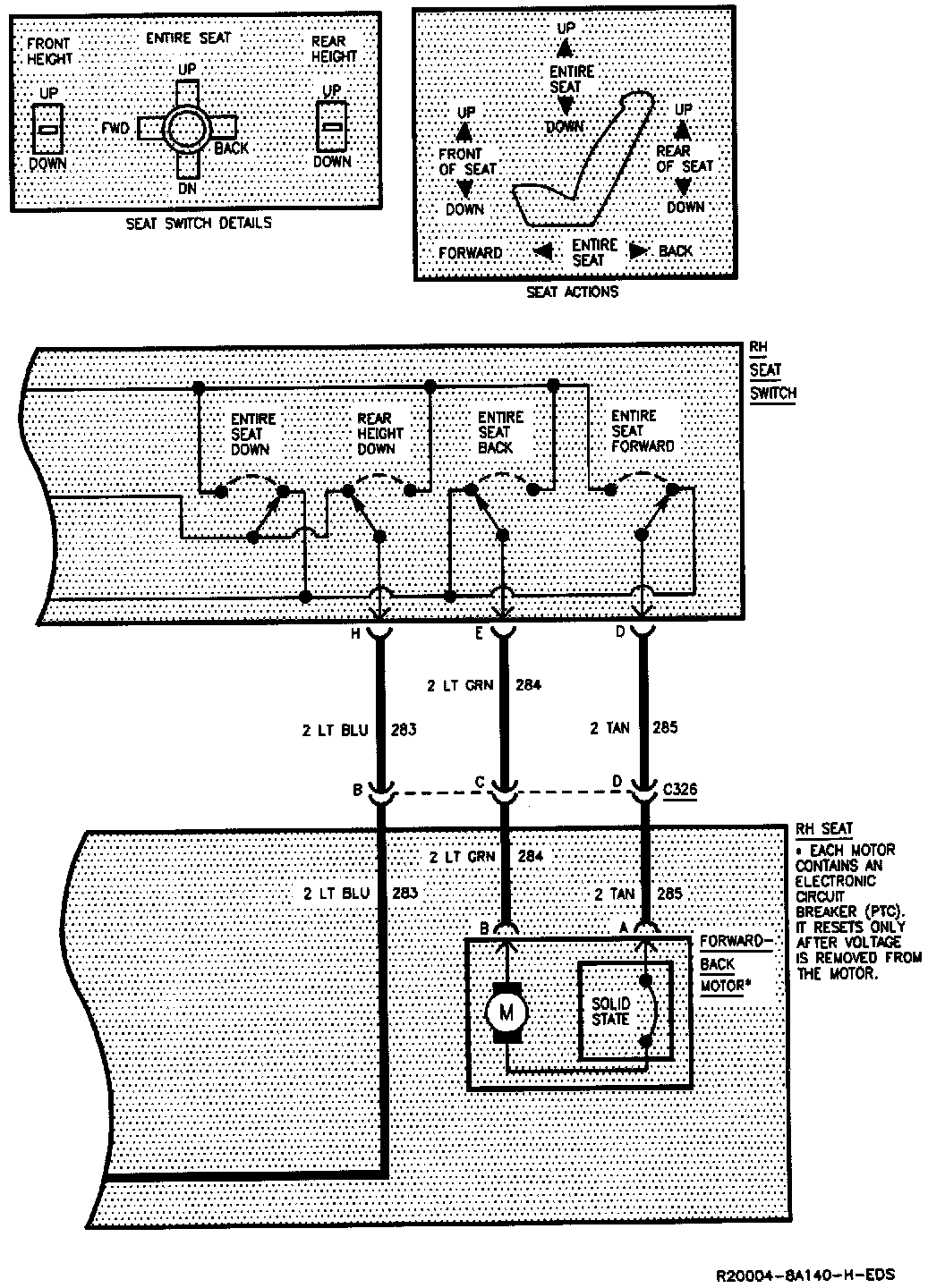

Power Seats (AG1) (Part 1 Of 2):

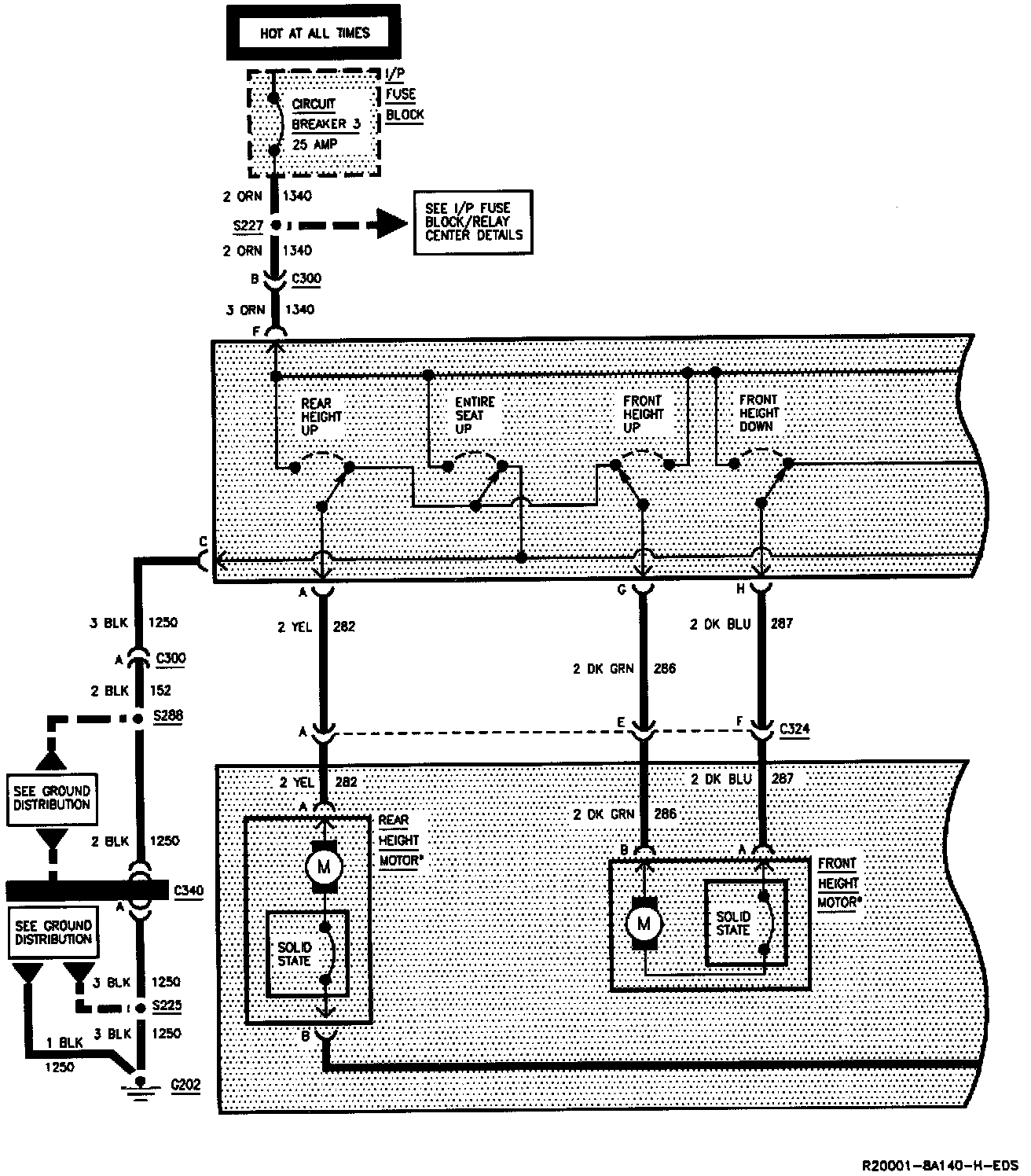

Power Seats (AG1) (Part 2 Of 2):

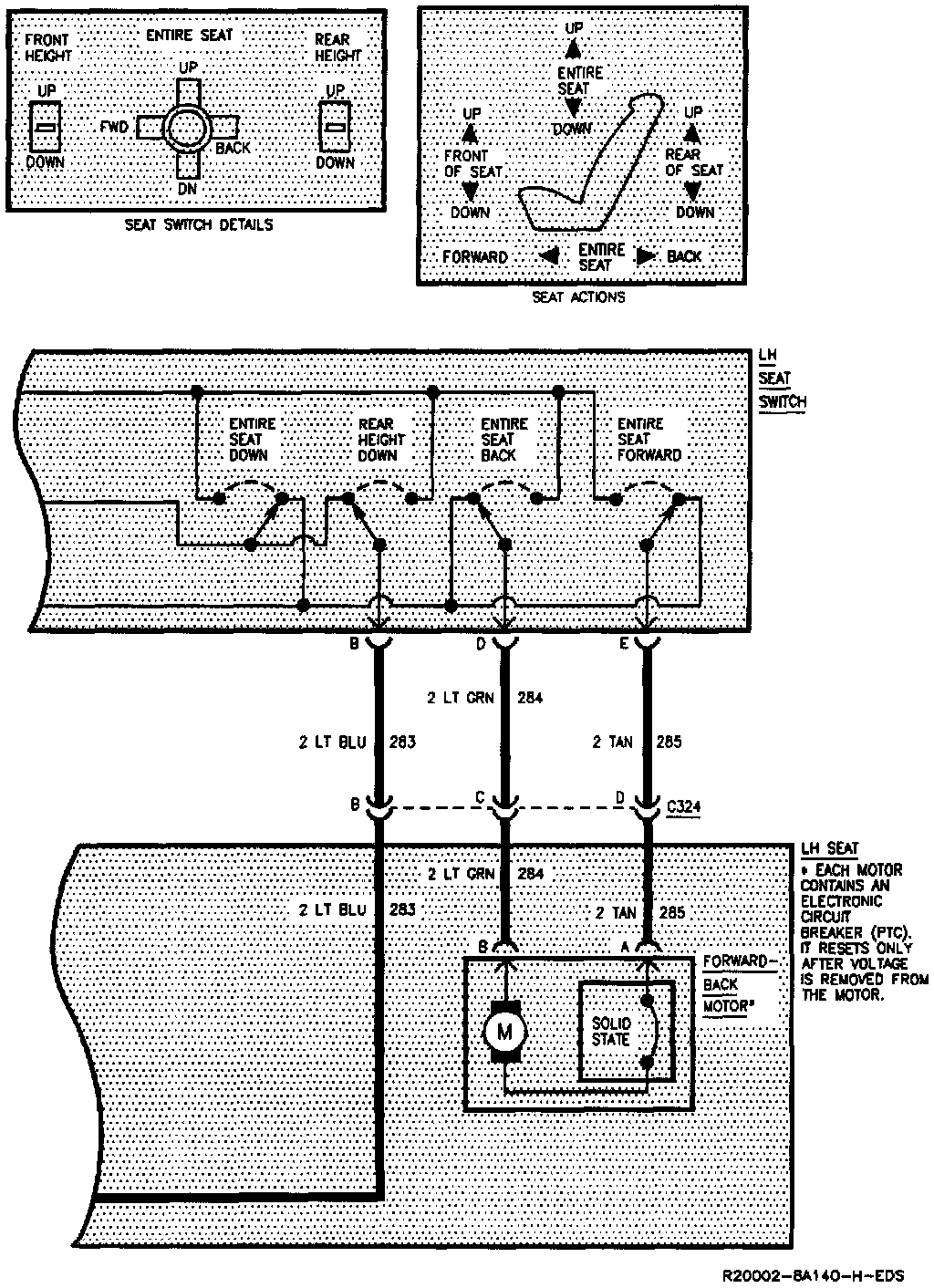

Power Seats (AG2) (Part 1 Of 2):

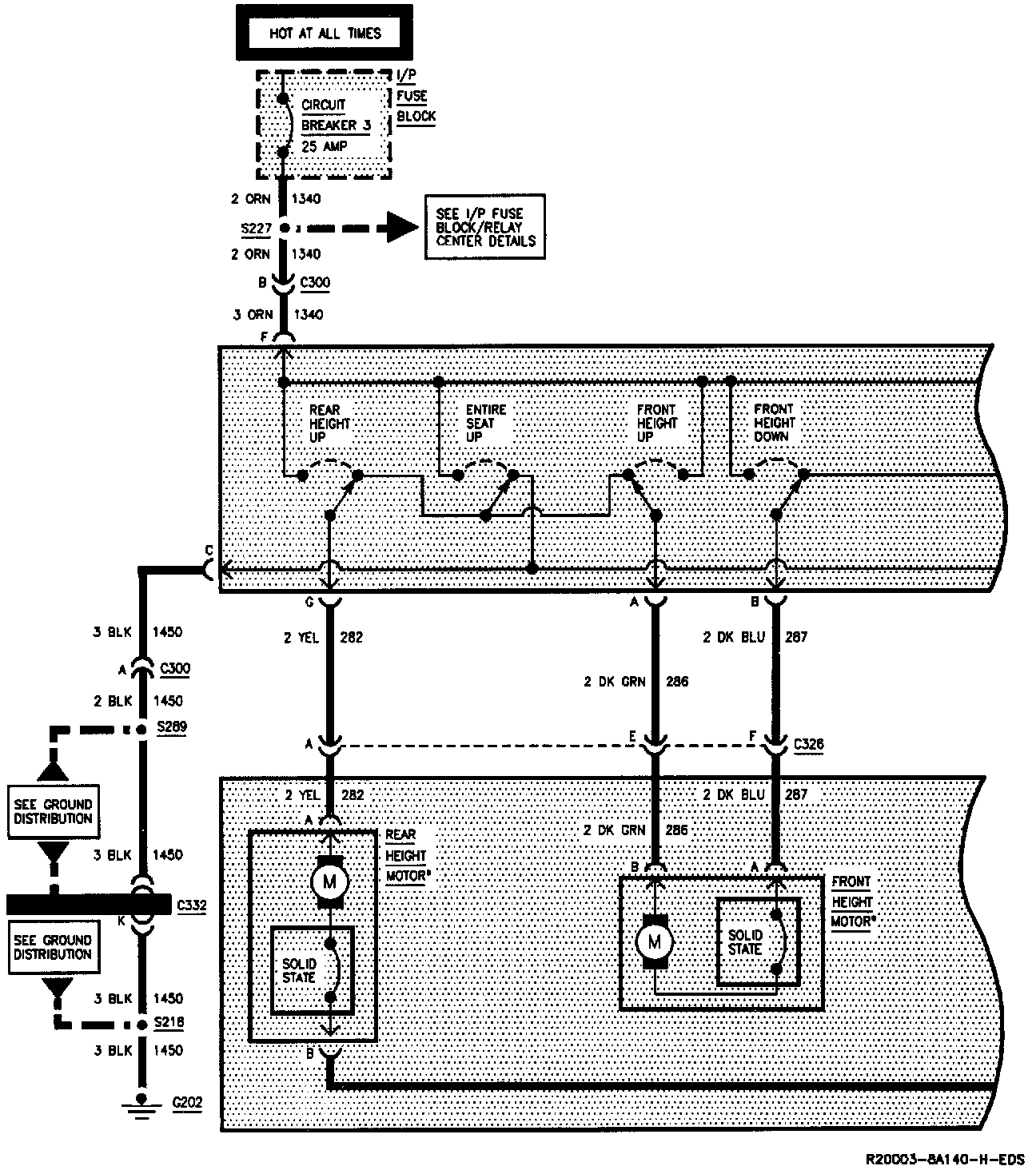

Power Seats (AG2) (Part 2 Of 2):
