Cylinder Head Bolt Torque and Sequence

Cylinder Head Bolts

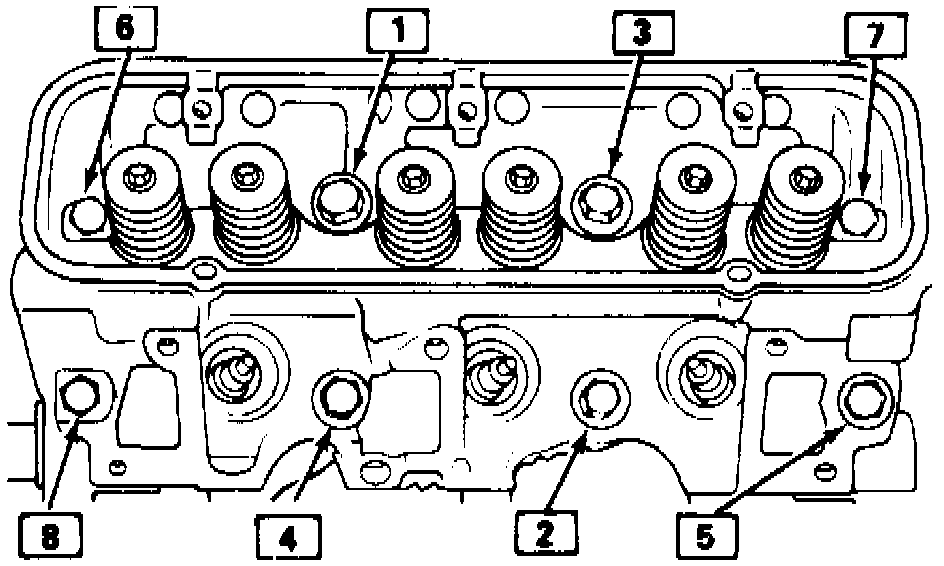

Fig. 5 Cylinder Head Tightening Sequence:

In the sequence shown in figure 5:

^ Torque bolts to 35 ft. lbs.
^ Tighten each bolt an additional 130°
^ Tighten center four bolts an additional 30°
