Home
>>
Pontiac
>>
1994
>>
Bonneville V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Sensor/Switch
>>

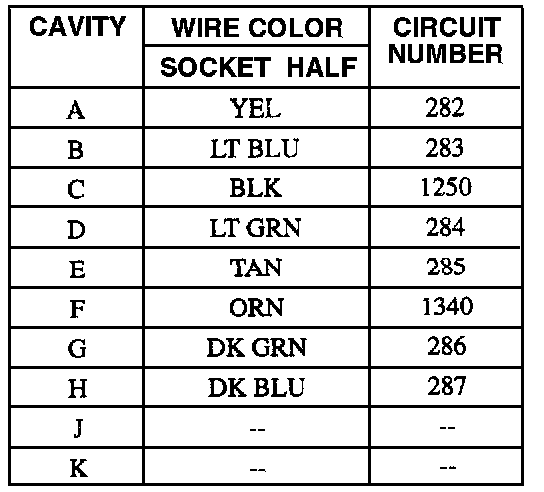

Pinout Description
Pinout Description
LH Seat Switch:
