Forced Entry

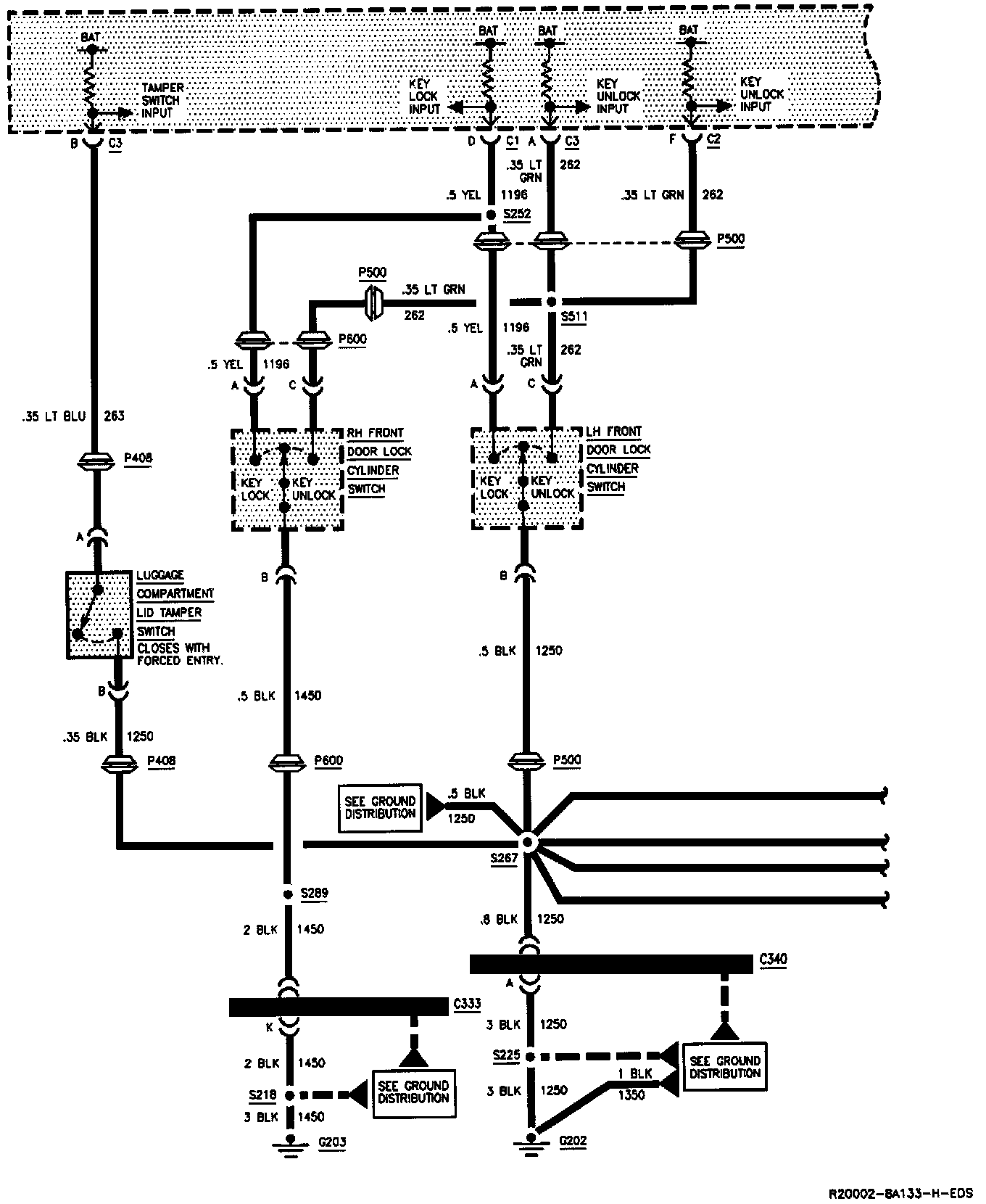

Forced Entry (AU6) (Part 1 Of 4):
Forced Entry (AU6) (Part 2 Of 4):
Forced Entry (UA6) (Part 3 Of 4):
Forced Entry (UA6) (Part 4 Of 4):
