Home >> Pontiac >> 1994 >> Bonneville V6-3800 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Brake Warning Indicator >> Gauges Cluster or Digital Cluster

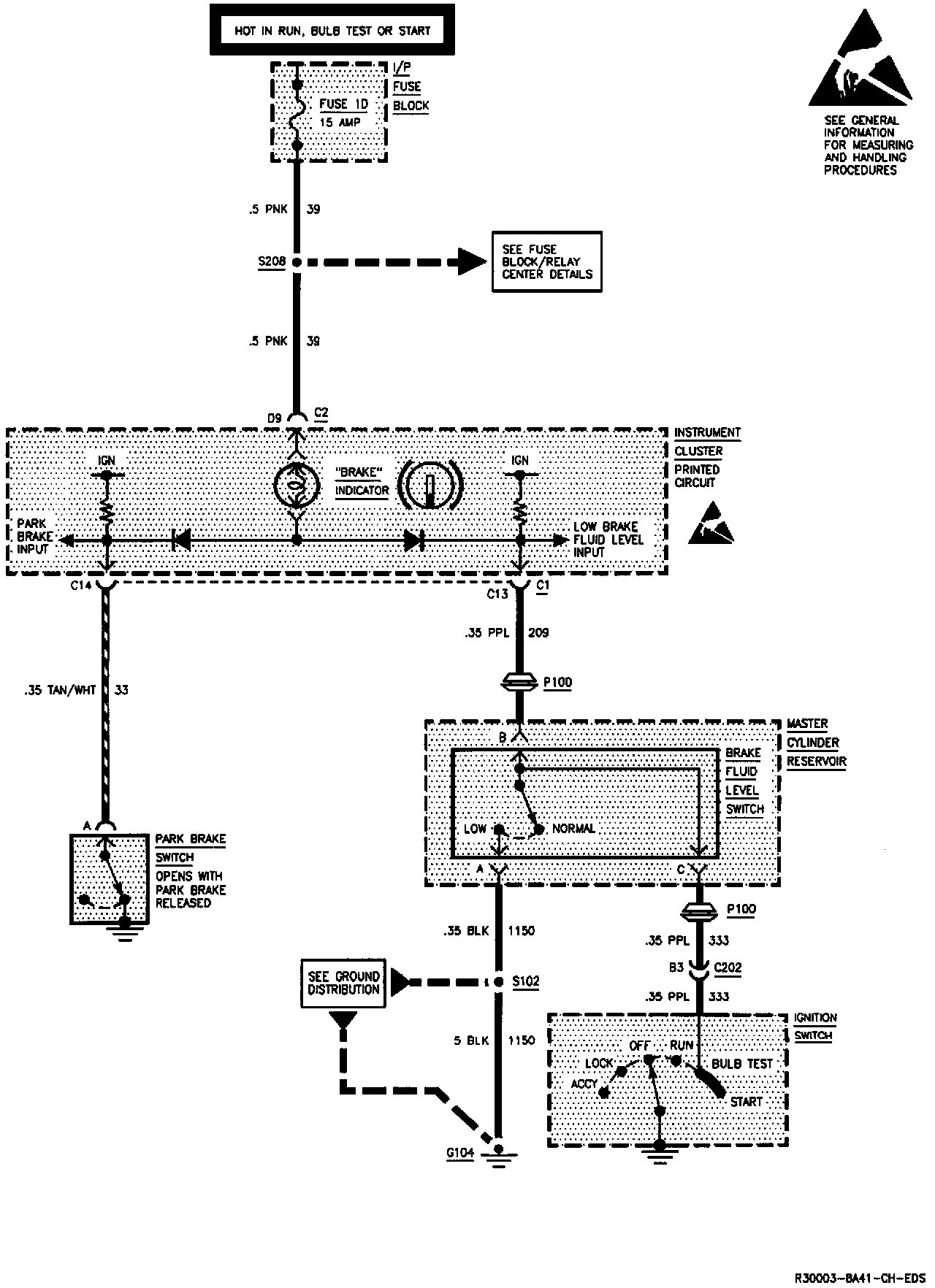

Gauges Cluster or Digital Cluster

Gages Cluster (UH8) Or Digital Cluster (U2A):
